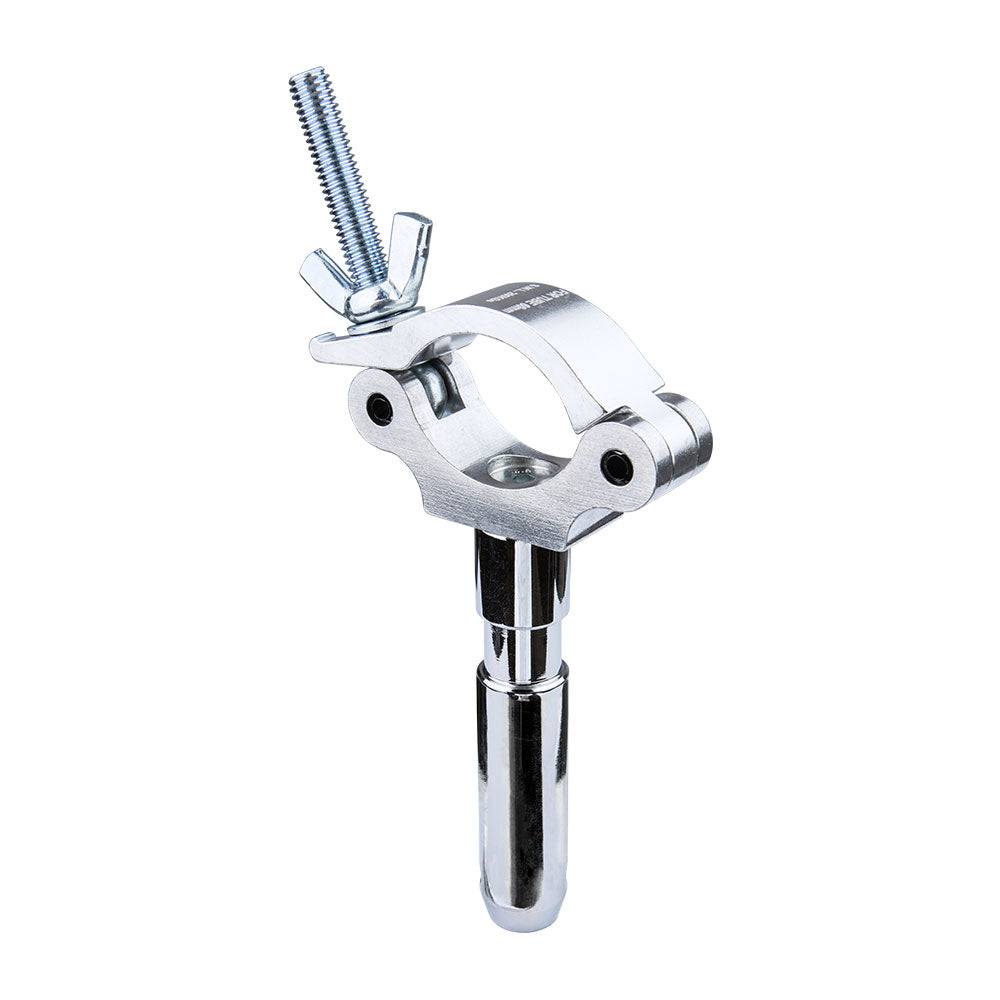

The KUPO KCP-864 Slim Type Mighty 28 mm Spigot Coupler adds a 28 mm TV spigot to larger 51 to 60 mm tube while keeping the coupler body more compact. It carries a 200 kg WLL and is intended for receiver-based support hardware on larger pipe.
Why It Matters
KCP-864 is for the buyer who needs the Mighty tube range but not a bulky body. It keeps the 28 mm output of the larger-tube spigot coupler while reducing the profile around the pipe, useful when space or rig neatness matters.
Key Features
Slim Mighty body provides a lower-profile coupler for 51 to 60 mm tube
28 mm TV spigot supports compatible receiver-based support hardware
High-tensile aluminum extrusion gives the coupler a strong production-ready body
Captive-top bolt during handling
200 kg WLL supports rated larger-tube spigot applications
Additional Technical Notes
Mounting Detail: Captive top on threaded bolt to help retain wing nut
Applications
Use it for larger pipe rigs, receiver-based hardware, and goalpost-style examples where a compact 28 mm spigot coupler is preferred on 51 to 60 mm tube.
Compatibility
This is the slim-type 28 mm Mighty version. KCP-854 is the non-slim 28 mm Mighty model, and KCP-867 is the slim-type 16 mm stud version.
Frequently Asked Questions
What makes KCP-864 a Mighty coupler?
It fits larger 51 to 60 mm tube, rather than only standard 48 to 51 mm tube.
What makes it slim type?
The body is a lower-profile version, useful where the rig benefits from more compact hardware around the tube.
Which sister model has a 16 mm stud?
KCP-867 is the slim-type Mighty version with a 16 mm baby stud.
