Overview

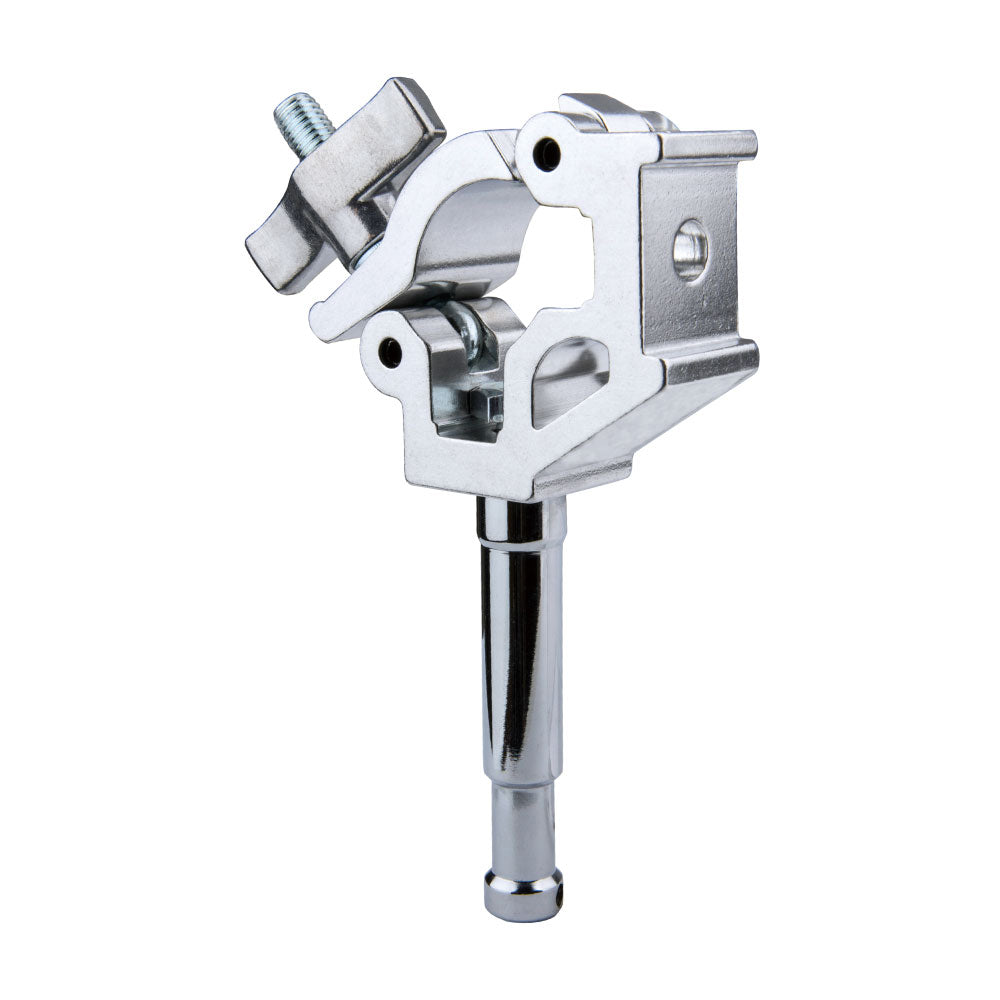

The KUPO KCP-866 Nugget 16 mm Stud Coupler creates a baby-pin mounting point on smaller 32 to 38 mm tubes. It is made from high-tensile aluminum extrusion and carries a 100 kg WLL for lightweight luminaires and grip accessories on compact tube structures.

Why It Matters

The Nugget version exists because not every rig is built from 48 to 51 mm truss. KCP-866 gives narrow pipe, compact lighting frames, and small support rails a proper 16 mm stud output instead of forcing a standard coupler onto the wrong tube size.

Key Features

• 32 to 38 mm tube compatibility is the defining difference from standard truss couplers
• 16 mm baby stud supports lightweight luminaires and grip accessories
• High-tensile aluminum extrusion keeps the small coupler strong and practical
• Captive-top bolt during handling
• 100 kg WLL keeps the rating clear for the baby-stud application

Additional Technical Notes

• Mounting Detail: Captive top on threaded bolt to help retain wing nut

Applications

Use it for compact lighting frames, small rails, and narrow pipe structures where a 16 mm baby stud needs to be added to 32 to 38 mm tube.

Compatibility

Do not confuse KCP-866 with 48 to 51 mm or 51 to 60 mm stud couplers. Check the smaller 32 to 38 mm tube range before specifying it.
