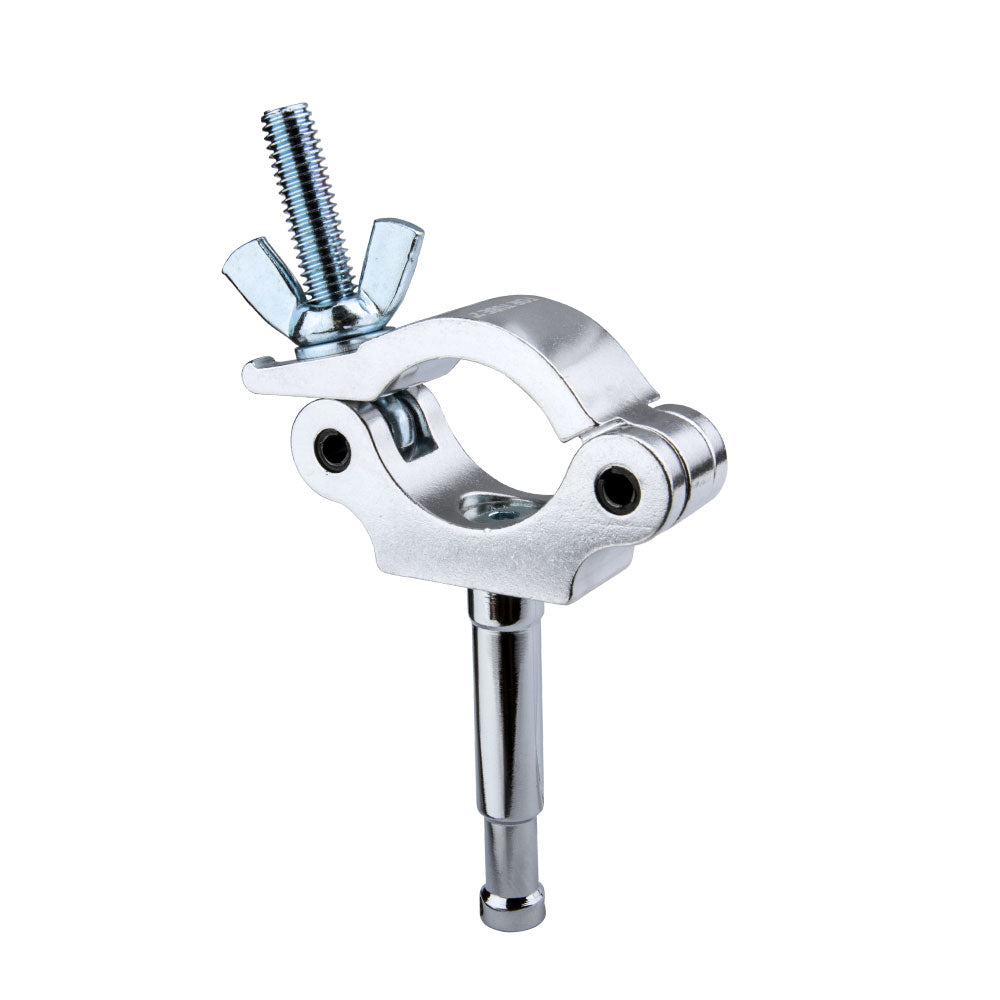

The KUPO KCP-867 Slim Type Mighty 16 mm Stud Coupler adds a standard baby-pin mounting point to larger 51 to 60 mm tube. Its high-tensile aluminum extrusion body is rated to 100 kg and keeps the profile more compact than a bulkier standard design.
Why It Matters
This model is for larger pipe where the mounted accessory still uses a baby receiver. KCP-867 keeps those two facts together, Mighty tube range and 16 mm stud output, without confusing it with 48 to 51 mm handcuff models or the 28 mm Mighty spigot version.
Key Features
51 to 60 mm tube compatibility fits larger pipe structures
16 mm baby stud supports lightweight luminaires, grip heads, and accessories
Slim type Mighty body keeps the coupler more compact around the tube
Captive-top bolt during frequent production use
100 kg WLL keeps the baby-stud rating distinct from 28 mm spigot models
Additional Technical Notes
Mounting Detail: Captive top on threaded bolt to help retain wing nut
Applications
Use it for lightweight fixtures and grip accessories with baby receivers on larger 51 to 60 mm pipe or truss structures.
Compatibility
KCP-864 is the slim-type Mighty 28 mm spigot version. KCP-867 is the slim-type 16 mm baby stud version for the same larger tube range.
Frequently Asked Questions
What is the tube range for KCP-867?
It fits 51 to 60 mm .
Is this a 16 mm or 28 mm coupler?
KCP-867 provides a 16 mm baby stud. KCP-864 is the 28 mm spigot version.
What kind of equipment is it for?
It is for lightweight luminaires, grip heads, and accessories that use a 16 mm baby receiver.
