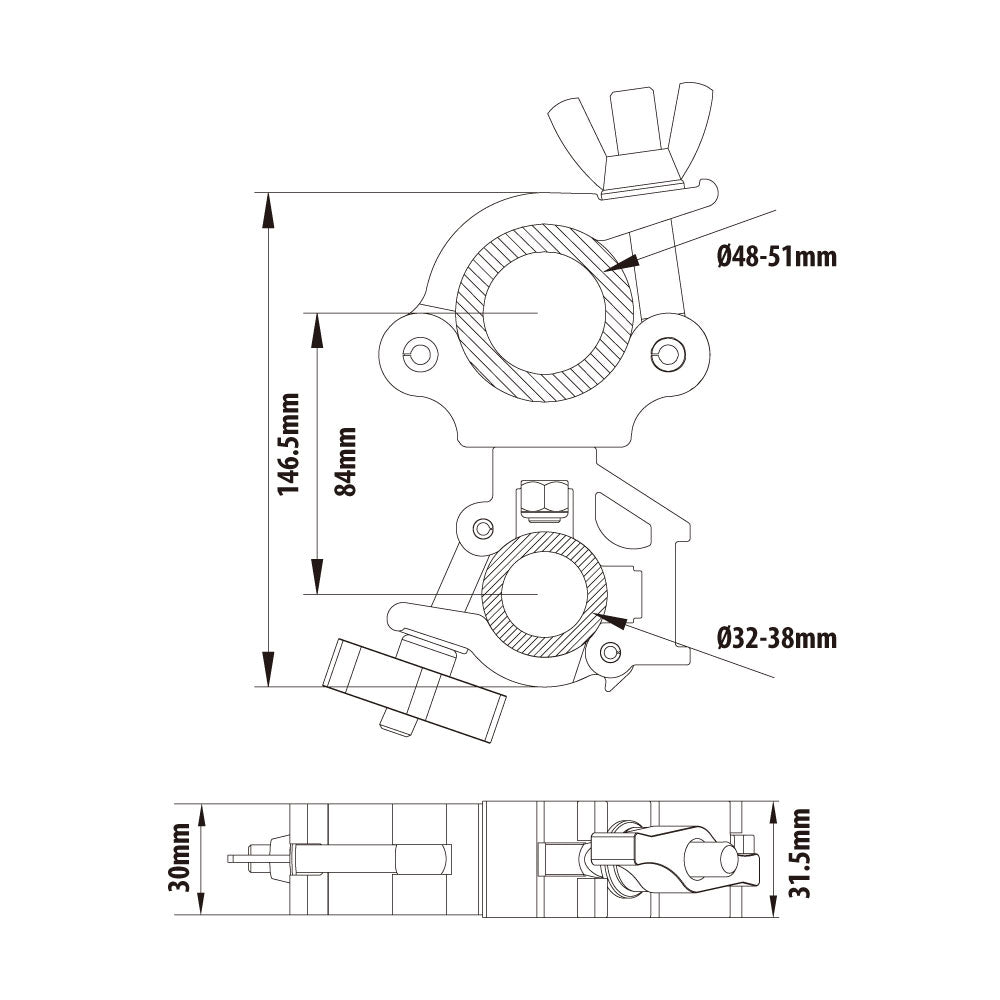

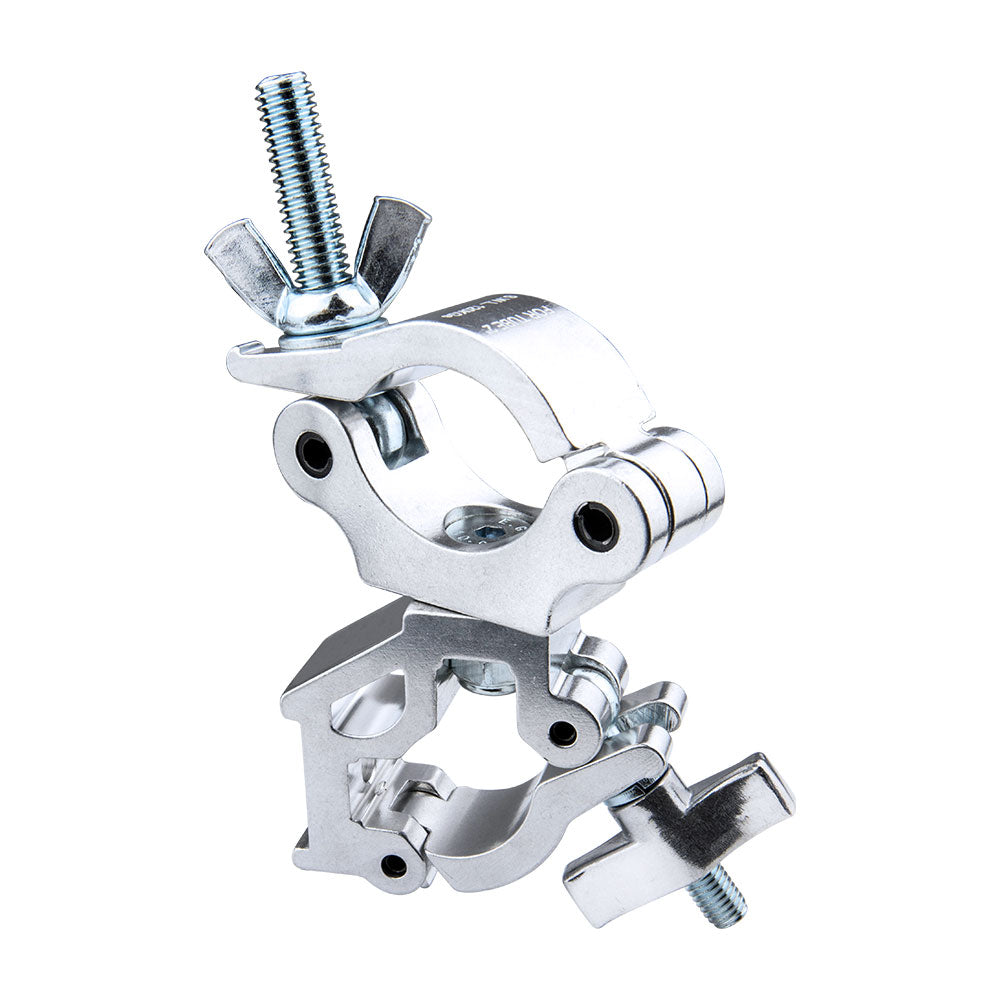

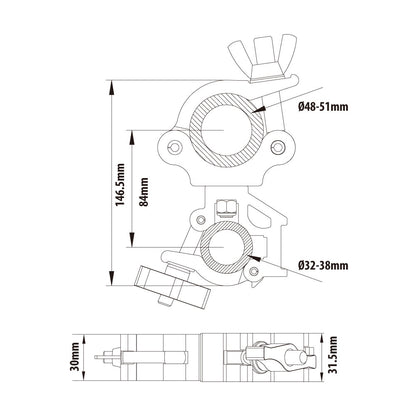

The KUPO KCP-868 Slim Type Swivel Coupler joins a 48 to 51 mm tube to a smaller 32 to 38 mm tube with 360° movement. It is specifically for mixed-diameter connections between 2" truss or pipe and 1.25" / 1.5" nominal pipe structures.
Why It Matters
This is not a same-size swivel coupler, and that distinction saves mistakes on site. KCP-868 gives installers a compact way to transition between different tube diameters while keeping the final angle adjustable instead of forcing a fixed 90° connection.
Key Features
Mixed-diameter design connects 48 to 51 mm tube to 32 to 38 mm tube
360° swivel movement supports adjustable angle connections
Slim type body keeps the mixed-size connection more compact
Captive-top bolt during handling
120 kg WLL suits controlled mixed-diameter structures within the rated setup
Additional Technical Notes
Mounting Detail: Captive top on threaded bolt to help retain wing nut
Applications
Use it where standard 2" tube must connect to 1.25" or 1.5" nominal pipe at an adjustable angle in stage, studio, event, or installation rigs.
Compatibility
Do not rewrite this as a 2" to 2" swivel coupler. It is specifically for 48 to 51 mm tube to 32 to 38 mm tube connections.
Frequently Asked Questions
Does KCP-868 connect two same-size tubes?
No. It connects a 48 to 51 mm tube to a smaller 32 to 38 mm tube.
Can the angle be adjusted?
Yes. It provides 360° swivel movement for adjustable angle connections.
What WLL applies?
The specification lists a 120 kg WLL.
