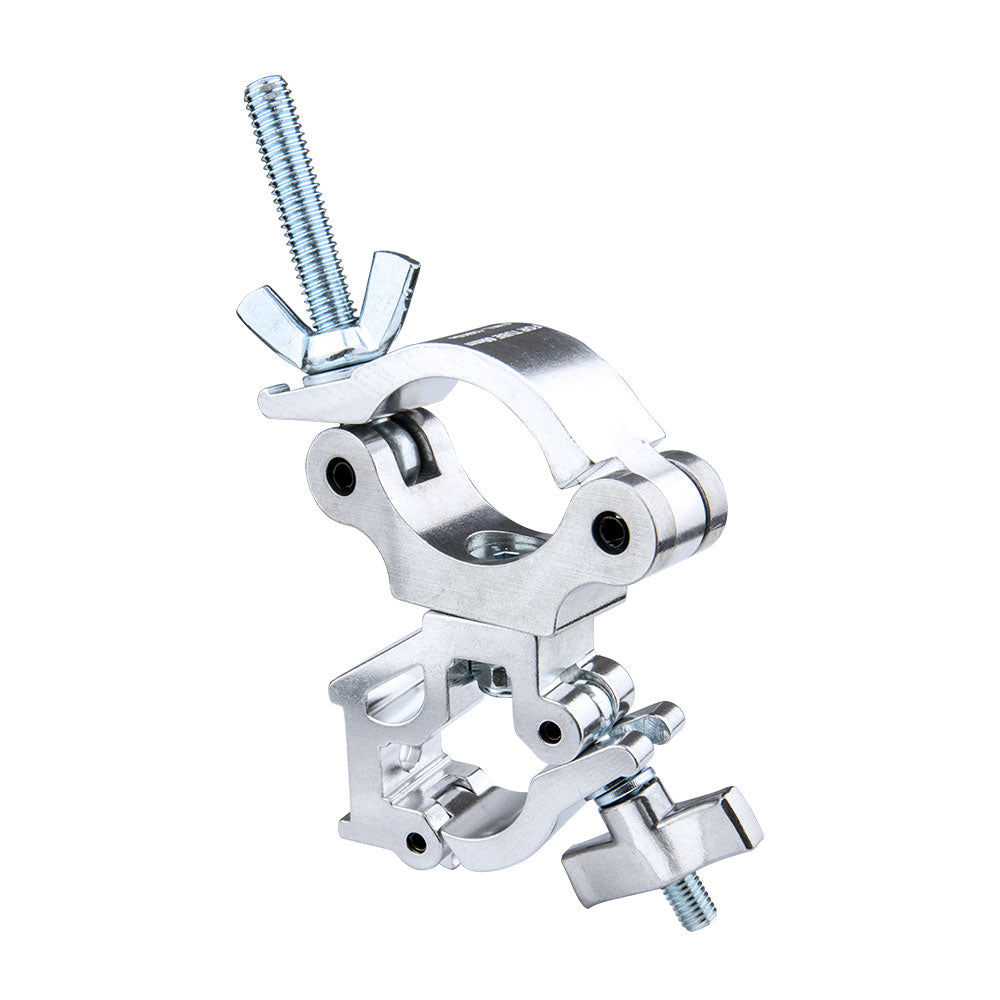

The KUPO KCP-869 Slim Type Mighty Swivel Coupler joins a larger 48 to 60 mm tube to a smaller 32 to 38 mm tube with full 360° movement. It is a compact mixed-size swivel coupler for truss, pipe, and support bars that meet at non-standard angles.
Why It Matters
KCP-869 widens the large-tube side compared with a standard mixed-size swivel, which makes it more forgiving on stage and event structures where tube diameter may vary. The 120 kg / 264 lb WLL and 620 g body weight keep the application clear and controlled.
Key Features

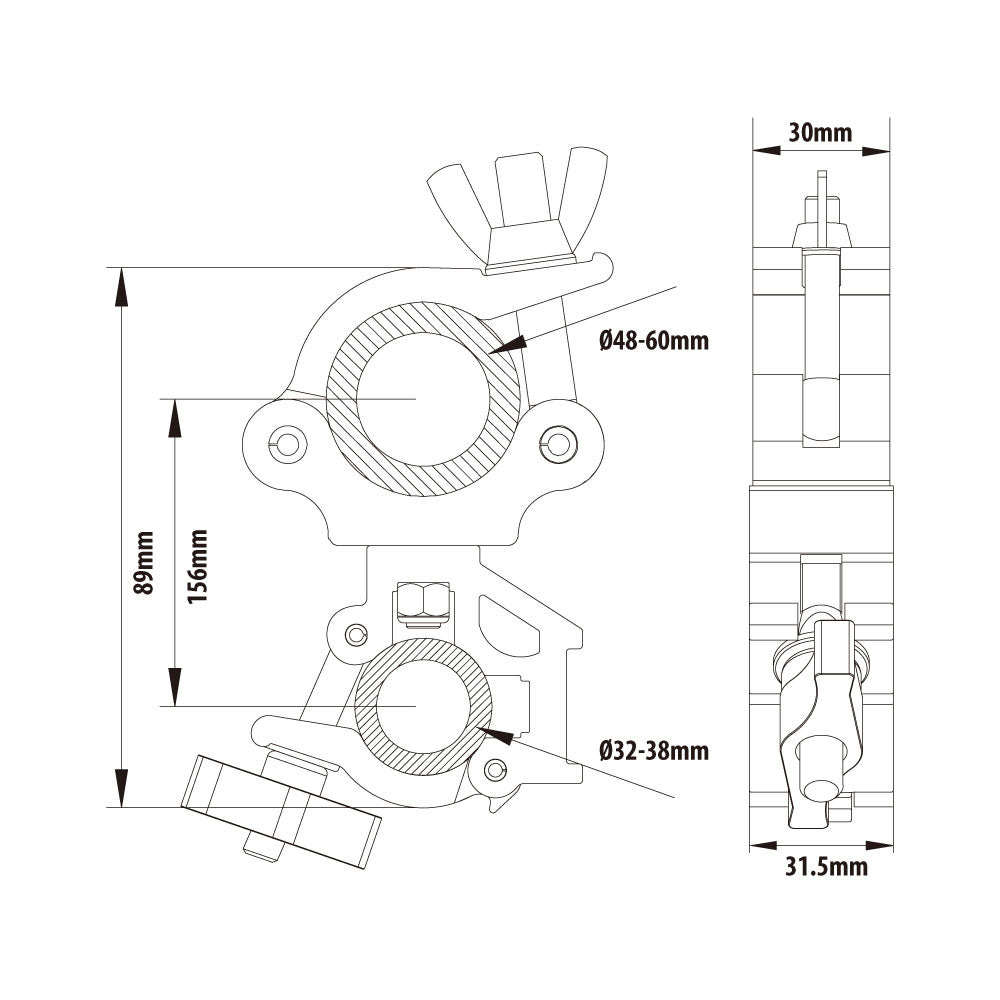

Mixed tube range connects 48 to 60 mm tube to 32 to 38 mm tube
360° movement supports angle adjustment during installation
6061-T6 high-tensile aluminum extrusion provides a strong slim Mighty body
Captive-top bolt during handling
120 kg / 264 lb WLL keeps the coupler rated for controlled mixed-size use
Additional Technical Notes
Mounting Detail: Captive top on threaded bolt helps retain the wing nut
Applications
Use it for mixed-diameter stage, event, theatre, and studio rigs where a larger tube must connect to a smaller support bar at an adjustable angle.
Compatibility
Use KCP-869 as a mixed-size swivel coupler, not as a general same-size pipe clamp. The large side covers 48 to 60 mm tube and the small side covers 32 to 38 mm tube.
Frequently Asked Questions
What is the difference between KCP-868 and KCP-869?
KCP-868 connects 48 to 51 mm tube to 32 to 38 mm tube. KCP-869 widens the larger side to 48 to 60 mm.
Is this for fixed 90° joints?
It is primarily a 360° swivel coupler for adjustable angles, not a fixed same-size 90° clamp.
What is the WLL?
The specification lists 120 kg / 264 lb.
