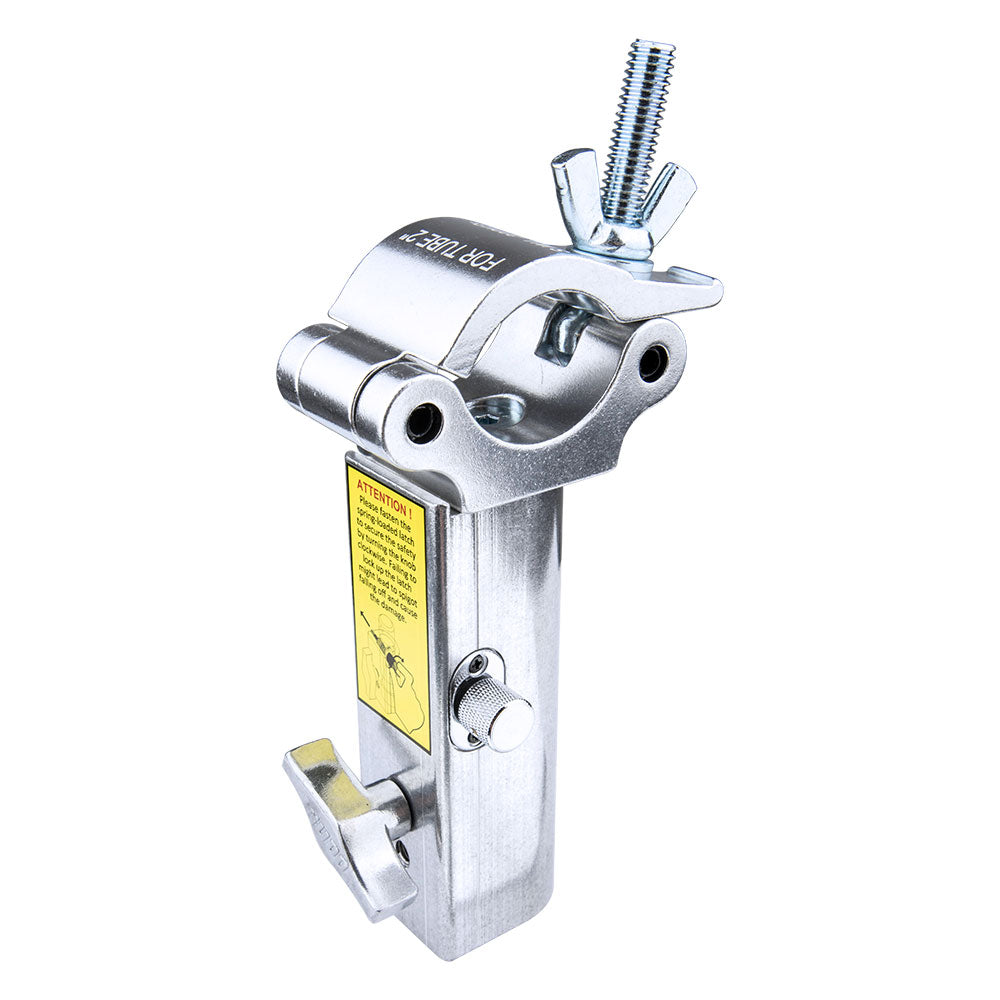

The KUPO KCP-874 is a 2" half coupler with an integrated female quick TV receiver for 28 mm spigots. It mounts video equipment and compatible fixtures onto standard 48 to 51 mm truss or pipe with a 100 kg / 220 lb load capacity.
Why It Matters
The receiver is the reason to choose this over a plain half coupler. KCP-874 gives crews a direct female quick TV point on standard 2" tube, with a spring latch that helps prevent the inserted spigot from slipping unexpectedly.
Key Features
Female quick TV receiver accepts compatible 28 mm spigots
48 to 51 mm tube compatibility fits standard 2" truss or pipe
Spring latch anti-slip detail after the spigot is seated
6061-T6 extruded aluminum alloy provides a strong coupler body
100 kg / 220 lb load capacity keeps the receiver-style rating clear
Applications
Use it for video equipment, broadcast fixtures, theatre hardware, and studio lighting setups that need a 28 mm spigot receiver mounted to standard truss or pipe.
Compatibility
Use with equipment that has a compatible 28 mm spigot. Do not import higher parent-coupler ratings into this item; the listed load capacity is 100 kg / 220 lb.
Frequently Asked Questions
What makes KCP-874 different from a standard half coupler?
It has an integrated female quick TV receiver for a 28 mm spigot, so it is more than a plain tube clamp.
What does the spring latch do?
The spring latch helps keep the inserted spigot from slipping out unexpectedly during normal setup and adjustment.

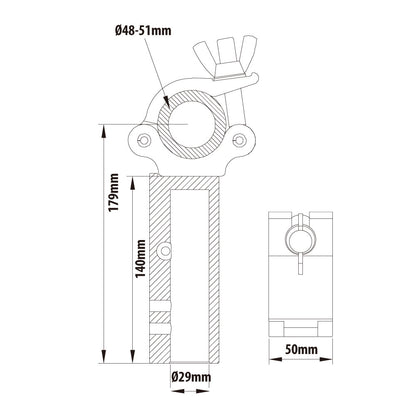

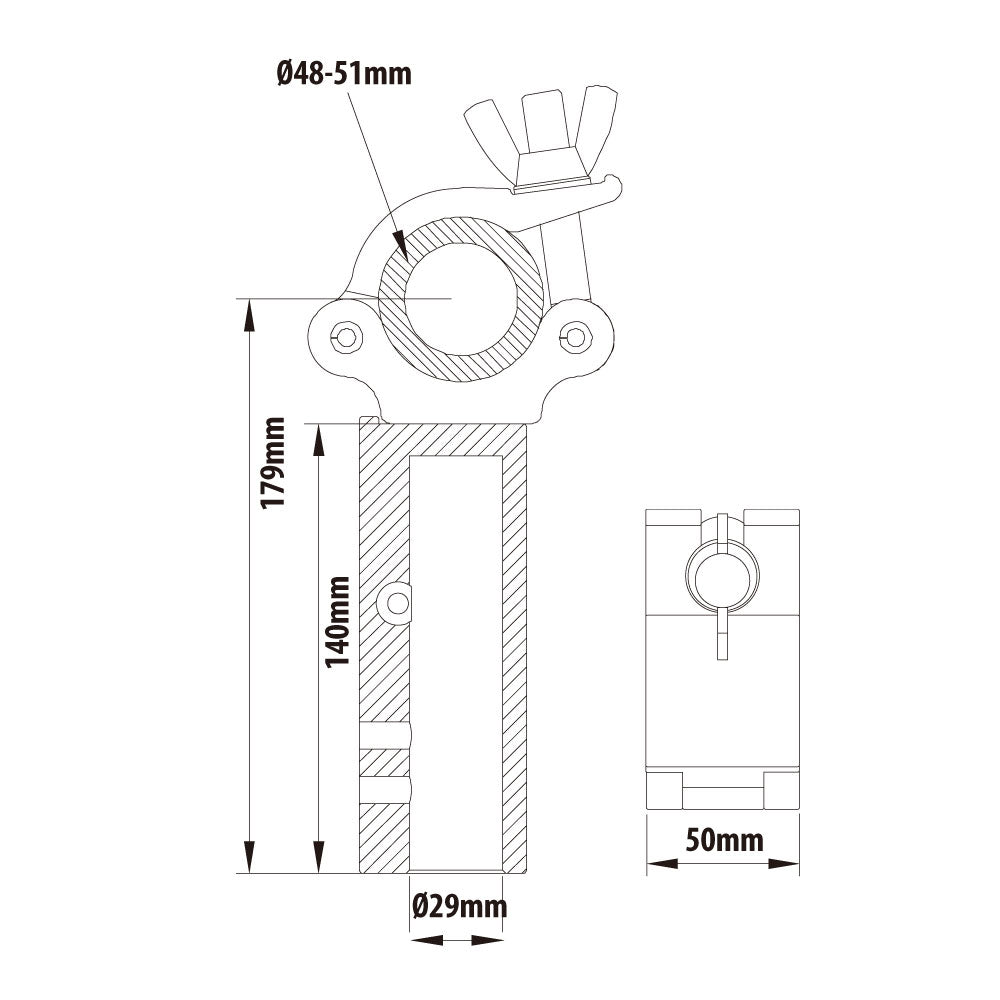

What tube size does it fit?
It fits 48 to 51 mm / 1.89" to 2.0" .
