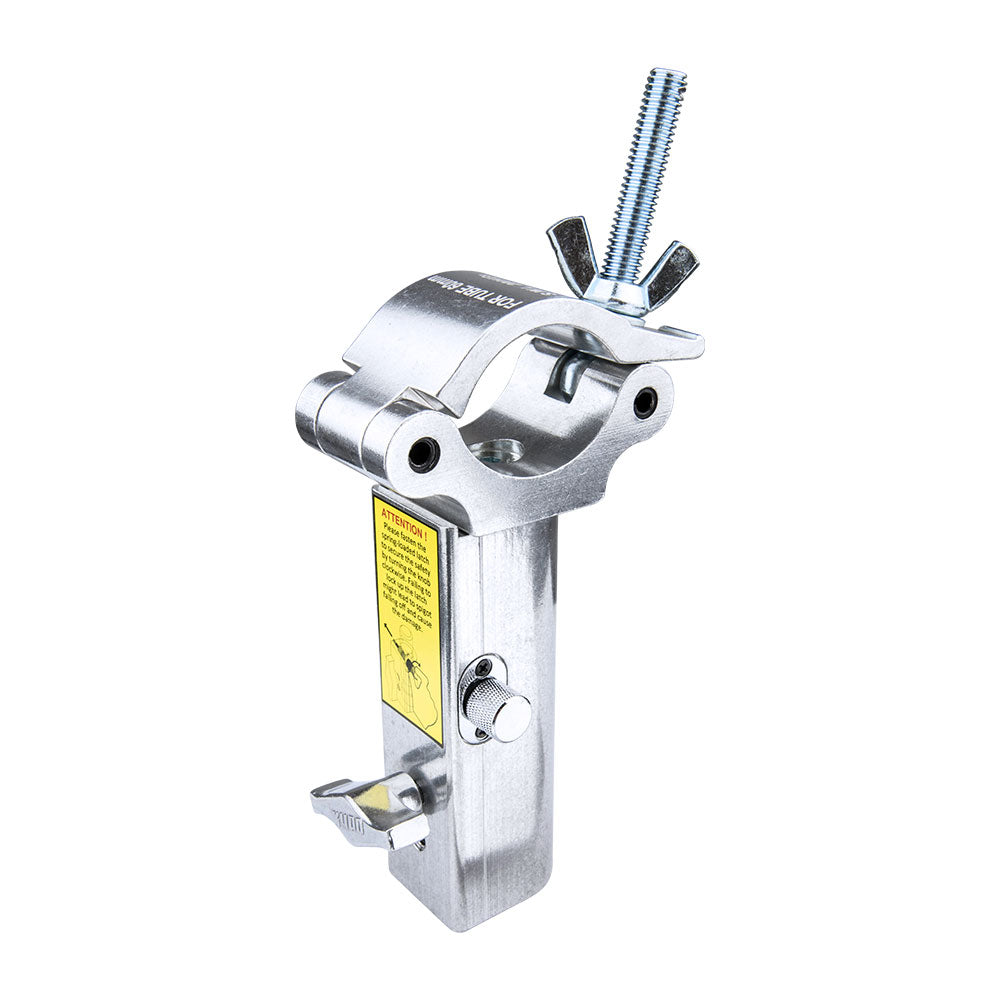

The KUPO KCP-877 Mighty Quick TV Coupler provides a female quick TV receiver for equipment with a 28 mm spigot on wider 48 to 60 mm tubes. Its high-strength 6061-T6 extruded aluminum body and spring latch make it a larger-tube receiver solution for professional rigs.
Why It Matters
Tube diameter varies in theatre, broadcast, and studio structures. KCP-877 gives crews a quick TV receiver that can move beyond standard 48 to 51 mm-only tube, while keeping the load capacity at the sourced 100 kg rating.
Key Features
48 to 60 mm tube range gives the Mighty model wider pipe compatibility
Female quick TV receiver accepts compatible 28 mm spigots
Spring latch anti-slip detail after the spigot is inserted
6061-T6 extruded aluminum alloy provides a durable coupler body
100 kg load capacity keeps the receiver rating clear
Applications
Use it for video, lighting, and support hardware with 28 mm spigots in theatre, broadcast, studio, and event rigs where tube diameter may vary from 48 to 60 mm.
Compatibility
KCP-877 is the non-slim Mighty quick TV model. KCP-878 is the slim type Mighty version for the same wider tube range.
Frequently Asked Questions
What is the Mighty advantage here?
The Mighty version fits a wider 48 to 60 mm tube range instead of only 48 to 51 mm.
Is KCP-877 slim type?
No. KCP-877 is the regular Mighty quick TV coupler. KCP-878 is the slim type Mighty version.
What load capacity should be used?
The specification lists a 100 kg load capacity.
