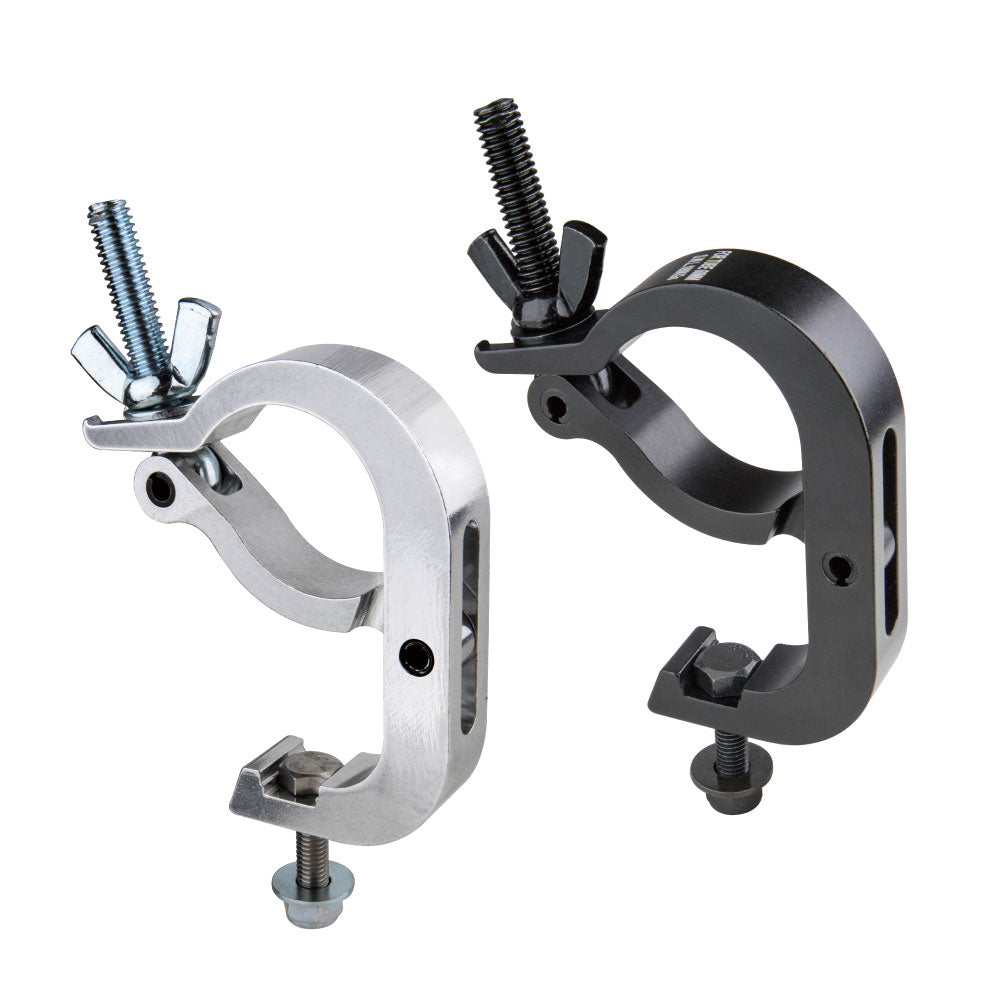

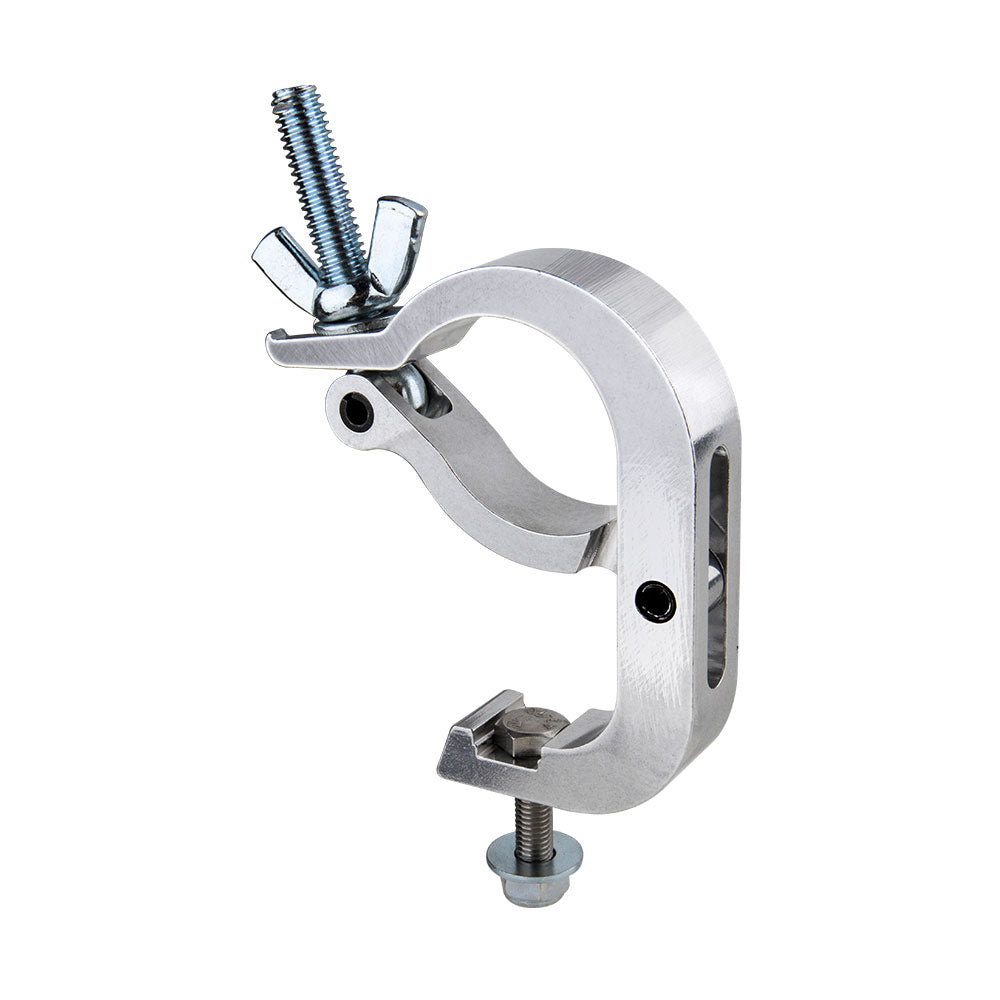

The KCP-880 Slim Mighty Handcuff Coupler uses KUPO's triggering handcuff design to close quickly around 48-60 mm tube without sliding on from the pipe end. Its slim 25 mm 6061-T6 aluminum extrusion body carries a 100 kg Working Load Limit (WLL), giving crews a fast clamp for lighter fixtures and dense rigging layouts.
Why It Matters
When several accessories need to live on the same chord, clamp width matters. This slim body keeps the familiar handcuff workflow while leaving more room for adjacent hardware and cleaner cable paths.
Key Features

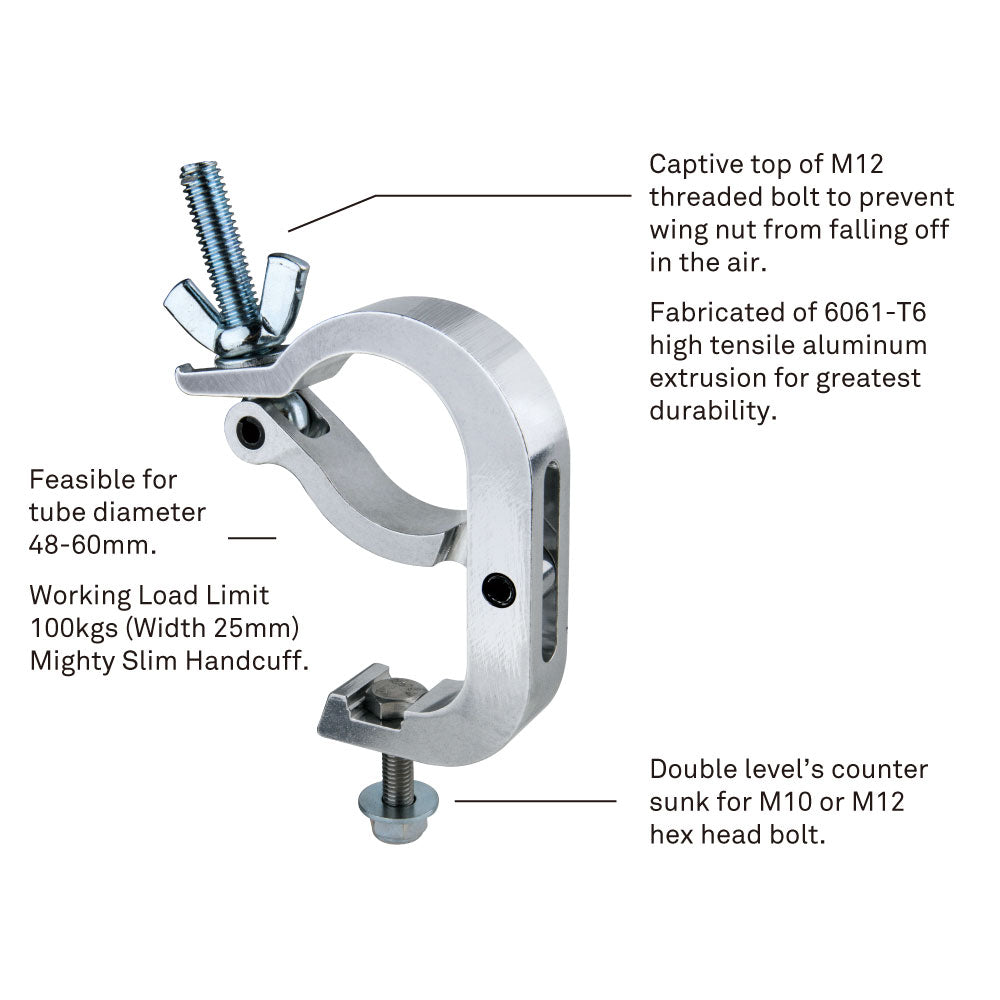

Triggering handcuff body opens around the tube, then closes and tightens without feeding the clamp over a pipe end.

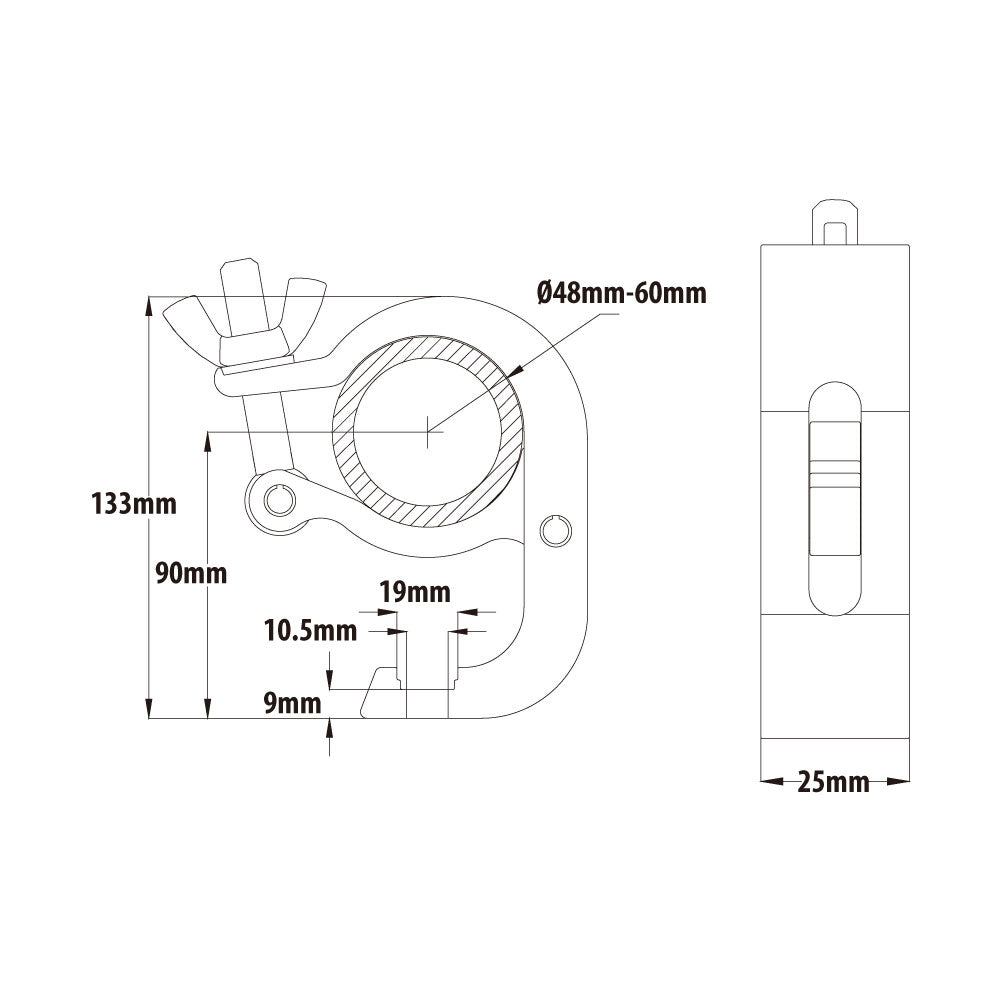

25 mm body width balances rigging density and low weight on 48-60 mm tube.
Captive M12 wing nut and double countersunk M10 or M12 bolt seat help keep small hardware under control during overhead work.
Applications
Well suited to lightweight luminaires, LED accessories, compact pipe grids, rental packages, and truss runs where several clamps must sit close together.
Compatibility
Fits 48-60 mm tube and pairs with the KCP-882 eye ring and KCP-884 Quick TV slim handcuff variants in the same family.
Frequently Asked Questions
Do I still need access to the end of the pipe?
No. The handcuff body opens around the tube, which is the whole advantage when the pipe is already built into a truss or grid.
Why would I choose the slim version?
Choose the slim body when the load is within 100 kg and clamp spacing is tight. It keeps the rig neater when many fittings share the same chord.
Is the tube range the same across the handcuff family?
Yes. This coupler fits 48-60 mm tube, matching the eye ring and Quick TV versions in the same handcuff series.
