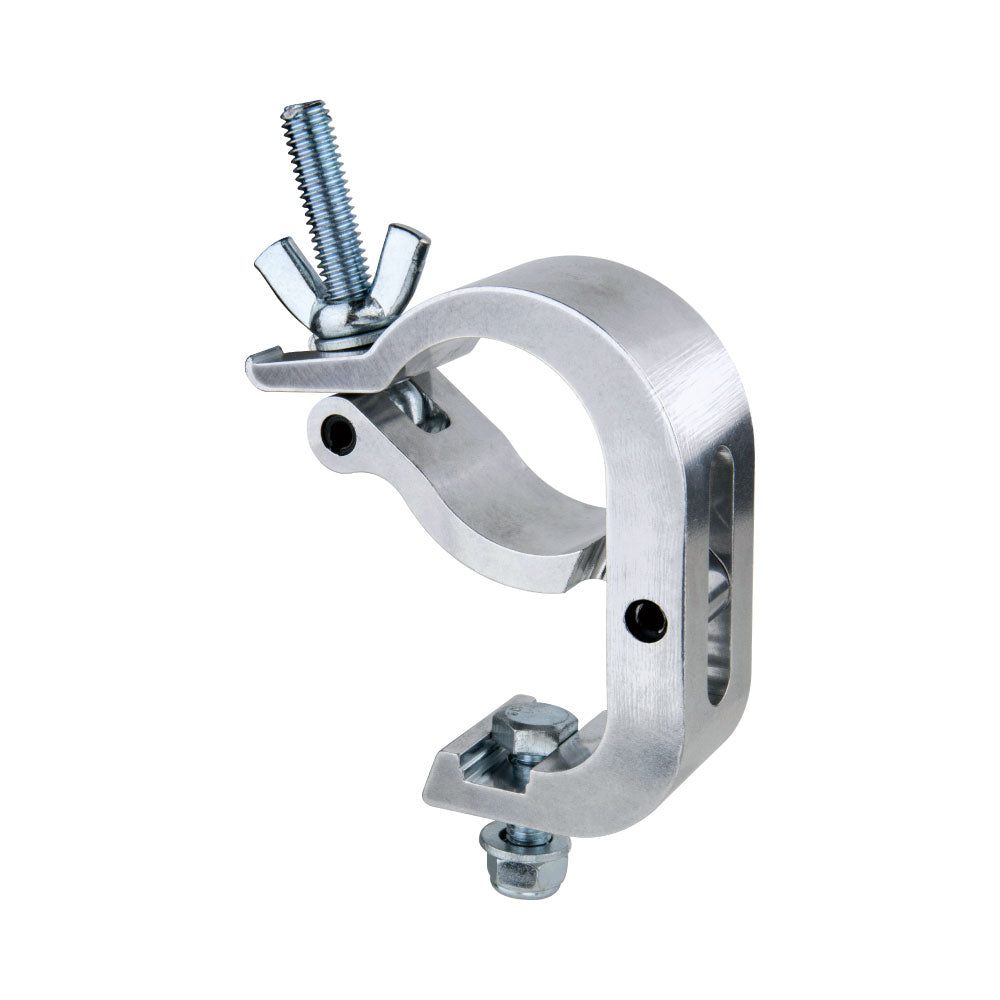

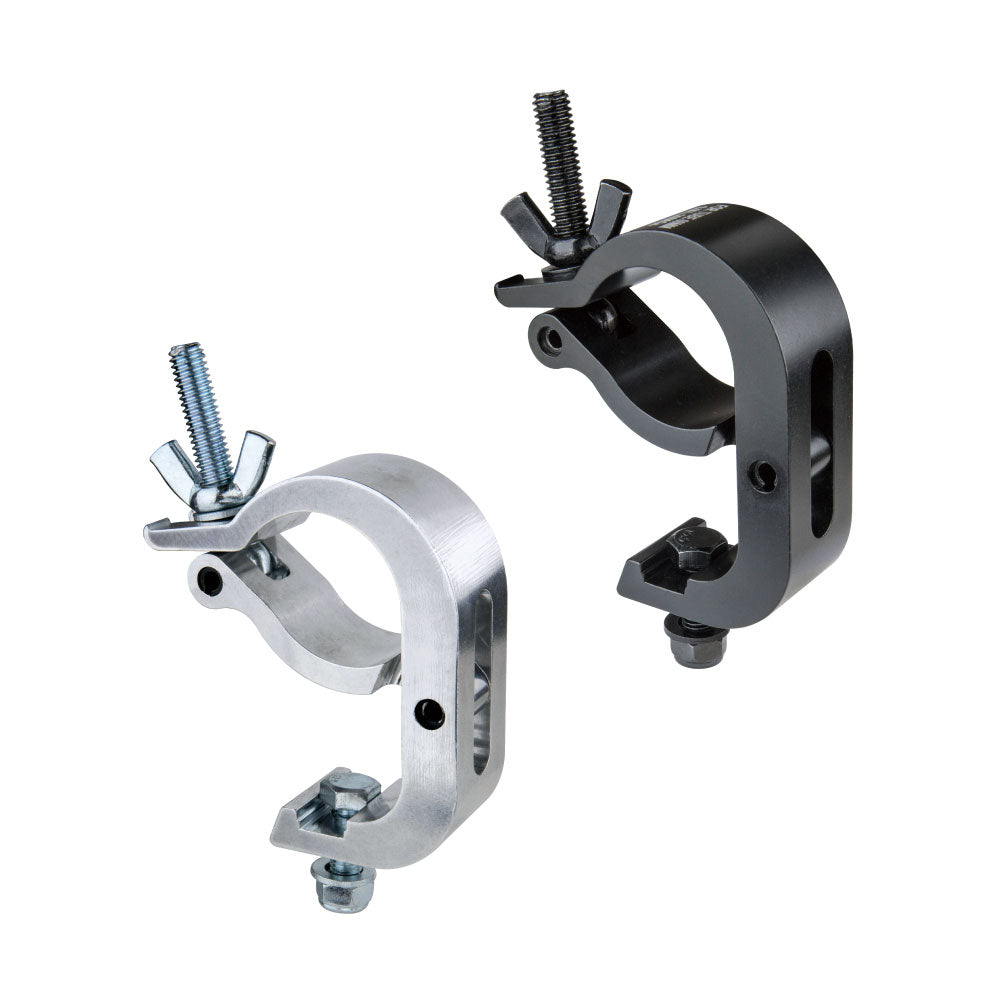

The KCP-881 Mighty Handcuff Coupler uses KUPO's triggering handcuff design to close quickly around 48-60 mm tube without sliding on from the pipe end. Its standard 40 mm 6061-T6 aluminum extrusion body carries a 200 kg Working Load Limit (WLL), giving crews a fast clamp for heavier luminaires and everyday truss work.
Why It Matters
Heavy fixture rigging rewards hardware that is quick but not casual. The wider body spreads load across the tube, while the handcuff action saves time during busy hangs and turnarounds.
Key Features
Triggering handcuff body opens around the tube, then closes and tightens without feeding the clamp over a pipe end.

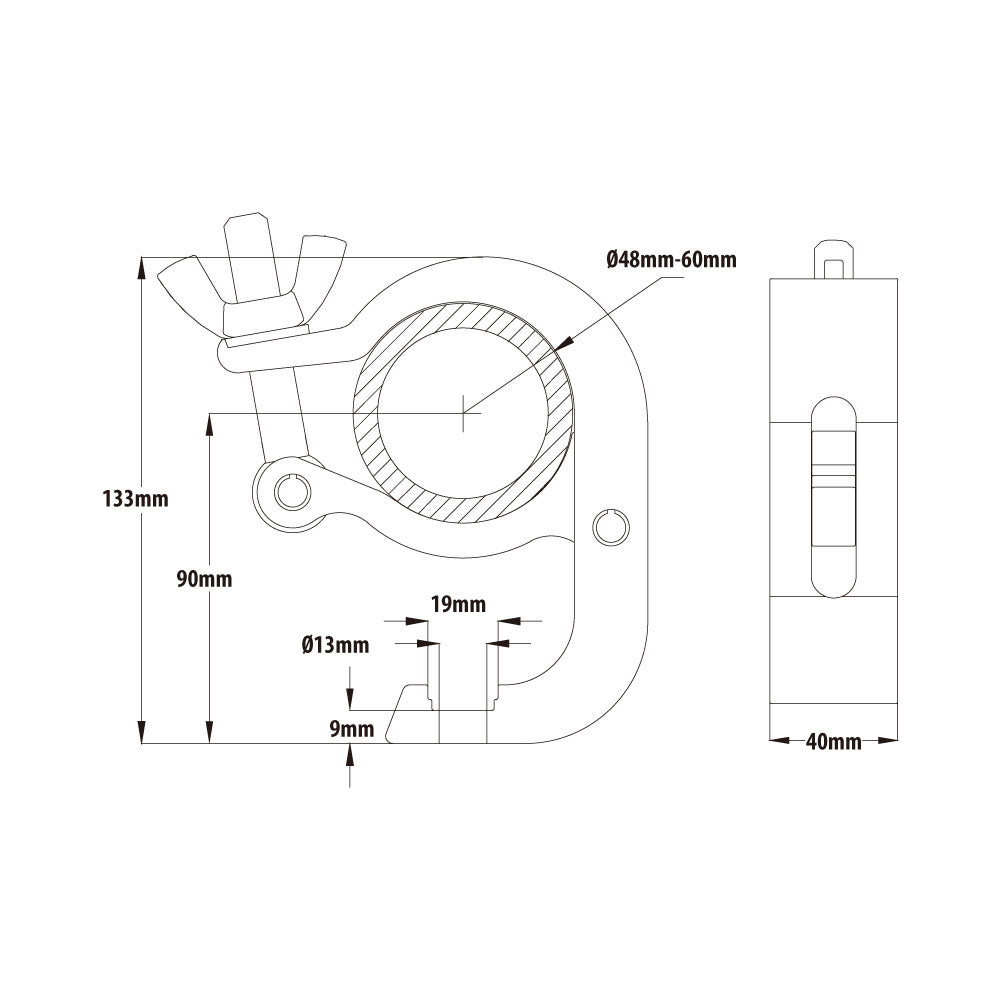

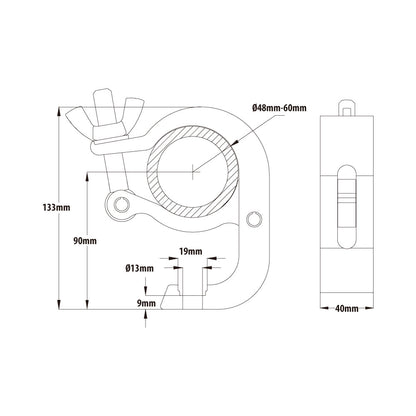

40 mm body width balances load spread and fixture stability on 48-60 mm tube.
Captive M12 wing nut and double countersunk M10 or M12 bolt seat help keep small hardware under control during overhead work.
Applications
Built for moving lights, heavier hanging fixtures, rental house truss, studio grids, and event rigs where the clamp needs both speed and a wider bearing surface.
Compatibility
Fits 48-60 mm tube and pairs with the KCP-883 eye ring and KCP-885 Quick TV handcuff variants in the same family.
Frequently Asked Questions
Do I still need access to the end of the pipe?
No. The handcuff body opens around the tube, which is the whole advantage when the pipe is already built into a truss or grid.
Why use the 40 mm wide version?
The 40 mm body is better when heavier fixtures or side loads need more bearing area on the tube.
Is the tube range the same across the handcuff family?
Yes. This coupler fits 48-60 mm tube, matching the eye ring and Quick TV versions in the same handcuff series.
