Overview

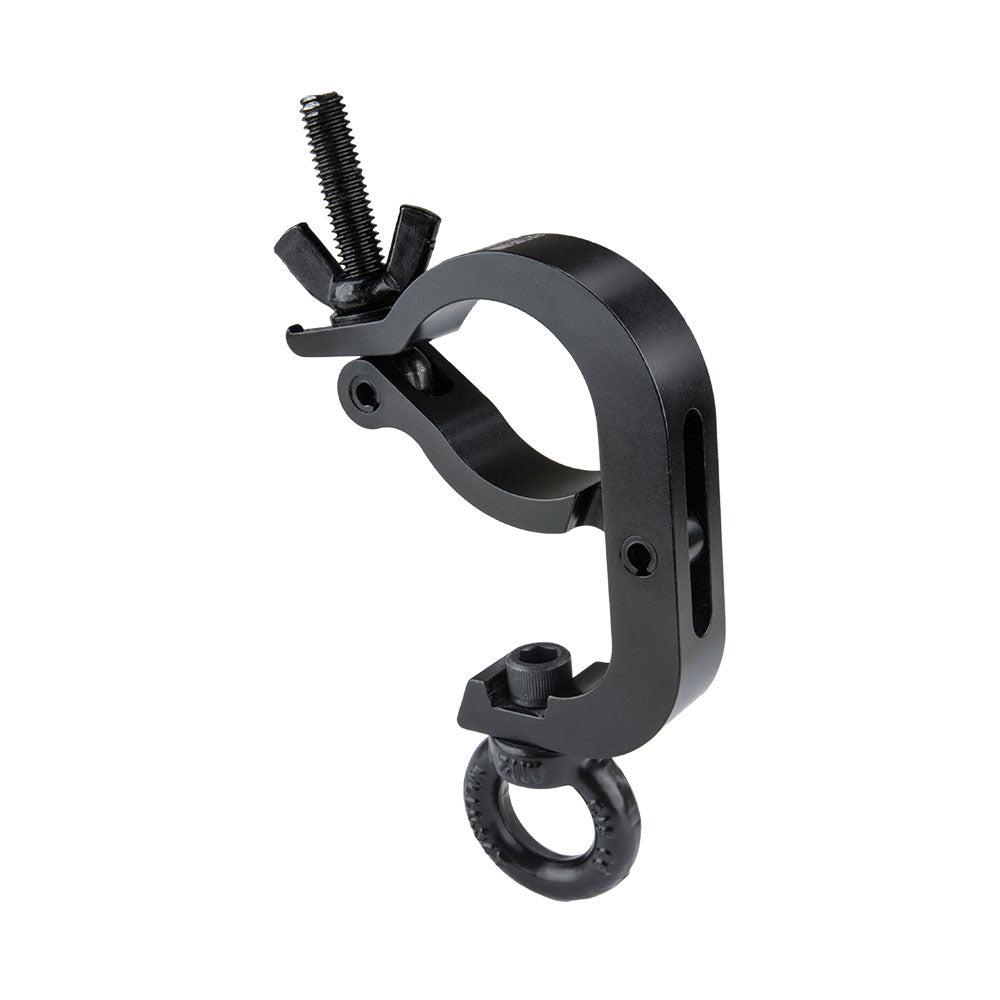

The KCP-882B Slim Mighty Handcuff Eye Ring Opening Coupler combines a fast-opening handcuff clamp with a 30 mm integrated pickup eye. Built from 6061-T6 high tensile aluminum extrusion for 48-60 mm tube, it gives riggers a compact way to add a shackle, hook, safety cable, or pickup point without building up extra loose adapters.

Why It Matters

A pickup point often lands exactly where clamp spacing is already crowded. The slim body keeps that point tidy, especially on compact grids or multi-cable rigging runs.

Key Features

• Integrated 30 mm eye ring creates a direct attachment point for shackles, hooks, safety cables, or pickup details.
• 25 mm handcuff body closes quickly around 48-60 mm tube and keeps the eye aligned with the clamp position.
• 100 kg Working Load Limit (WLL) suits lighter pickup points in tight rigging envelopes.

Applications

Useful for close-spaced cable pickups, compact lighting grids, display structures, safety cable points, and slim-profile rigging where a separate eye nut would add clutter.

Compatibility

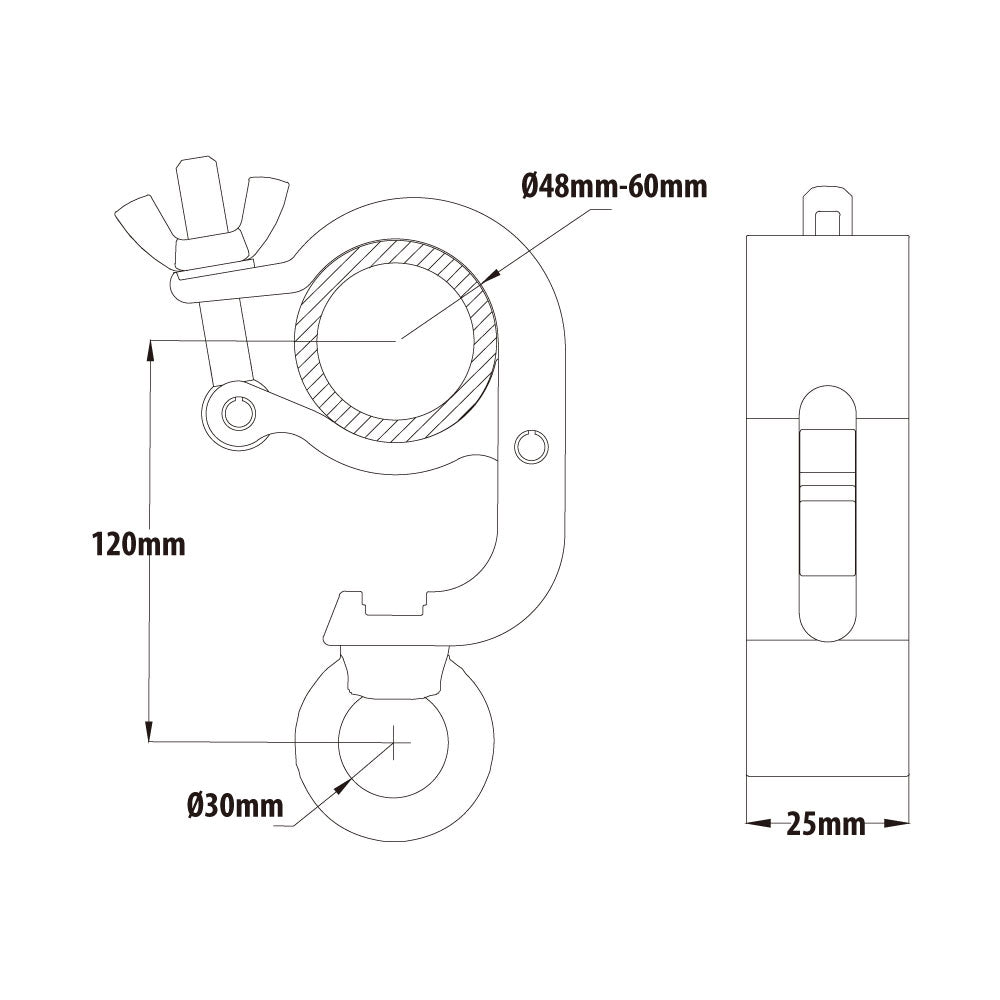

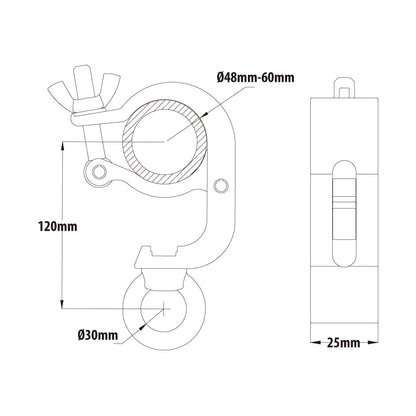

Fits 48-60 mm tube and provides a 30 mm eye ring; use with compatible shackles, hooks, and rated rigging hardware.
