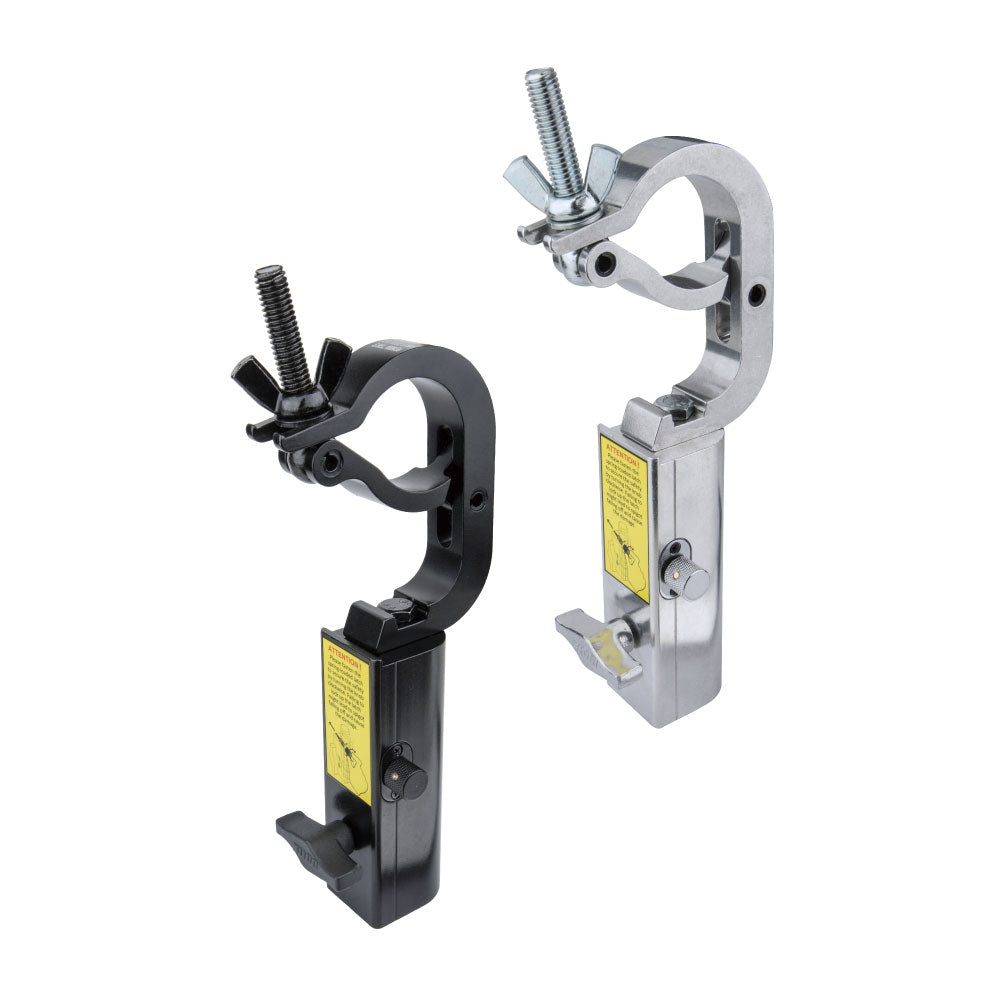

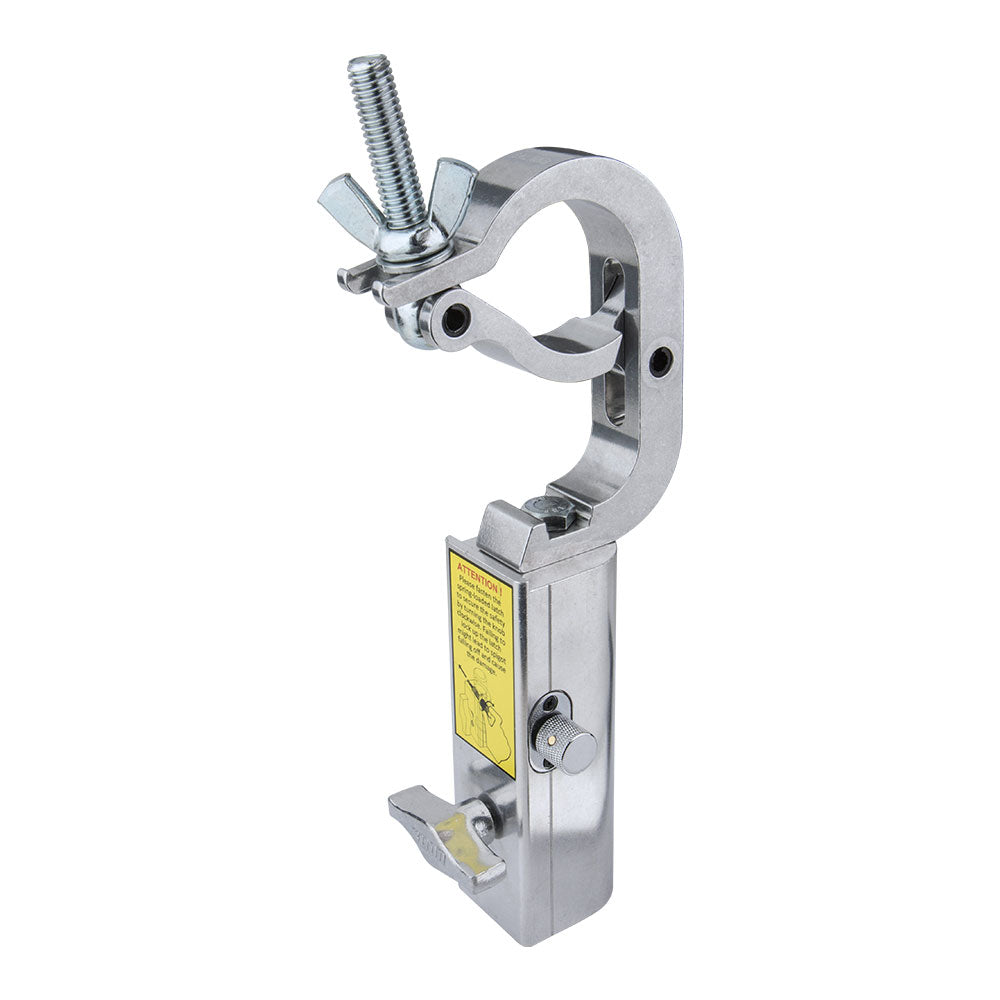

The KCP-884 Slim Mighty Handcuff Quick TV Coupler combines a 48-60 mm handcuff clamp with a 29 mm Quick TV spigot for direct luminaire mounting. The fitting lets crews move from truss chord to junior receiver style equipment in one piece, using a slim 25 mm 6061-T6 aluminum extrusion body and a 100 kg Working Load Limit (WLL).
Why It Matters
Light fixtures often need to fit into the tightest part of the rig. This slim Quick TV version keeps the spigot mount compact so neighboring clamps, cables, and accessories have room to work.
Key Features
29 mm Quick TV spigot creates a direct mount from 48-60 mm tube to compatible junior receiver style equipment.

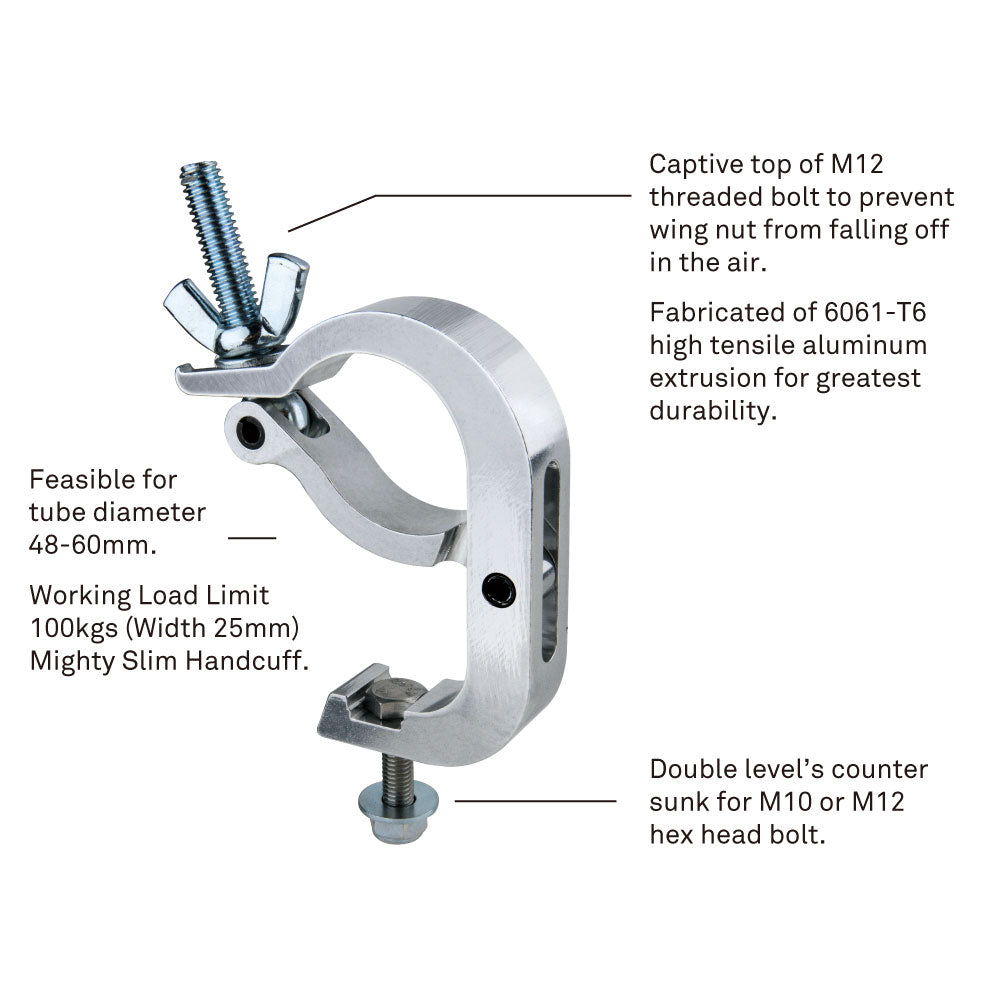

25 mm handcuff body closes around the tube quickly, useful when the truss is already dressed or access is limited.
100 kg Working Load Limit (WLL) and 1.05 kg body weight suit lightweight luminaires and dense pipe layouts.
Applications
A good match for LED panels, small spots, lightweight accessories, studio grids, and exhibition rigs where the fixture mount must stay narrow.
Compatibility

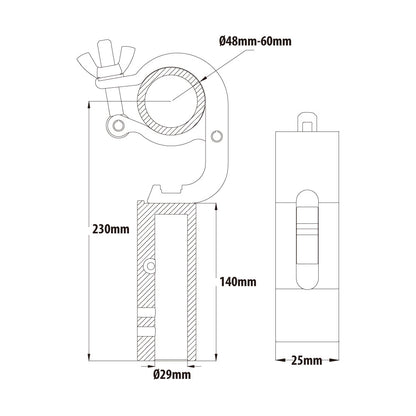

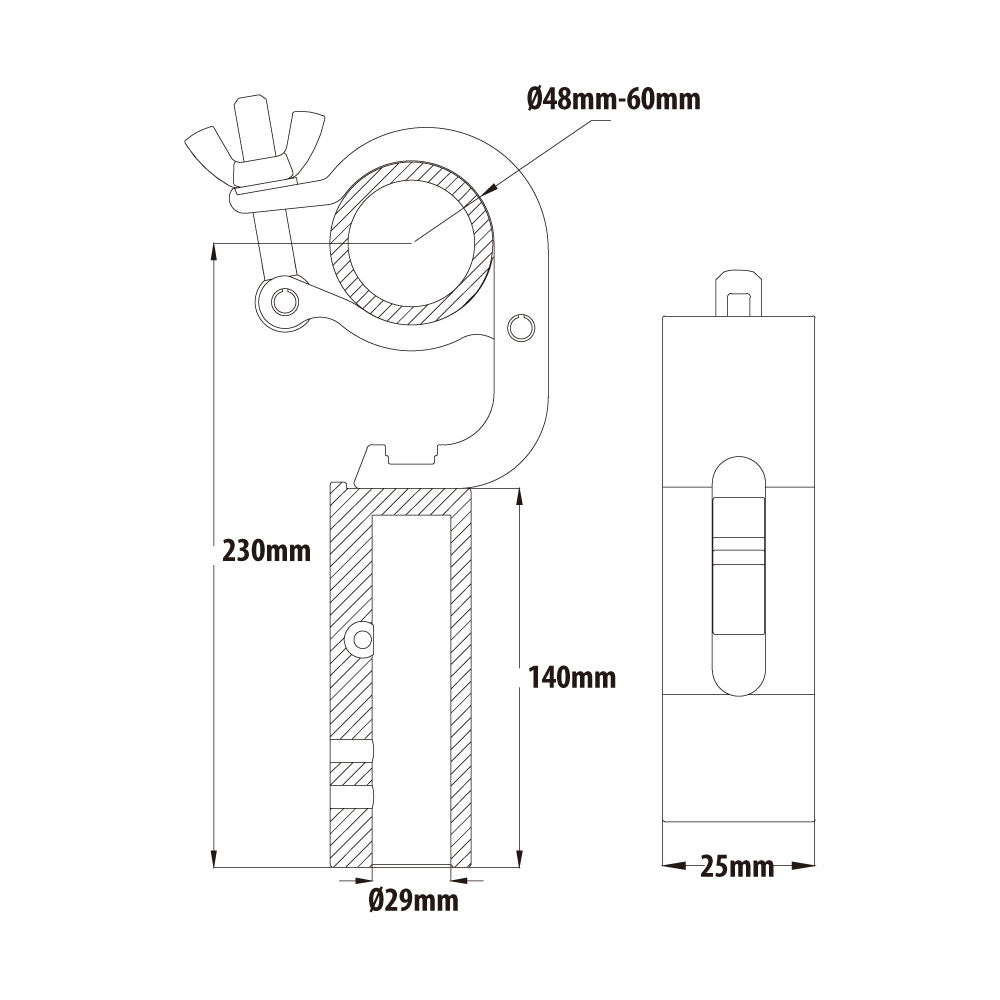

Fits 48-60 mm tube and provides a 29 mm Quick TV spigot for compatible 28 mm junior receiver style mounts.
Frequently Asked Questions
Will this go straight into a junior receiver?
It provides a 29 mm Quick TV spigot for compatible 28 mm junior receiver style mounts, so it is intended for that direct tube-to-fixture workflow.
Why choose the slim Quick TV instead of the wider one?
Pick the slim version when the fixture is within the 100 kg rating and the rigging space is crowded.
Does it use the same handcuff action as the plain coupler?
Yes. The clamp still opens around 48-60 mm tube, then closes and tightens, with the Quick TV spigot built into the same fitting.
