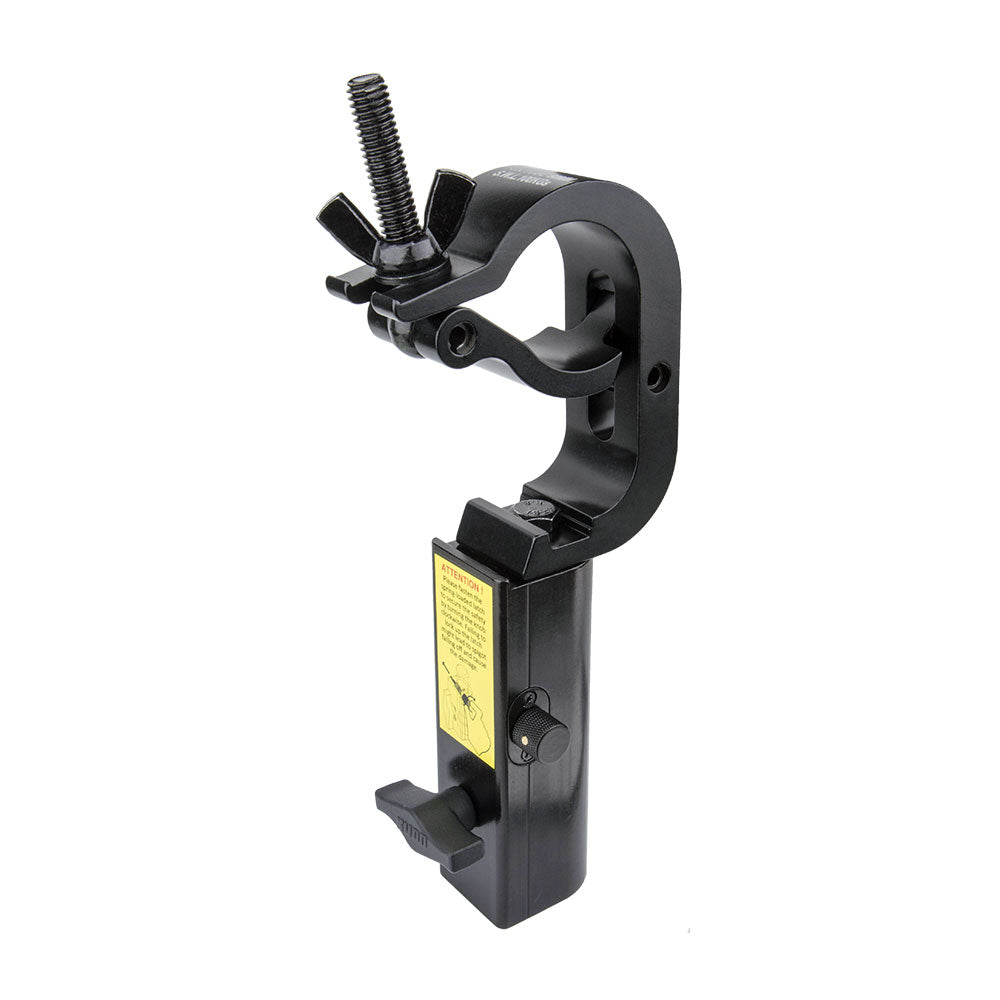

The KCP-885B Mighty Handcuff Quick TV Coupler combines a 48-60 mm handcuff clamp with a 29 mm Quick TV spigot for direct luminaire mounting. The fitting lets crews move from truss chord to junior receiver style equipment in one piece, using a standard 40 mm 6061-T6 aluminum extrusion body and a 100 kg Working Load Limit (WLL).
Why It Matters
A direct spigot coupler saves parts and shortens the rigging path. The wider handcuff body is especially useful when the mounted fixture will be panned, adjusted, or handled repeatedly during focus.
Key Features
29 mm Quick TV spigot creates a direct mount from 48-60 mm tube to compatible junior receiver style equipment.

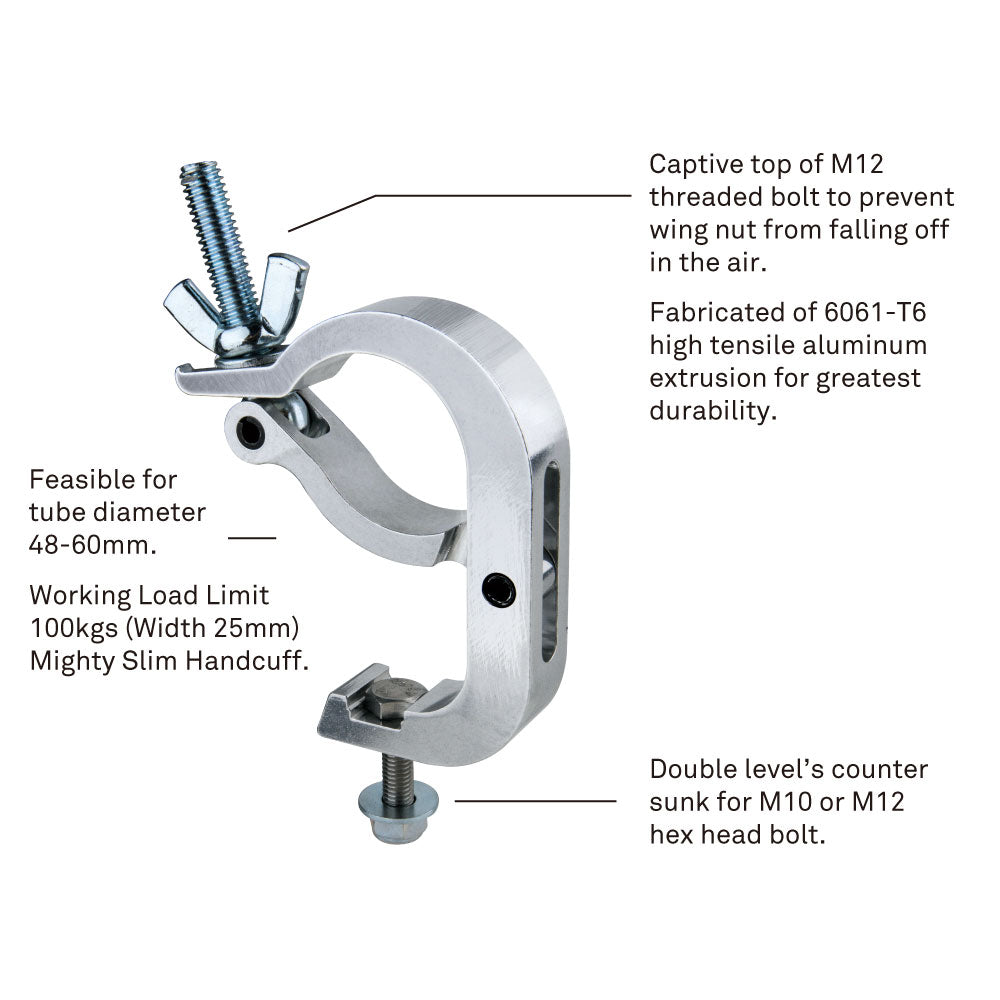

40 mm handcuff body closes around the tube quickly, useful when the truss is already dressed or access is limited.
100 kg Working Load Limit (WLL) and 1.28 kg body weight suit luminaire mounting where a wider clamp base is preferred.
Applications
Designed for spigot-mounted luminaires, moving-head support hardware, studio fixtures, rental truss, and event rigs that benefit from a one-piece tube-to-Quick-TV connection.
Compatibility

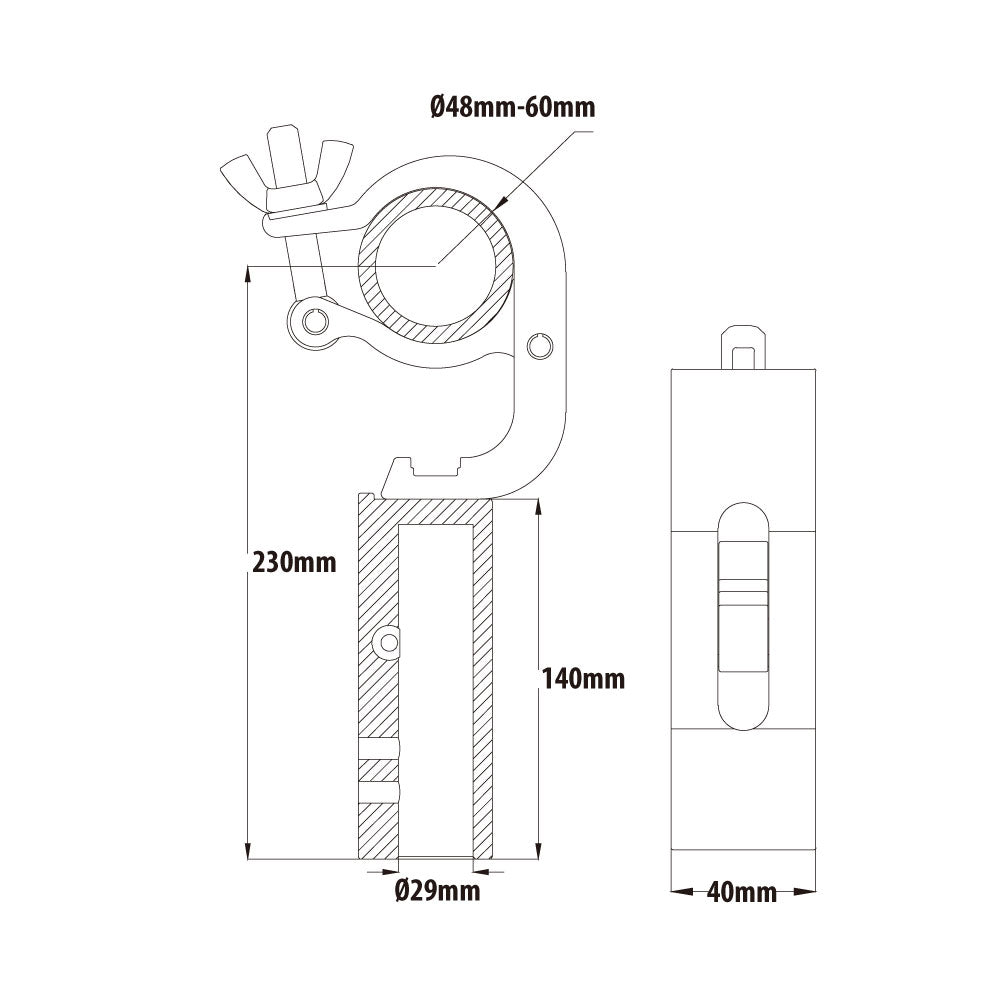

Fits 48-60 mm tube and provides a 29 mm Quick TV spigot for compatible 28 mm junior receiver style mounts.
Frequently Asked Questions
Will this go straight into a junior receiver?
It provides a 29 mm Quick TV spigot for compatible 28 mm junior receiver style mounts, so it is intended for that direct tube-to-fixture workflow.
Why choose the wider Quick TV instead of the slim one?
Pick the wider version when the fixture mount benefits from a 40 mm clamp body, especially during pan adjustment or repeated handling.
Does it use the same handcuff action as the plain coupler?
Yes. The clamp still opens around 48-60 mm tube, then closes and tightens, with the Quick TV spigot built into the same fitting.
