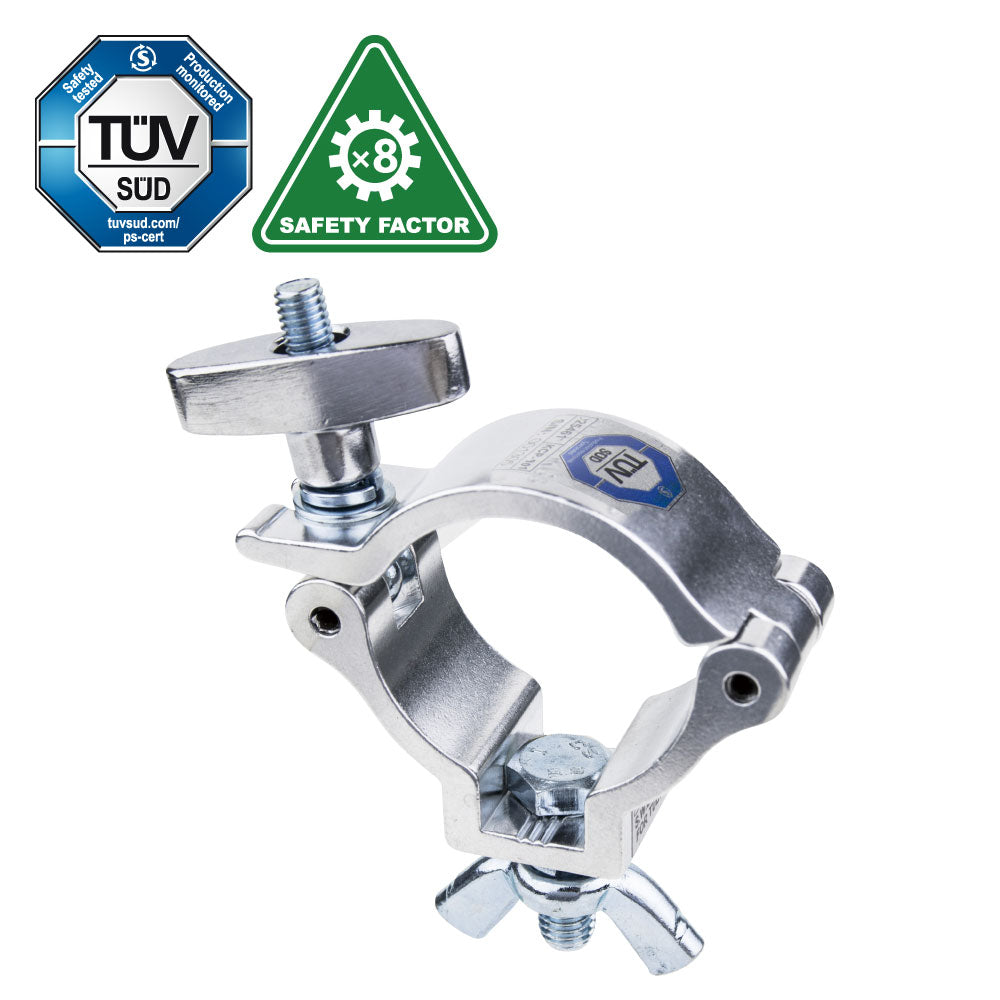

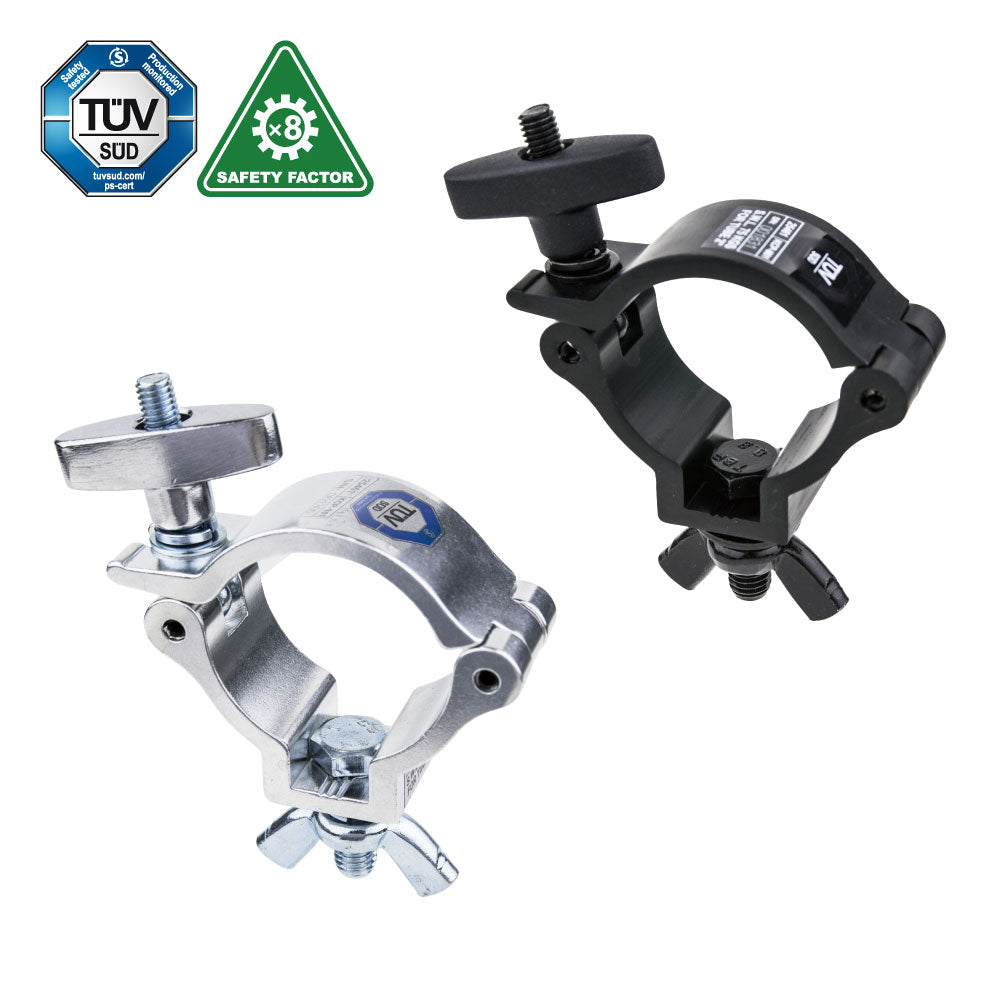

The KCP-901 Burger Coupler is a slim low-profile clamp for 48-51 mm tube, built for lightweight fixture rigging where a full-size coupler is more hardware than the job needs. Its compact T-shape handle can be tightened by hand, while the 6061-T6 aluminum extrusion body still carries a 200 kg Working Load Limit (WLL).
Why It Matters
On a busy truss, small hardware can make the rig faster to dress and easier to inspect. The Burger Coupler keeps the clamp profile modest, but still gives the crew a certified fitting for everyday fixture hangs.
Key Features
200 kg Working Load Limit (WLL) gives lightweight fixtures and accessories a properly rated clamp point.
Bare-hand T-shape handle speeds tightening and release when crews are working through repeated load-ins.
Slim 200 g body reduces clutter on 48-51 mm truss or pipe where several fixtures share the same chord.
Applications
A practical clamp for lightweight luminaires, small effects, display fixtures, pipe grids, trade-show structures, and studio rigs using standard 48-51 mm tube.
Compatibility

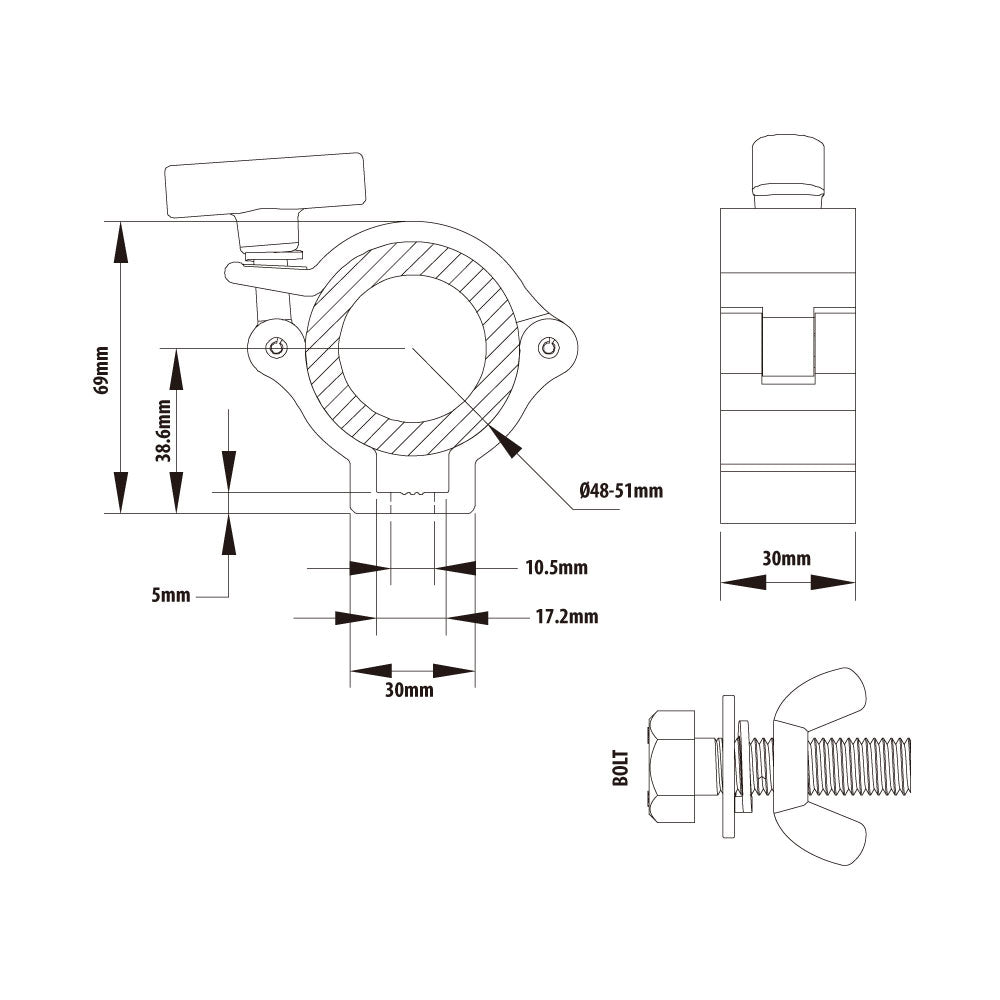

Fits 48-51 mm tube and uses M10 x 35 mm hardware with an M10 bolt and wing nut.
Frequently Asked Questions
Is the T-handle meant to be tightened without tools?
Yes. The Burger profile is built around fast bare-hand operation for lighter fixture rigging, while final use still needs normal crew judgment and inspection.
When would I choose this over a larger coupler?
Use it when the load is within 200 kg and you want a lower-profile clamp on standard 48-51 mm tube.
Does the small size change the tube fit?
No. It still fits the standard 48-51 mm tube range used on common stage truss and pipe.
