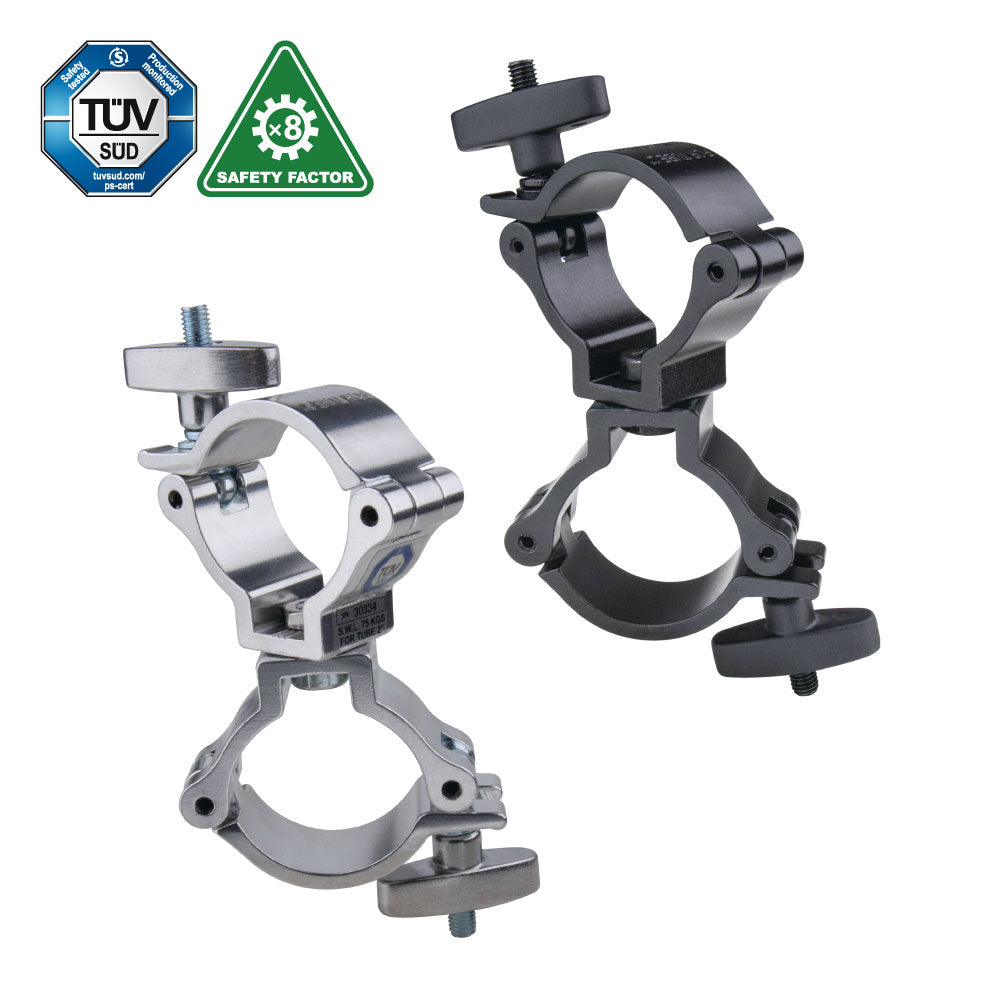

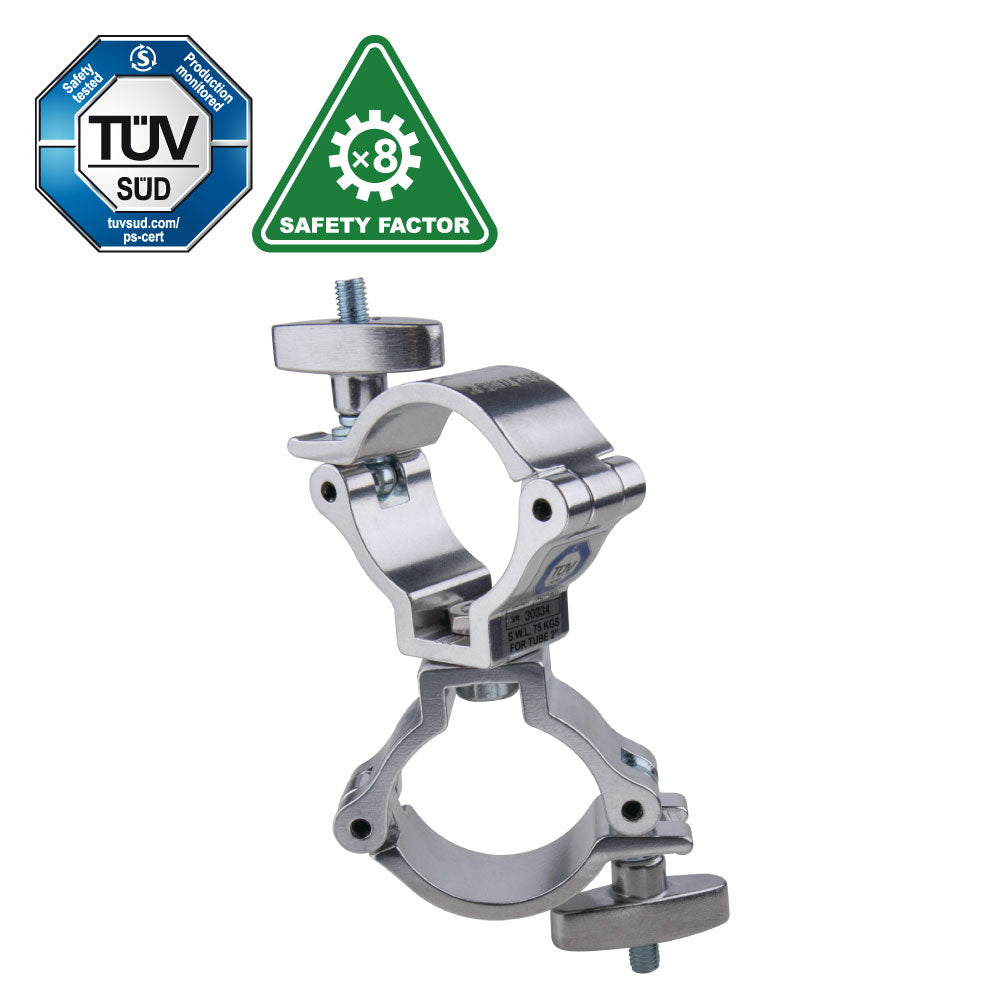

The KCP-902 Burger Swivel Coupler connects two 48-51 mm tubes at adjustable angles in a slim Burger-style body. Rated to a 190 kg Working Load Limit (WLL), it gives diagonal bracing, asymmetric structures, and non-square pipe runs a lower-profile alternative to a full-size swivel coupler.
Why It Matters
Real rigs are not always square. This swivel lets the installer follow the structure instead of forcing the structure to follow the clamp, while the T-handle keeps adjustment fast during layout.
Key Features
Swivel pivot between two clamp heads supports diagonal bracing and non-parallel tube connections.
190 kg Working Load Limit (WLL) suits lighter structural and fixture-support duties on 48-51 mm pipe.
Slim Burger profile keeps angled joints more compact where multiple clamps meet in a crowded truss detail.
Applications
Useful for diagonal pipe braces, irregular display frames, angled lighting bars, trade-show structures, scenic builds, and temporary supports where two tubes meet off-axis.
Compatibility

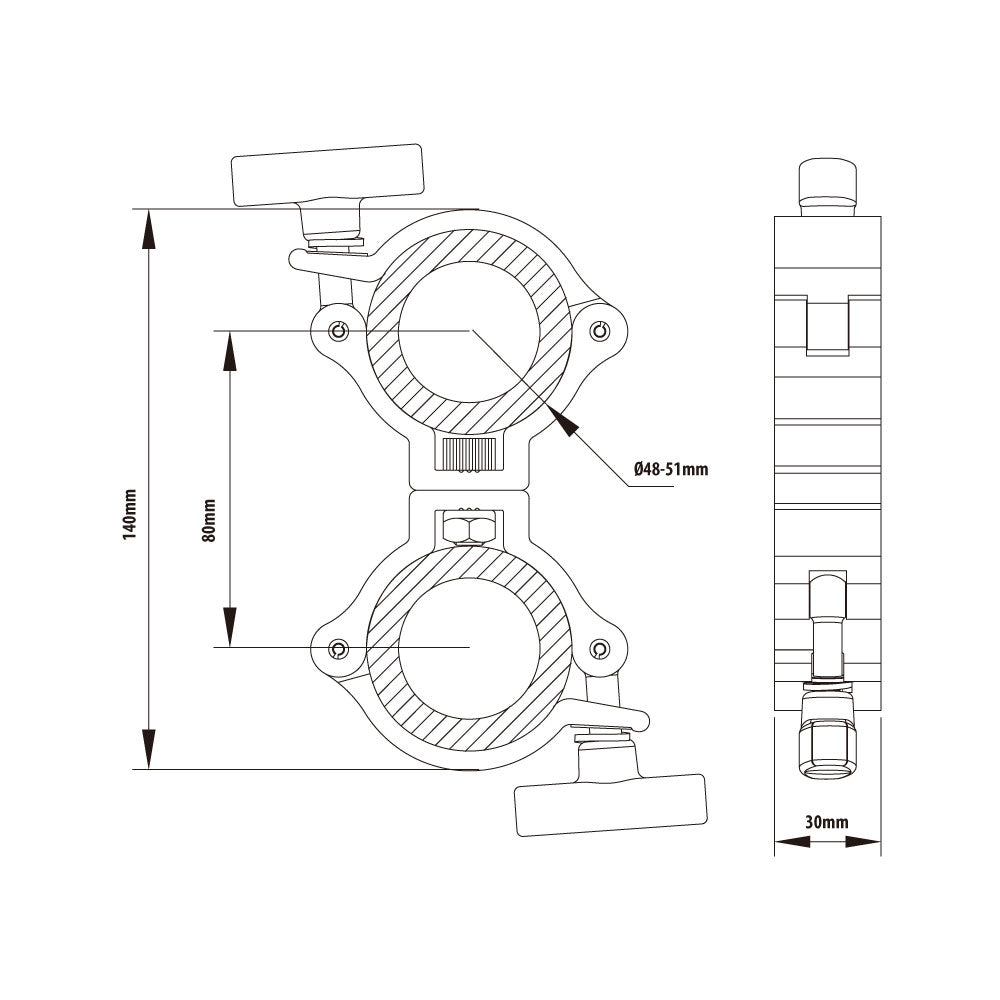

Both clamp heads fit 48-51 mm tube and rotate around an 8 mm pivot for angle adjustment.
Frequently Asked Questions
Can I set the two tubes at an odd angle?
Yes. The swivel pivot lets the clamp heads rotate, so it is meant for non-square tube connections.
Is this for the same pipe as the standard Burger Coupler?
Yes. Both heads fit 48-51 mm tube, matching the standard Burger Coupler tube range.
Why is the rating different from the fixed Burger Coupler?
The swivel mechanism changes the load path, so this version is rated at 190 kg rather than the fixed coupler's 200 kg.
