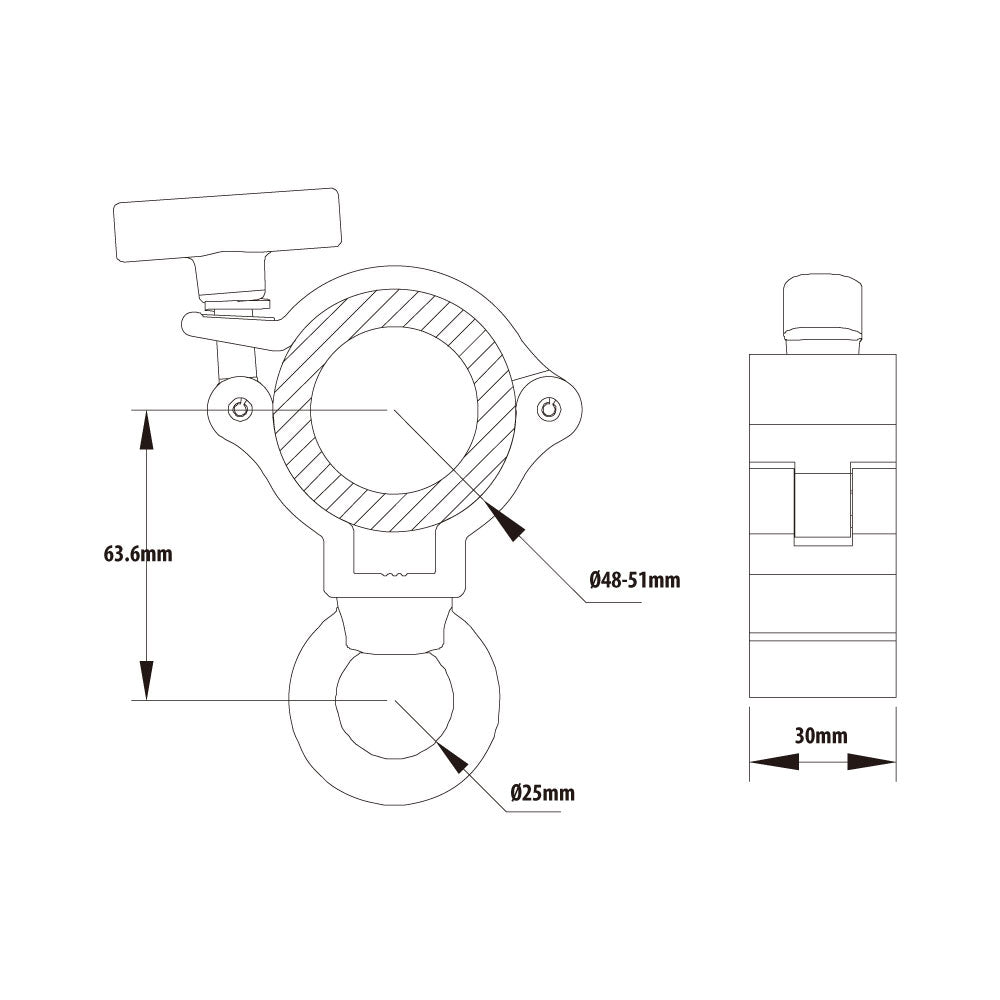

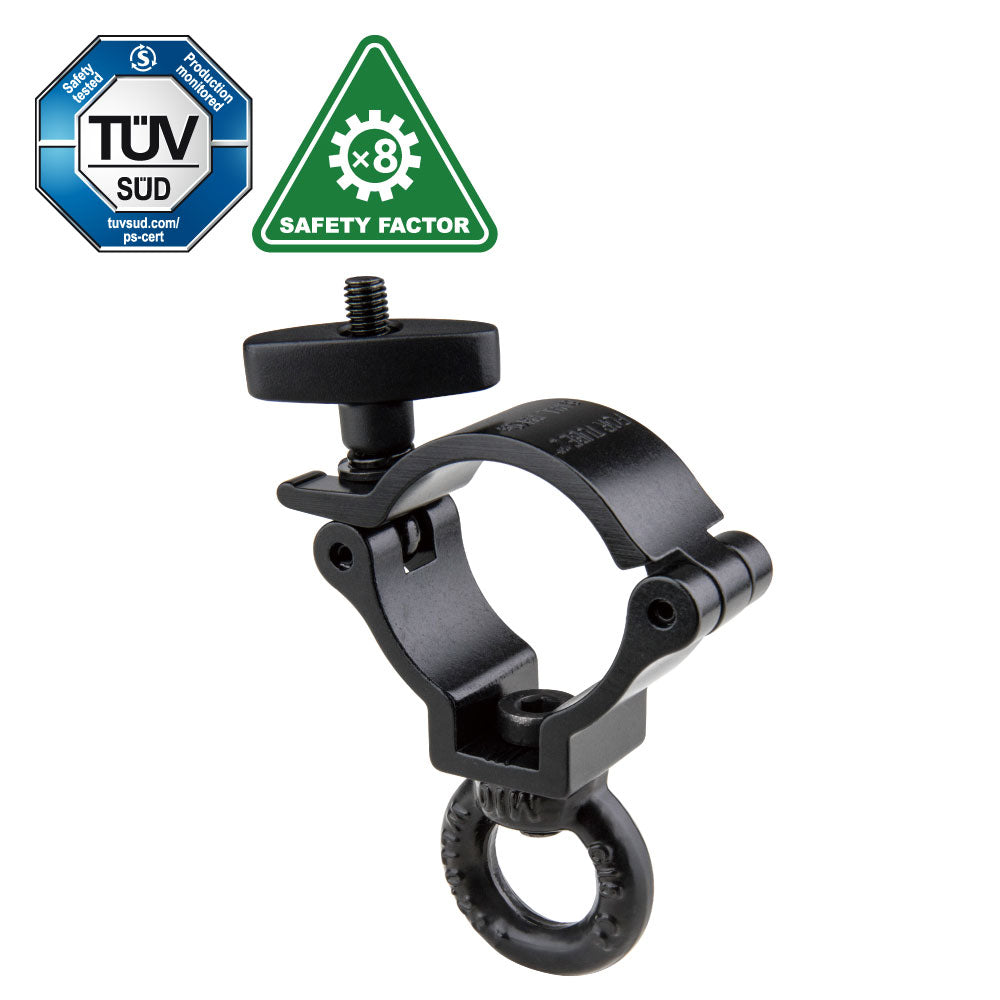

The KCP-903B Eye Ring Opening Burger Coupler adds a fixed 25 mm eye ring to the slim Burger clamp profile for 48-51 mm tube. It gives lightweight fixture rigs a ready point for safety bonds, shackles, or secondary suspension lines while keeping the same 200 kg Working Load Limit (WLL) as the standard Burger Coupler.
Why It Matters
A safety or pickup point should be obvious to the next person inspecting the rig. By building the eye into the coupler, this fitting reduces loose parts and keeps the attachment point exactly where the clamp is placed.
Key Features
Fixed 25 mm eye ring provides a clean attachment point for compatible safety bonds, shackles, or secondary suspension lines.
200 kg Working Load Limit (WLL) keeps the eye ring version aligned with the fixed Burger Coupler's load class.
Slim 240 g aluminum body fits neatly on 48-51 mm tube without adding the bulk of a larger pickup clamp.
Applications
A useful choice for lightweight fixtures, safety cable organization, trade-show truss, studio pipe grids, and compact stage rigs that need an integrated eye point.
Compatibility
Fits 48-51 mm tube and uses M10 bolt and wing nut hardware with a fixed 25 mm eye ring.
Frequently Asked Questions
Can the eye ring be used for a safety bond?
Yes, that is one of the intended uses, as long as the safety bond and every connected part are rated for the complete application.
Why use this instead of adding a separate eye nut?
The integrated eye keeps the attachment point tidy and easier to inspect, with fewer loose parts in the rig.
Does it clamp like the regular Burger Coupler?
Yes. It uses the same Burger-style clamp approach for 48-51 mm tube, with the eye ring added on top.
