Overview

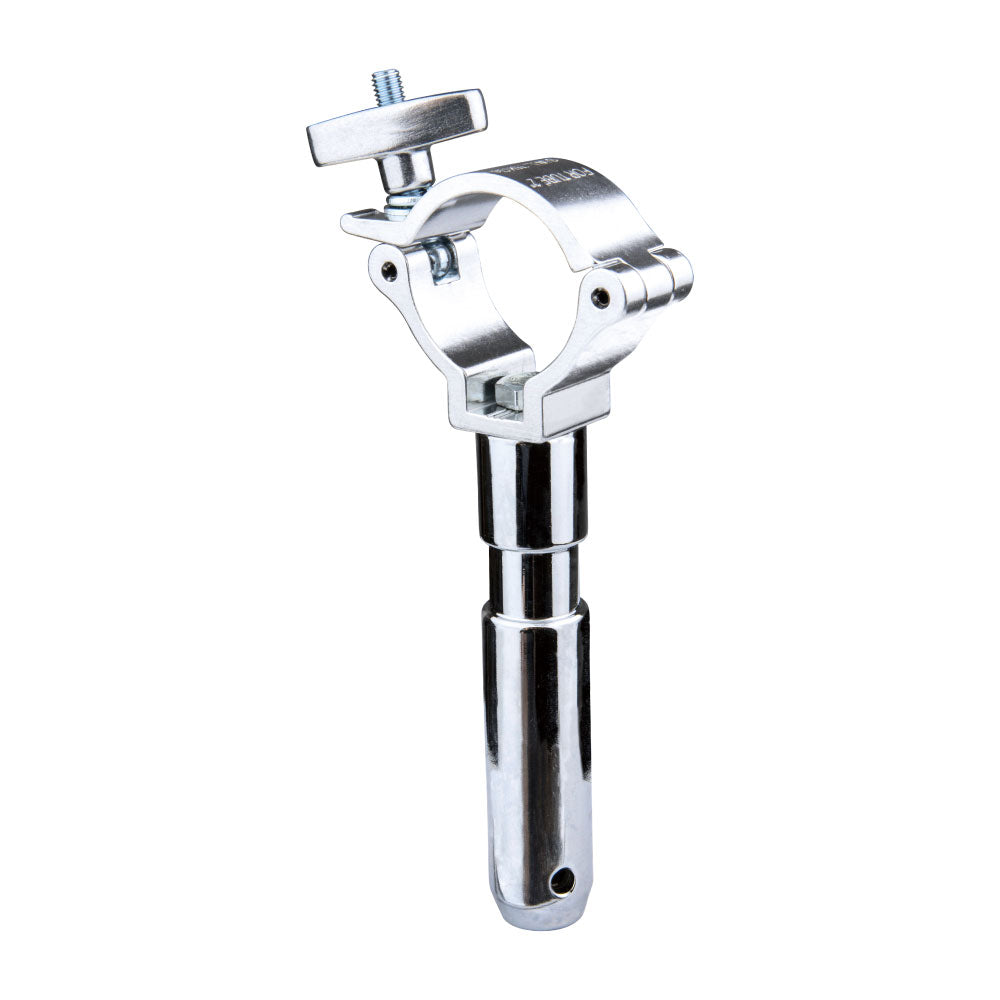

The KUPO KCP-904 Burger 28 mm Spigot Coupler adds a 28 mm / 1-1/8" spigot to 48 to 51 mm truss or pipe. Its slim-profile burger body gives stand receivers and larger grip hardware a compact tube-mounted connection point.

Why It Matters

The 28 mm spigot is the main buying reason. KCP-904 lets crews connect 28 mm socket equipment, build a T-bar, or create a hanging rack from a tube, while the T-shaped handle keeps tightening comfortable during repeated temporary setups.

Key Features

• 28 mm / 1-1/8" spigot supports stand receivers and larger grip hardware
• 48 to 51 mm tube compatibility fits standard 2" truss or pipe
• High-strength tensile 6061-T6 extruded aluminum alloy provides a durable slim body
• T-shaped handle gives a comfortable tightening point
• 200 kg / 440 lb load capacity supports rated 28 mm socket applications

Applications

Use it for T-bars, hanging racks, stand receiver connections, and compact 28 mm spigot points on 48 to 51 mm truss or pipe.

Compatibility

KCP-906 is the 16 mm baby stud sister model and has a different 100 kg rating. Use KCP-904 when the equipment requires a 28 mm socket connection.
