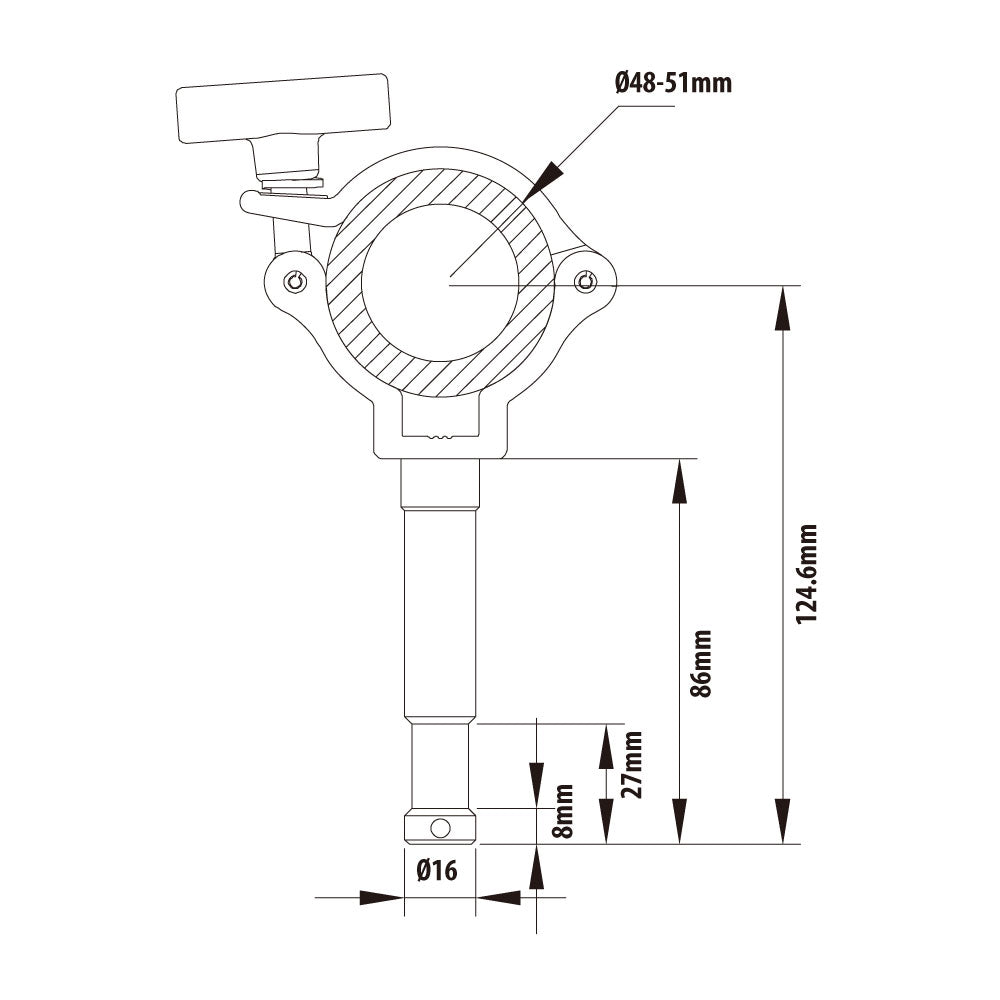

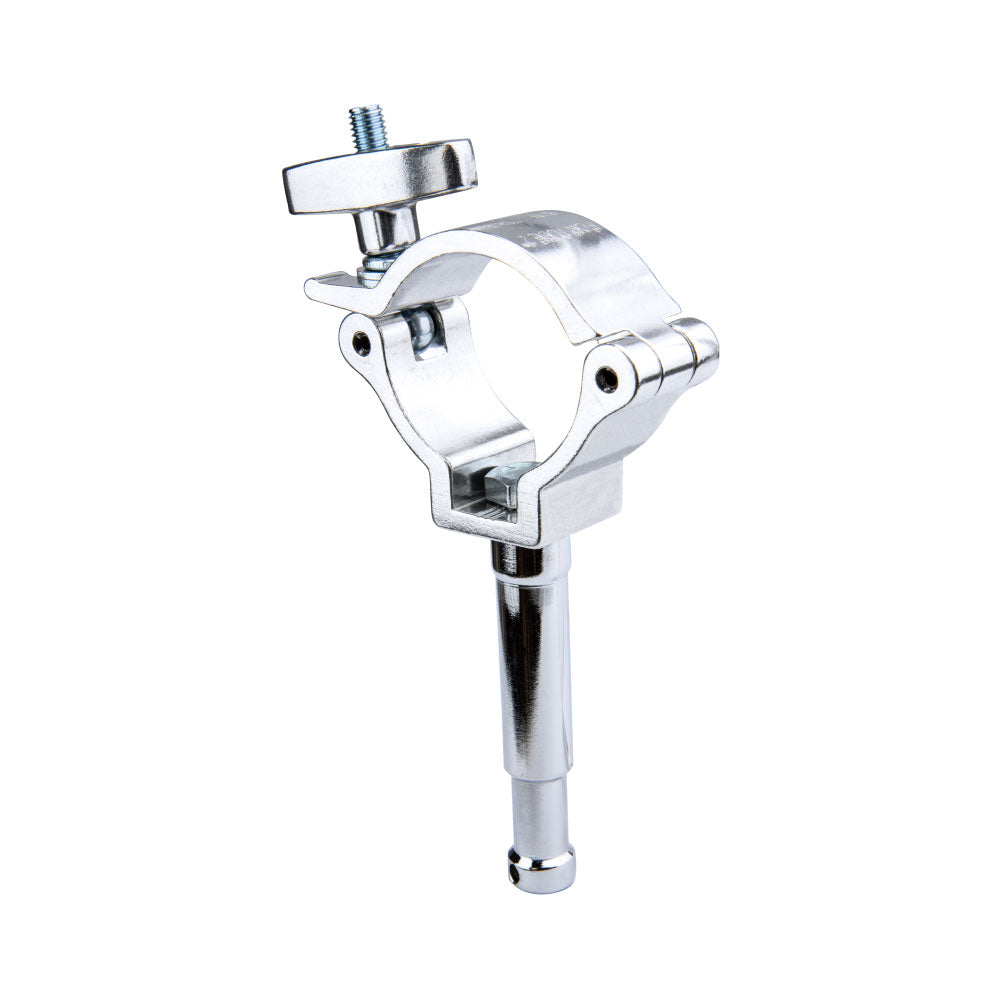

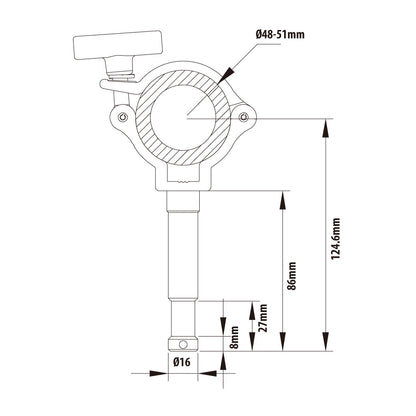

The KUPO KCP-906 Burger 16 mm Stud Coupler adds a 16 mm / 5/8" baby stud to 48 to 51 mm truss or pipe. It gives lights and accessories with 16 mm sockets a direct mounting point from a compact slim-profile clamp.
Why It Matters
Small fixtures do not always need a large coupler, but they do need the correct interface. KCP-906 keeps the clamp compact, adds a standard baby stud, and uses a T-shaped handle that is comfortable when the coupler is moved between positions often.
Key Features
16 mm / 5/8" baby stud supports lights and accessories with 16 mm sockets
48 to 51 mm tube compatibility fits standard 2" truss or pipe
High-strength tensile 6061-T6 extruded aluminum alloy keeps the slim body strong
T-shaped handle supports comfortable hand tightening
100 kg / 220 lb load capacity is specific to this baby-stud version
Applications
Use it for lightweight luminaires, grip heads, and accessories that need a 16 mm baby stud from 48 to 51 mm truss or pipe.
Compatibility
Do not copy the 200 kg rating from KCP-904. KCP-906 is the 16 mm stud version with a 100 kg / 220 lb load capacity.
Frequently Asked Questions
What does KCP-906 mount?
It mounts lights and accessories with a 16 mm socket using the integrated 16 mm baby stud.
What tube size does it fit?
It fits 48 to 51 mm / 1.89" to 2.0" .
Why is the rating lower than KCP-904?
KCP-906 is the baby-stud version and is listed at 100 kg / 220 lb. KCP-904 is the 28 mm spigot version with a different rating.
