Overview

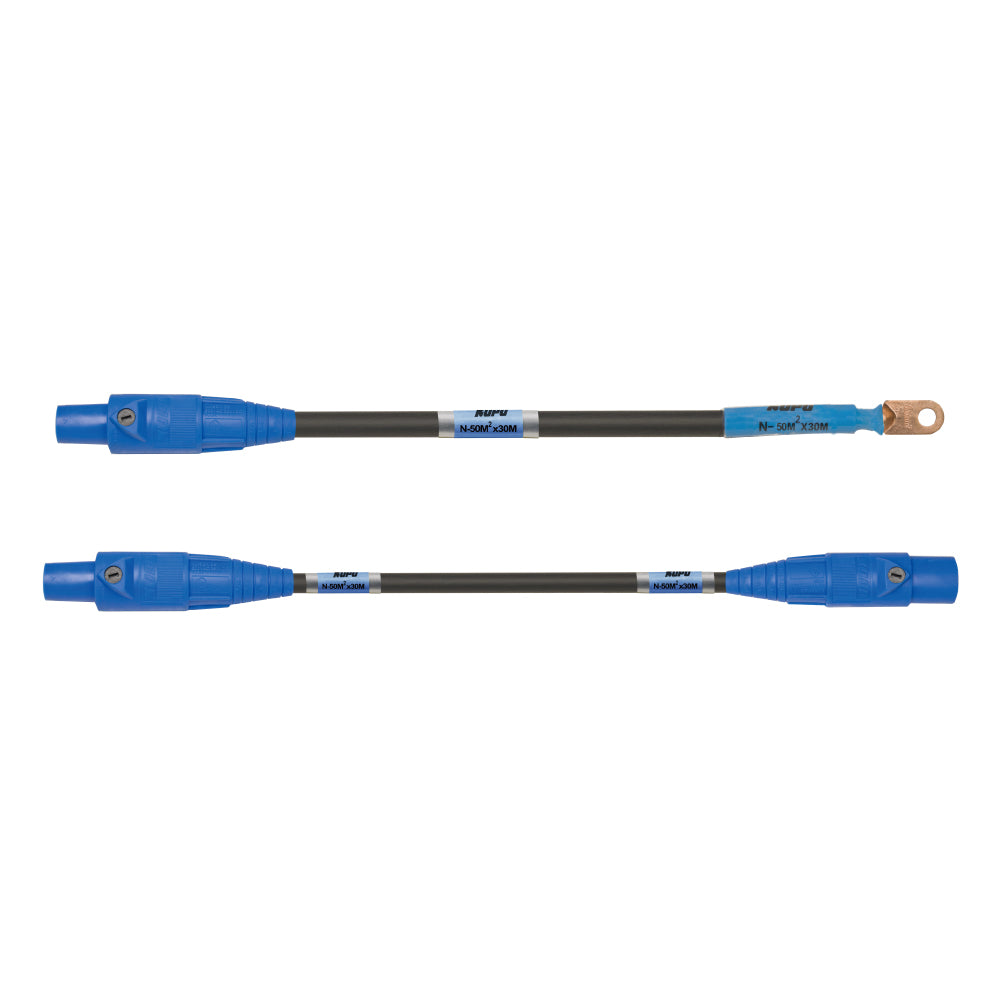

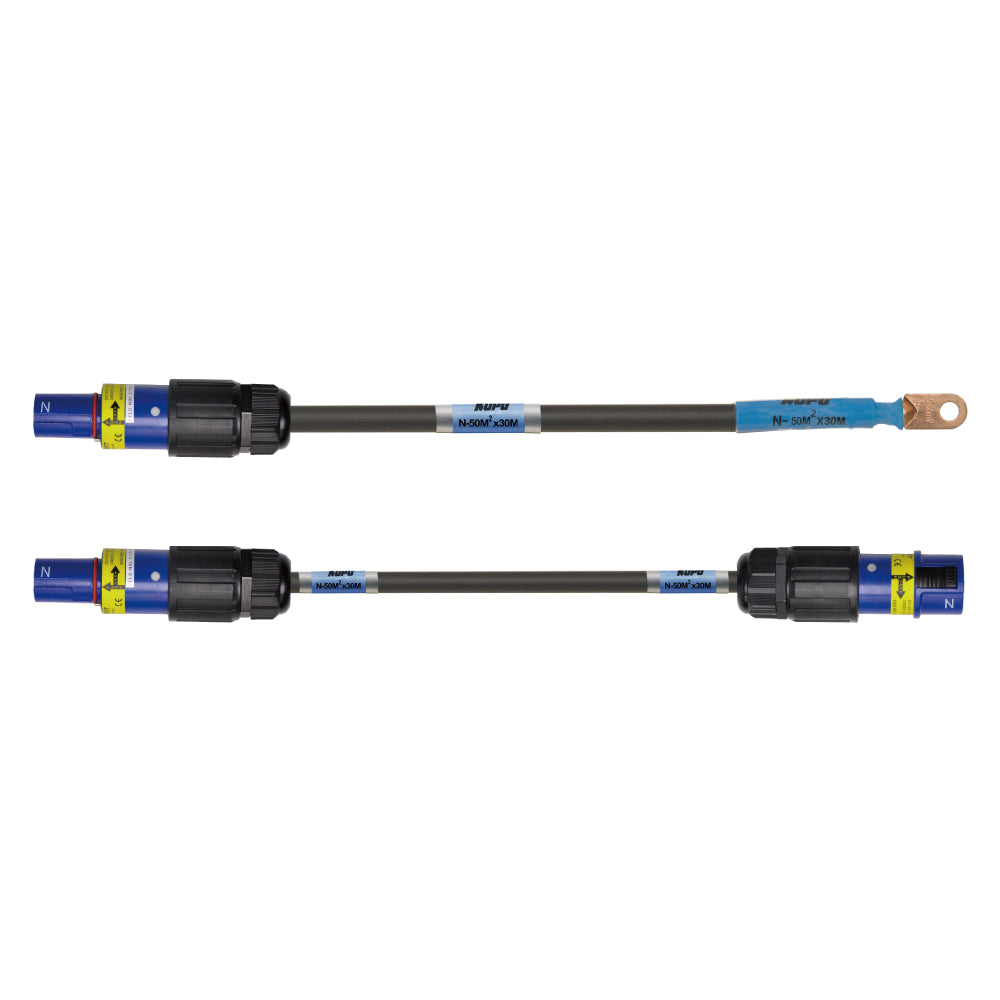

The KUPO KCWPVC1x14 Power Cable is a flexible single-core IV feeder for portable power distribution and fixed installation work. Its fine-stranded copper conductor helps the cable stay manageable during repeated handling, while PVC insulation and a PVC outer sheath give the jacket a clean strip, smooth gland fit, and dependable field durability.
Why It Matters
This 14 mm² size gives crews a smaller single-core option for lower-current feeder paths where flexibility and compact routing matter. The 600 V rating and 105 °C temperature rating make this size useful for professional power builds where the cable has to carry current confidently but still coil, route, and terminate without fighting the crew.
Key Features
- 14 mm² single-core IV copper conductor for feeder and single-pole assemblies
- Approximate ampacity of 105 A with maximum resistance of 1.40 Ohm/km at 20 °C
- PVC insulation and PVC outer sheath with 1.20 mm jacket thickness
- 7.5 mm outer diameter for planning glands, rings, and crossover protection
- Rated 600 V with a 105 °C temperature rating
Applications
KCWPVC1x14 is suited to single-pole feeder runs, cam-style connector assemblies, portable power distribution, fixed installation feeders, and event or industrial environments where a flexible single-core power cable is required.
Compatibility
Use KCWPVC1x14 with properly rated connectors, cable glands, rubber rings, color-coded jacket systems, and cable crossover protection sized for a 7.5 mm outer diameter and the required current load.
