The KUPO KD-300-J Projector Mount is the 17 mm spigot version of the universal projector mount family. It keeps the flexible vortex-pattern base plate and 360° ball-joint positioning of the KD-300, while adapting the stand connection for Japan-style 17 mm receivers.
Why It Matters

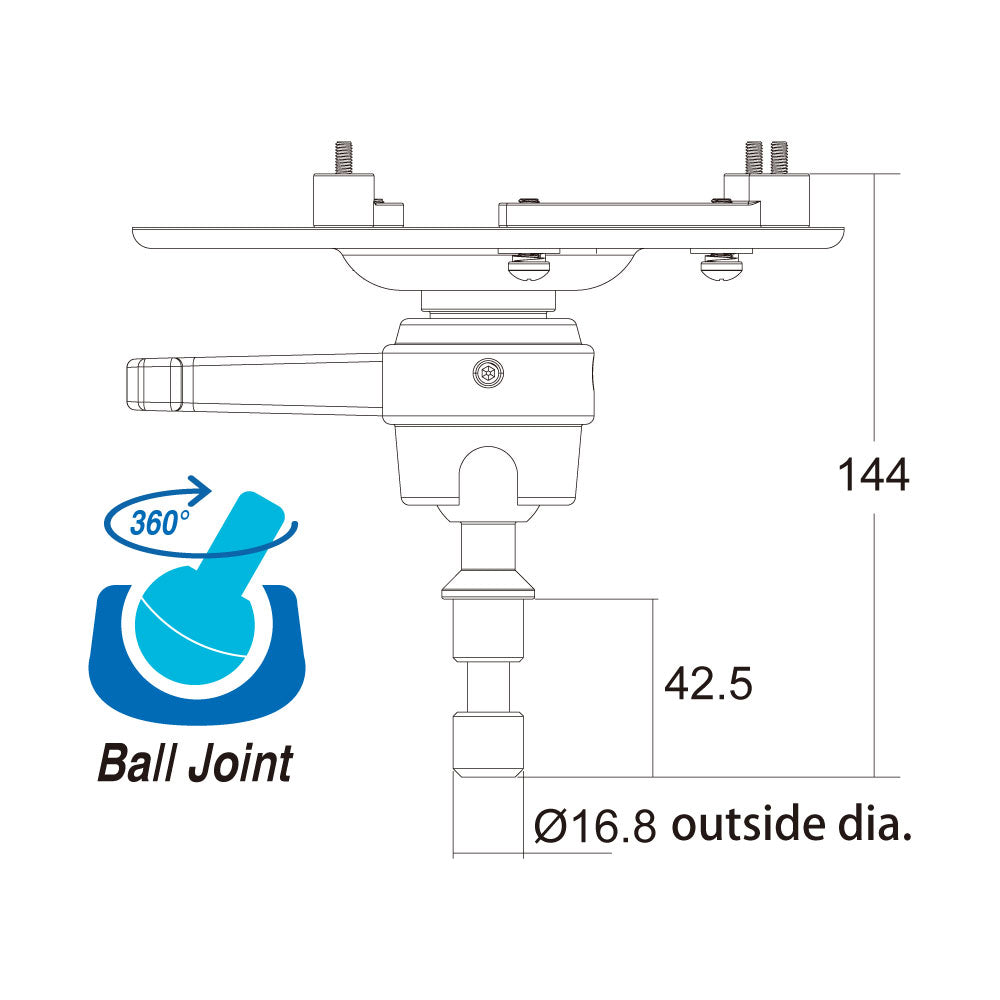

Projector alignment is rarely perfect on the first try. KD-300-J gives installers a slotted base plate for different projector hole patterns, a 27.8 mm ball joint for fine aiming, and a ratchet handle that locks the projector once the image is set.
Key Features
Japan-style 17 mm stud adapts the universal projector platform to 17 mm receiver setups

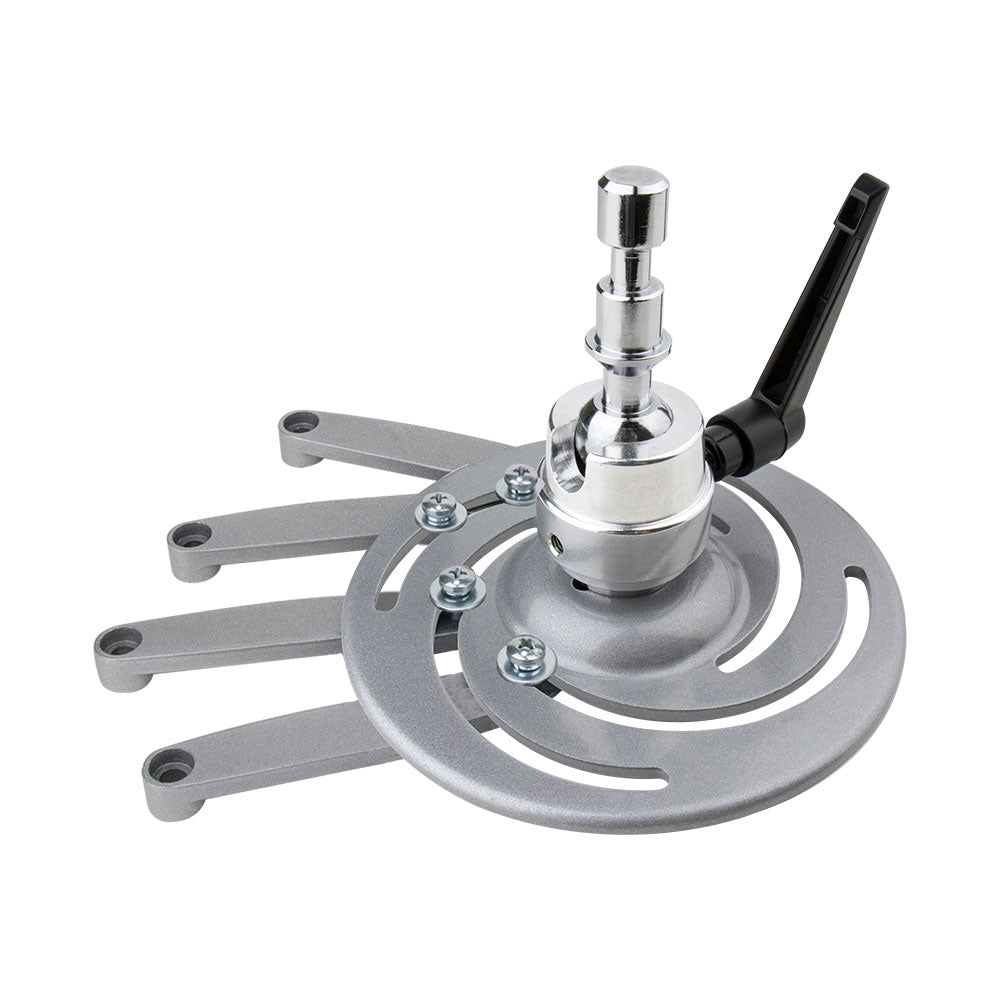

Vortex-pattern base plate accommodates many projector mounting hole layouts
Ball joint allows 360° positioning for image alignment
Ratchet handle provides positive lock after aiming
15 kg load capacity supports compact projector installations
Applications

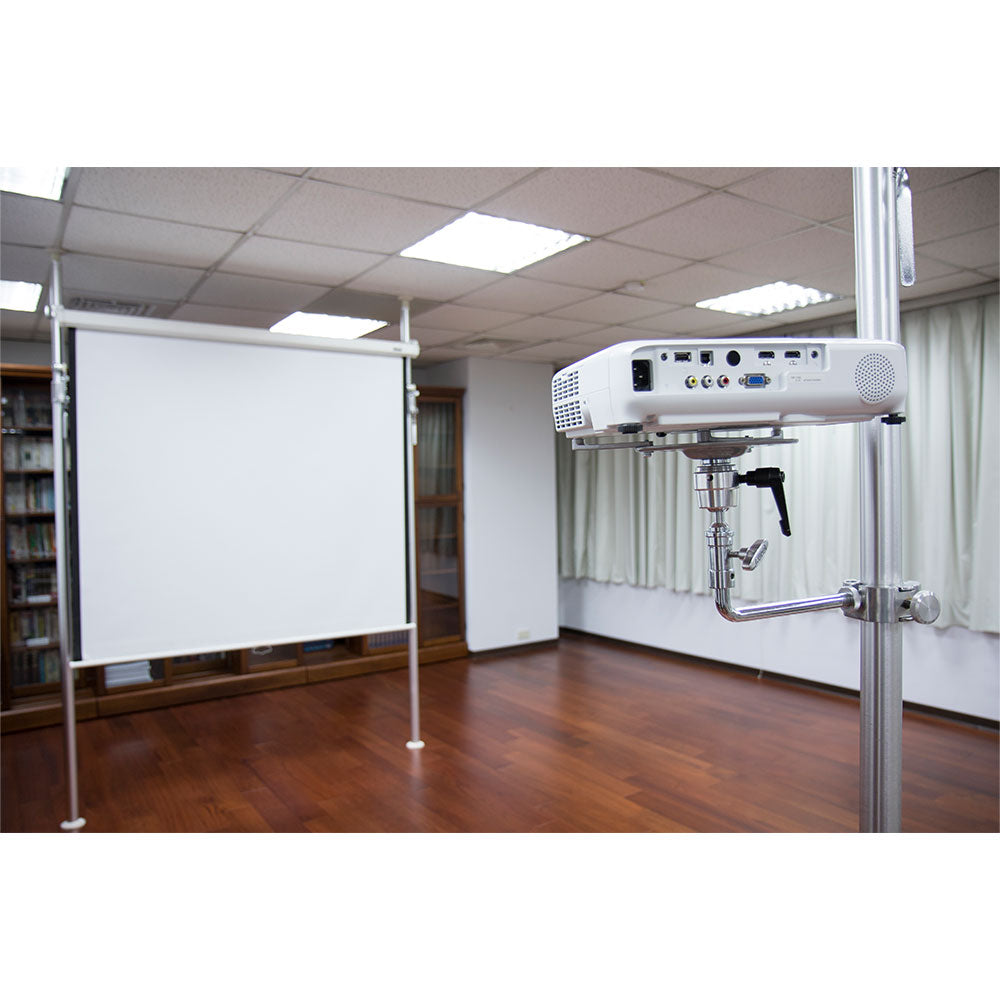

Use it for projector mounting in venues, classrooms, studios, presentations, and installations that use a Japan-style 17 mm receiver interface.
Compatibility
Includes M4 x 15 and M6 x 15 screws, four pieces each. Specified weight: 1.05 kg.
Frequently Asked Questions
What makes KD-300-J different from KD-300?
KD-300-J uses a Japan-style 17 mm stud. KD-300 uses the standard ID 16 mm receiver and OD 28 mm stud arrangement.
How is projector angle adjusted?
A 27.8 mm ball joint gives 360° positioning, then the ratchet handle locks the angle.
What screws are included?
The specification lists M4 x 15 and M6 x 15 screws, four pieces each.
