Overview

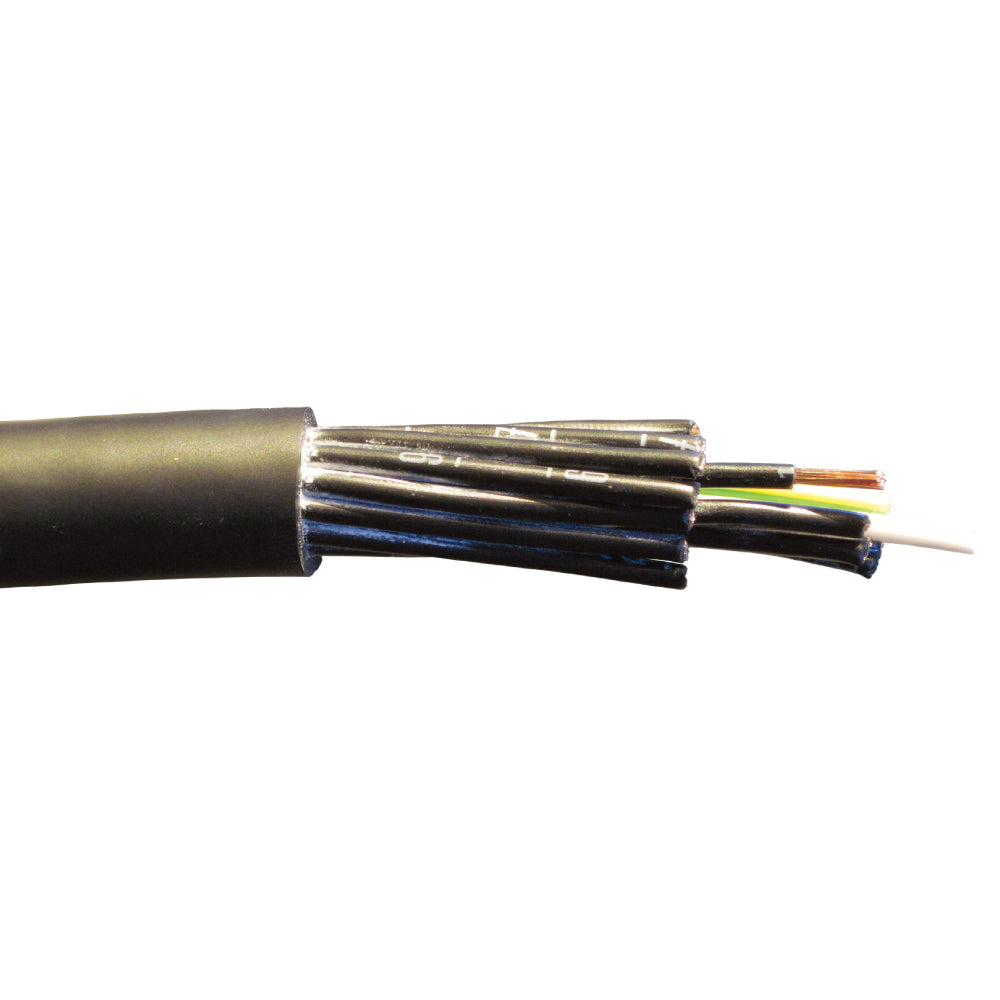

The KUPO KHPC18x2.5 Multi-Core 18 Cable is the bulk-cable member of the KUPO 18-core power family, built for portable entertainment rigs that distribute six circuits through one manageable run. Class 5 fine-stranded copper keeps the cable flexible, while the self-extinguishing PVC outer jacket helps protect the cable through repeated load-in and load-out cycles.
Why It Matters
For stage and event power, one well-built 18-core cable can be cleaner than managing a bundle of separate lines. KHPC18x2.5 gives technicians a raw cable option for custom assemblies, service replacement, or shop-built runs that need to match the EXE18 extension and TF18 break-out family.
Key Features

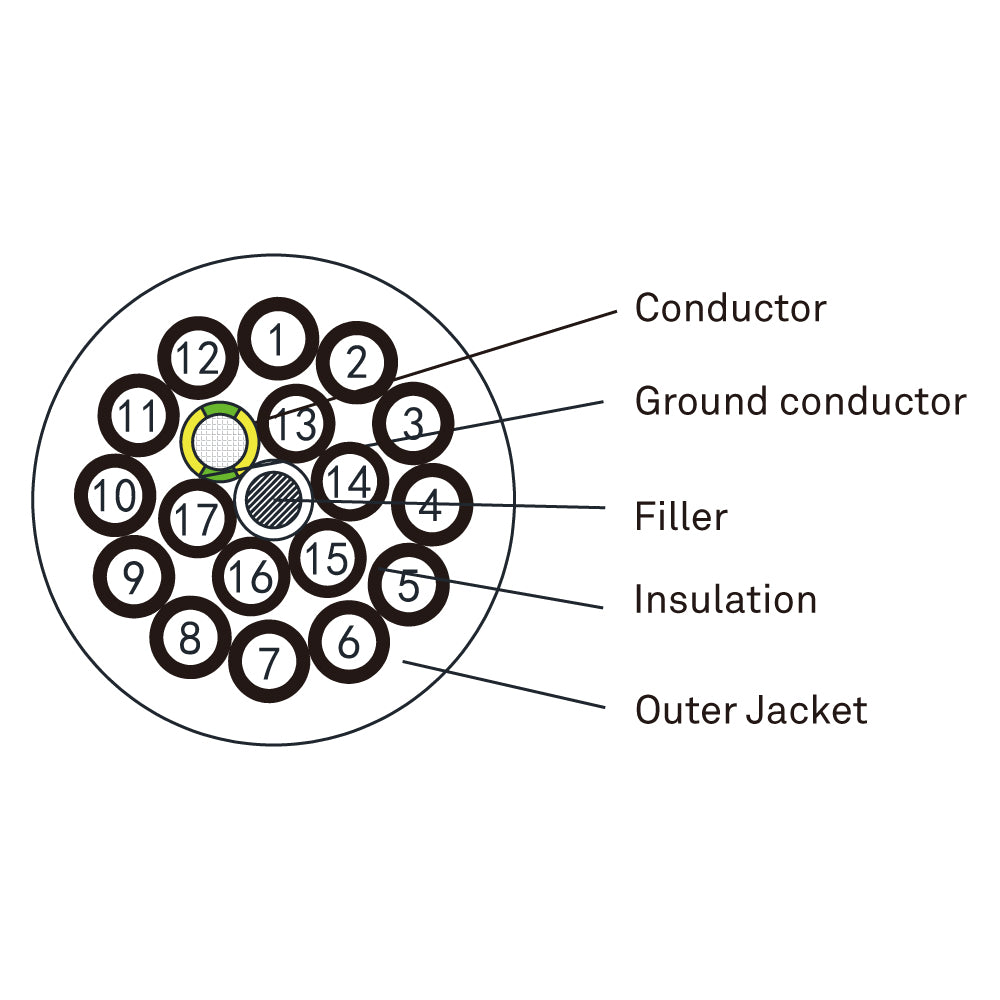

- 18 x 2.5 mm² construction, approximately 14 AWG
- Stranded class 5 copper conductors, 48 strands x 0.25 mm copper
- PVC insulation with self-extinguishing, flame-retardant PVC outer jacket
- Rated 300/500 V with 2000 V test voltage for 5 minutes to IEC 60227
- 20.4 mm ±0.5 mm outer diameter with -15 to 70 °C working temperature
Applications
KHPC18x2.5 is suited to bulk multicore cable builds, six-circuit entertainment power distribution, indoor touring rigs, shop-built cable assemblies, replacement cable stock, and systems that pair with EXE18 and TF18 family assemblies.
Compatibility
Use KHPC18x2.5 where an 18 x 2.5 mm² multicore cable is required. Sister assemblies include EXE18/2.5 extensions with PLS-5219LM to PLS-5219LF terminations and TF18/2.5 fan-out assemblies.
