Overview

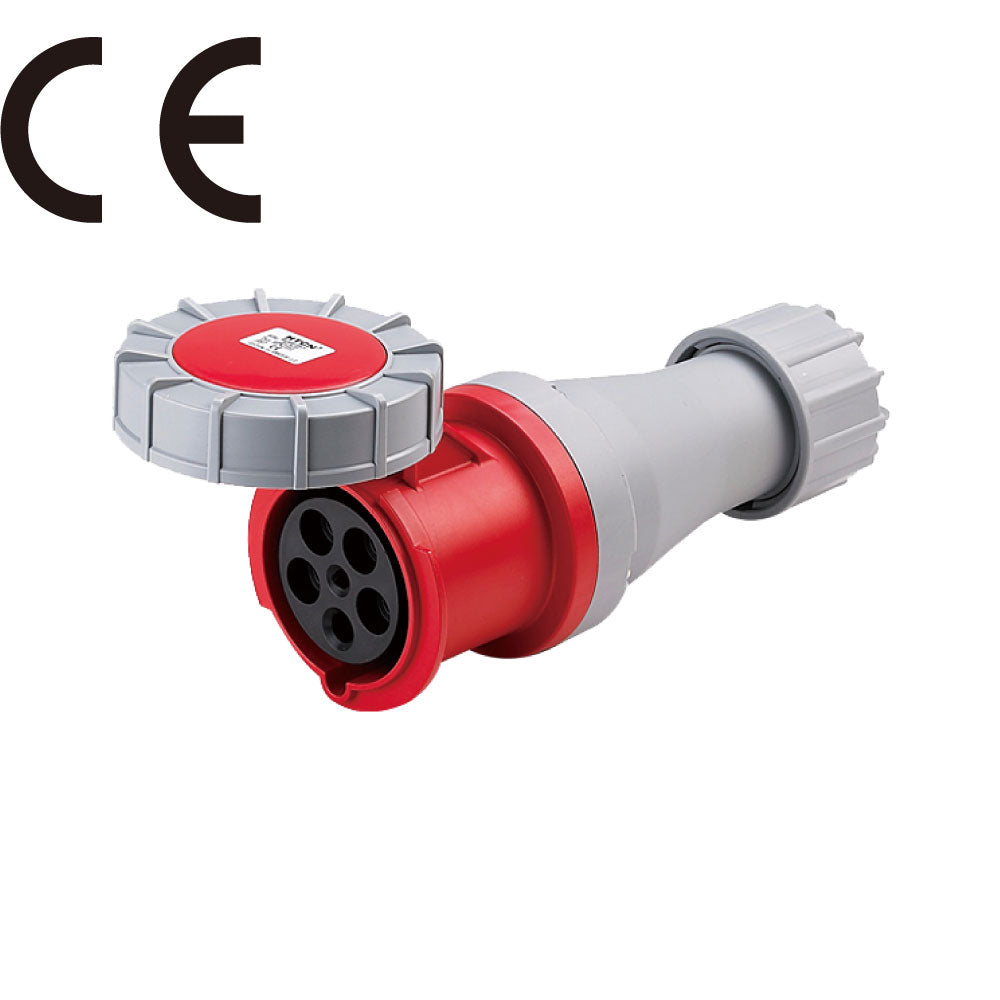

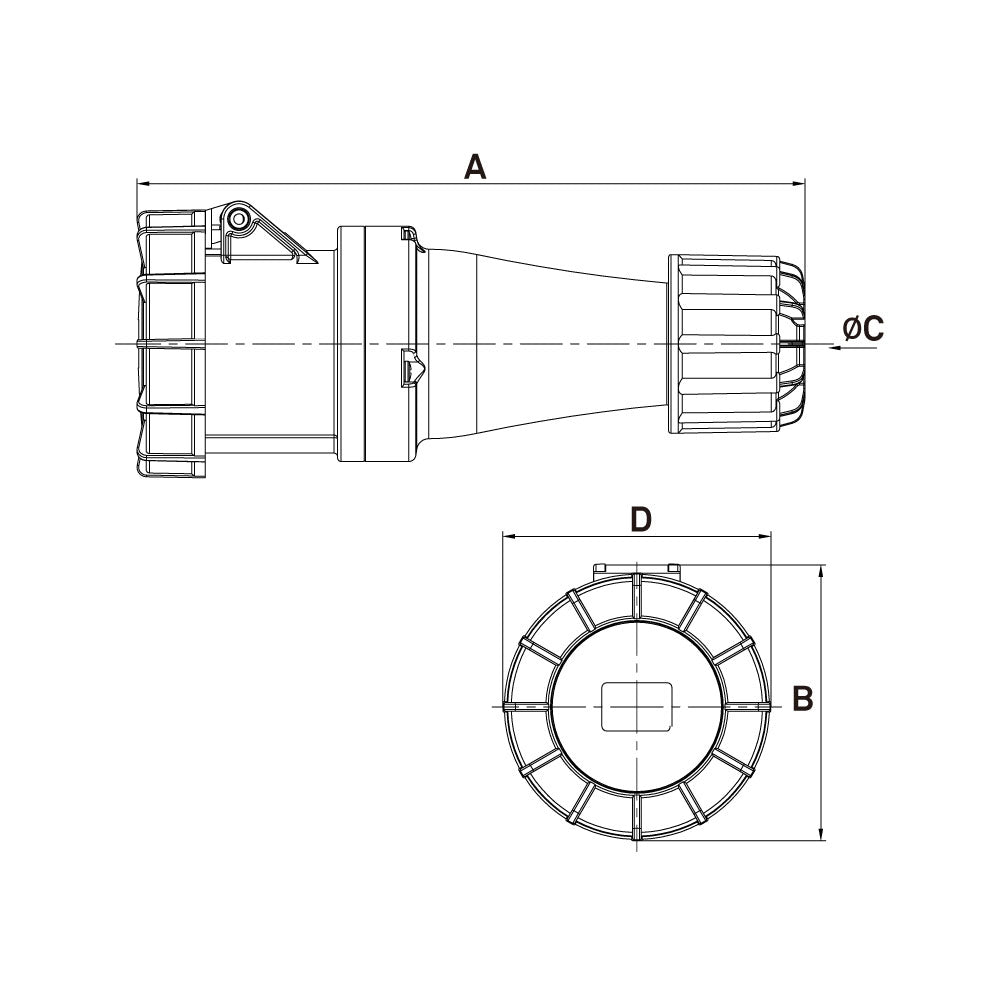

For heavy industrial installations and primary distribution systems demanding high-current reliability, the KUPO KHTN2451 delivers a 125 A CEE form connector (inline female) built to IEC (International Electrotechnical Commission) 60309-1 and 60309-2 standards. The flame-retardant PA6 (Polyamide 6) Nylon housing and nickel-plated brass contacts ensure durable, low-resistance performance, while the IP67 (Ingress Protection 67) watertight rating and keyed earth contact at the 6-hour clock position provide correctly matched connections throughout the 380-415 V voltage class.

Key Features

• Protective earth engages first and releases last, ensuring the ground path is established before live contacts connect
• Keyed earth contact at the 6-hour clock position prevents cross-mating with incompatible voltage systems
• IP67 watertight housing withstands temporary immersion up to 1 meter and complete dust ingress for harsh outdoor and wet environments
• Rugged screw-type coupling maximizes mechanical strength and sealing integrity for stable performance in demanding conditions
• Flame-retardant PA6 (Polyamide 6) Nylon housing provides high impact resistance, electrical insulation, and self-extinguishing properties
• Nickel-plated brass contacts deliver corrosion resistance and reliable low-resistance connections at sustained 125 A loads
• All terminal screws face the same direction for faster, more intuitive wiring
• Anti-loosening fin structure maintains a secure connection even under vibration
• Red-coded housing identifies the 380-415 V voltage class per international IEC 60309 color convention
• Rated for operation from -25 to 40 °C

Standards

CE marked: Low Voltage Directive 2014/35/EU; IEC/EN 60309-1: 1999 +A1:2007 +A2:2012. General requirements for industrial plugs, socket-outlets and couplers; IEC/EN 60309-2: 1999 +A1:2007 +A2:2012. Dimensional compatibility requirements for pin and contact-tube accessories; RoHS Compliant: Directive 2011/65/EU and (EU)2015/863; REACH Compliant: Regulation No 1907/2006, Article 33(1) Obligation; IP67 Watertight. Match standards and compliance requirements to the local electrical code before installation.

Applications

Suitable for temporary and permanent power distribution on construction sites, three-phase heavy machinery, motor drives, and HVAC (Heating, Ventilation, and Air Conditioning) systems, welding equipment and pump station power supply, heavy industrial main distribution feeds and generator connections, site main incomers and primary power infrastructure, cable assemblies, extension leads, and portable equipment connections, and entertainment and live event production.

Compatibility

The KUPO KHTN2451 is manufactured to IEC 60309-1 and IEC 60309-2 standards, ensuring dimensional compatibility with CEE form connectors from all compliant manufacturers. The 6-hour clock position earth contact permits mating only with connectors of the same 380-415 V voltage class, preventing cross-connections between incompatible electrical systems.

Voltage Color Convention

CEE form connectors use internationally standardized housing colors to indicate voltage class: Yellow for 110-130 V, Blue for 200-250 V, Red for 380-480 V, and Black for 500-690 V. The keyed clock position of the earth contact prevents cross-mating between different voltage systems, ensuring only compatible connectors can be joined. Always verify voltage and frequency compatibility with local electrical supply before installation.
