Product Description
Overview

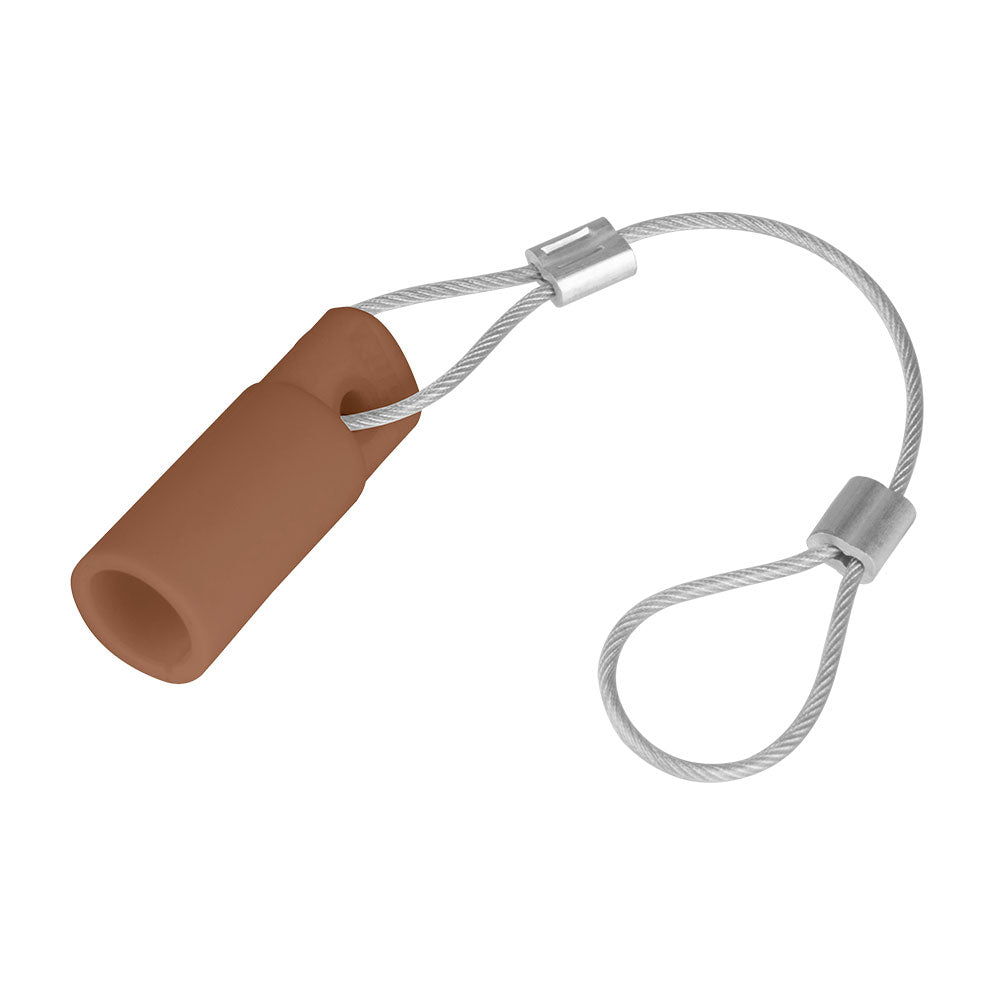

KL-15FPCBN provides a brown-coded cover for the KUPO K-LOK 150 A inline female connector. The cap is purpose-shaped for the connector profile and remains tethered to the cable, supporting orderly handling in IEC-oriented power inventories.
Why It Matters
Brown-coded sets are common in IEC-based inventories, where consistent color at every cable end reduces sorting errors. This cap preserves that visual system while protecting the connector whenever the run is broken down.
Key Features
- Connector-Specific Fit: Purpose-shaped for the K-LOK 150 A inline female connector rather than used as a generic cable-end cover.
- Santoprene TPV Construction: Flexible, durable material rated up to 105 °C tolerates repeated fitting and removal in touring and rental workflows.
- Tethered Handling: The lanyard keeps the protective cap with its cable assembly through setup, operation and strike.
- Brown Identification: Matches brown-coded connector sets used in many iec-oriented power systems.
- Listed Performance: UL Enclosure Types 3R environmental rating with HB / UL94 flame class.
Applications
Intended for touring power looms, rental cable inventories, temporary distribution and fixed-installation service leads using KUPO K-LOK 150 A inline female connectors. The brown finish matches brown-coded connector sets used in many IEC-oriented power systems.
Compatibility
Fits KUPO K-LOK 150 A inline female connectors and is designed to complement compatible cam-type connector systems. It is shaped specifically for the 150 A inline female connector and should not be substituted for the male-cap profile. Correct seating supports NEMA 3R environmental protection while the connector is not in service.
Frequently Asked Questions
Does the brown cap work with IEC-oriented cable color identification?
Brown can support an IEC-oriented phase-identification plan, but the actual circuit must still be verified from system labeling and electrical documentation.
What confirms that KL-15FPCBN is the female-connector version?
The KL-15FPC prefix identifies the cap for a 150 A inline female connector. The corresponding male-connector family uses the KL-15MPC prefix.
Are the cap and lanyard dimensions listed in the catalog?
Yes. The cap is 59.9 mm long with a listed 21.8 mm diameter, while the lanyard assembly measures 243.3 mm and uses a 25.4 mm attachment ring.
Why not use an unshaped rubber cover on the connector?
A generic cover may not seat consistently on the connector profile. This Santoprene TPV cap is designed around the K-LOK 150 A female interface and supports NEMA 3R protection when correctly fitted.
