Product Description
Overview

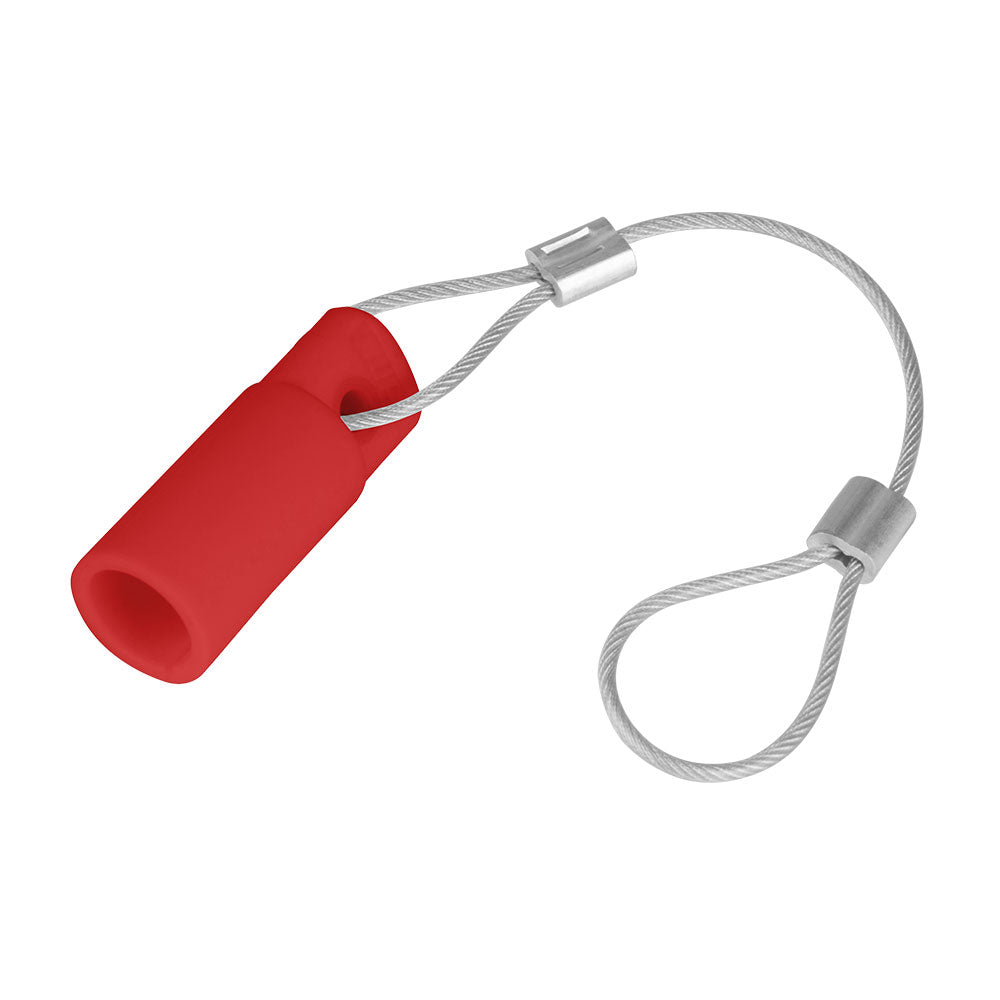

KL-15FPCR protects a KUPO K-LOK 150 A inline female connector and adds an unmistakable red identifier at the cable end. The Santoprene TPV cap seats securely when the connector is parked, while the lanyard keeps it attached through repeated load-ins and strikes.
Why It Matters
A disconnected single-pole connector is most vulnerable during handling and storage. The red cap protects that interface and also helps crews find the correct cable group quickly when several assemblies are coiled together.
Key Features
- Connector-Specific Fit: Purpose-shaped for the K-LOK 150 A inline female connector rather than used as a generic cable-end cover.
- Santoprene TPV Construction: Flexible, durable material rated up to 105 °C tolerates repeated fitting and removal in touring and rental workflows.
- Tethered Handling: The lanyard keeps the protective cap with its cable assembly through setup, operation and strike.
- Red Identification: Gives crews a strong visual marker when separating circuits or phase groups.
- Listed Performance: UL Enclosure Types 3R environmental rating with HB / UL94 flame class.
Applications
Intended for touring power looms, rental cable inventories, temporary distribution and fixed-installation service leads using KUPO K-LOK 150 A inline female connectors. The red finish gives crews a strong visual marker when separating circuits or phase groups.
Compatibility
Fits KUPO K-LOK 150 A inline female connectors and is designed to complement compatible cam-type connector systems. It is shaped specifically for the 150 A inline female connector and should not be substituted for the male-cap profile. Correct seating supports NEMA 3R environmental protection while the connector is not in service.
Frequently Asked Questions
Will the red KL-15FPC cap fit a 150 A inline female connector?
Yes. KL-15FPCR is purpose-shaped for the KUPO K-LOK 150 A inline female connector and has a listed cap length of 59.9 mm.
Does the red color change the connector's electrical rating?
No. Color is an identification choice for the cable inventory. The cap protects a disconnected connector and does not alter amperage, voltage or the electrical function of the K-LOK assembly.
What dimensions matter when checking the fit?

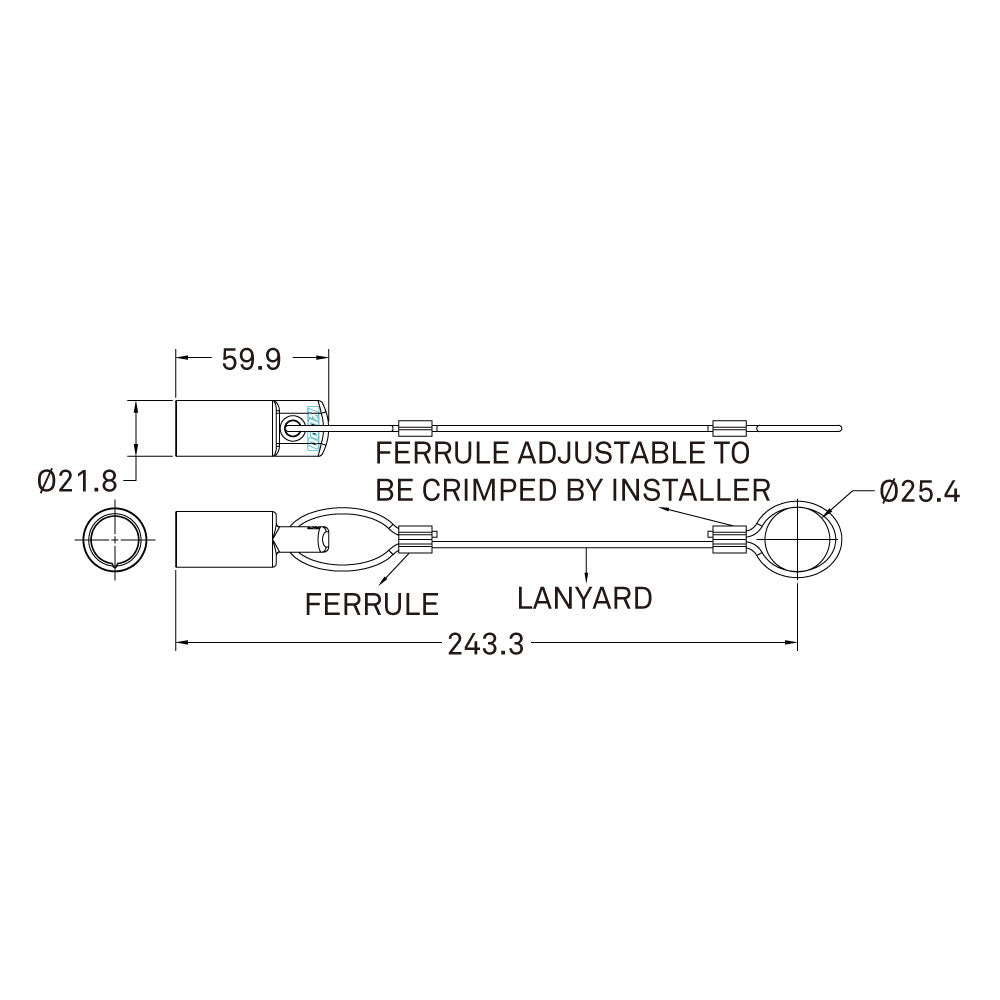

The catalog lists a 59.9 mm cap length, a 21.8 mm cap diameter, a 243.3 mm lanyard assembly and a 25.4 mm attachment ring.
How is the cap kept with the cable during use?
A tether lanyard remains on the cable assembly while the connector is mated. Its adjustable ferrule is crimped by the installer at the selected attachment position.
