Product Description
Overview

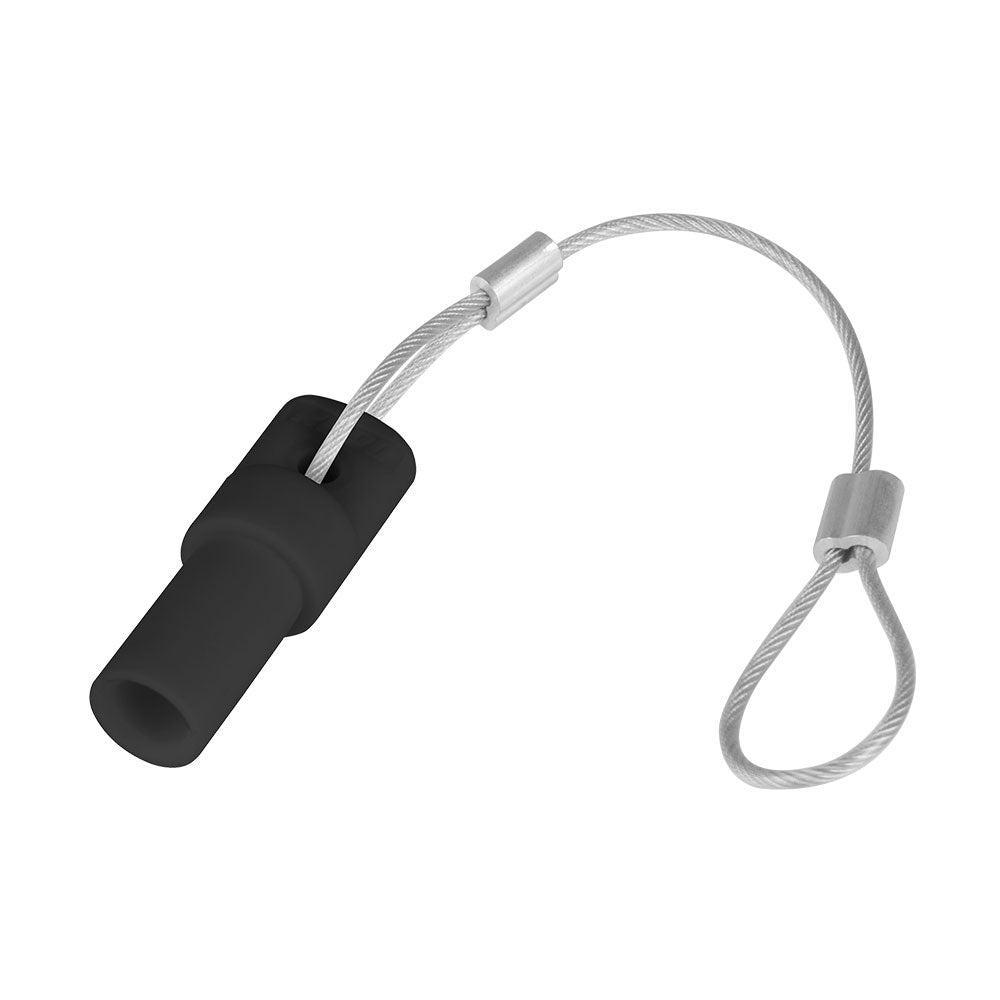

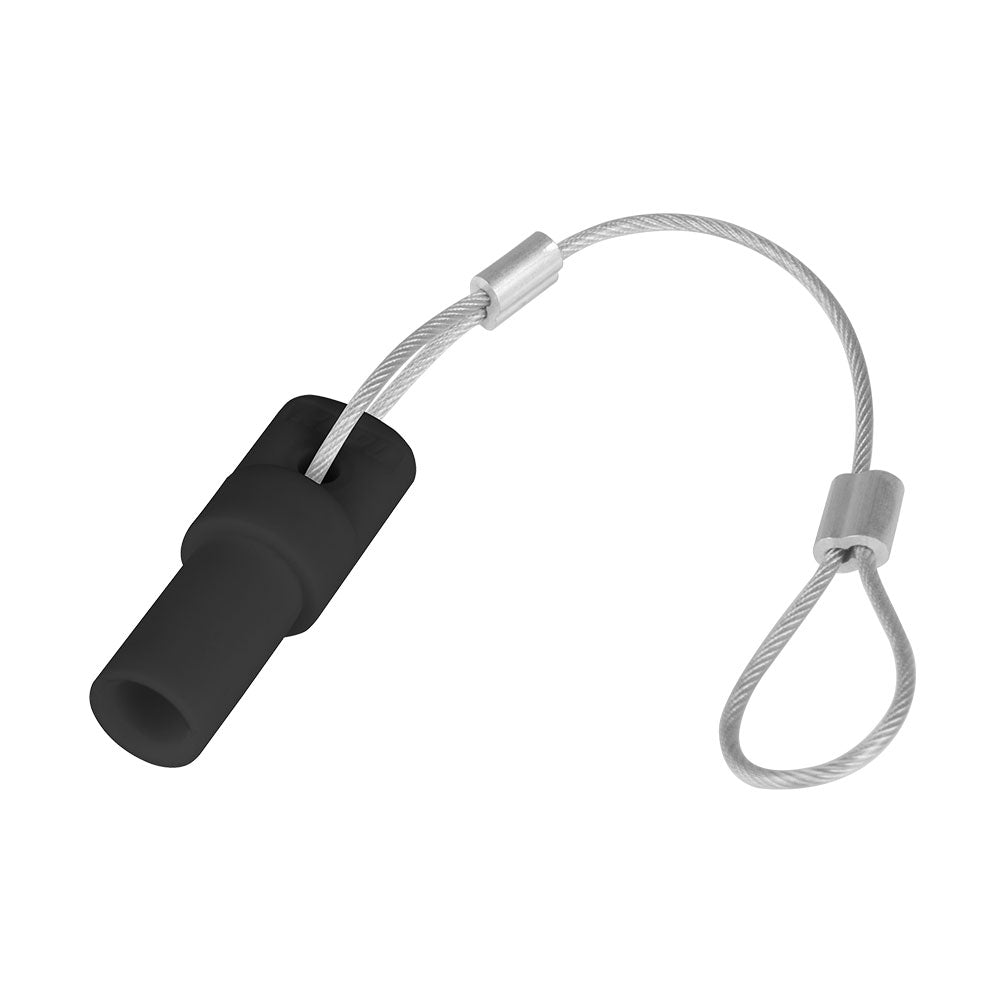

KL-15MPCBK is the black protective cap for a KUPO K-LOK 150 A inline male connector. Molded from Santoprene TPV and retained by an adjustable lanyard, it covers the exposed end of a 150 A inline male connector while it is disconnected without adding a bright visual element to a dark cable assembly.
Why It Matters
The exposed male interface is vulnerable when black touring feeder is coiled, trucked or staged beside distribution equipment. A tethered cap covers that contact end during unpowered periods while preserving the low-visibility appearance expected around stages and broadcast sets.
Key Features
- Connector-Specific Fit: Purpose-shaped for the K-LOK 150 A inline male connector rather than used as a generic cable-end cover.
- Santoprene TPV Construction: Flexible, durable material rated up to 105 °C tolerates repeated fitting and removal in touring and rental workflows.
- Tethered Handling: The lanyard keeps the protective cap with its cable assembly through setup, operation and strike.
- Black Identification: Keeps the cap visually restrained on black cable assemblies and stage-side power runs.
- Listed Performance: UL Enclosure Types 3R environmental rating with HB / UL94 flame class.
Applications
Intended for touring power looms, rental cable inventories, temporary distribution and fixed-installation service leads using KUPO K-LOK 150 A inline male connectors. The black finish keeps the cap visually restrained on black cable assemblies and stage-side power runs.
Compatibility
Fits KUPO K-LOK 150 A inline male connectors and is designed to complement compatible cam-type connector systems. It is shaped specifically for the 150 A inline male connector and should not be substituted for the female-cap profile. Correct seating supports NEMA 3R environmental protection while the connector is not in service.
Frequently Asked Questions
Does the black KL-15MPC cap protect the exposed male contact end?
Yes. KL-15MPCBK is shaped for the KUPO K-LOK 150 A inline male connector, covering its exposed interface while the cable is disconnected and being handled.
Why is black practical for stage and broadcast power looms?
It blends with black cable and equipment, reducing visual distraction while the parked connector remains protected in wings, racks and cable trunks.
What are the listed diameters for the male-connector cap?
The catalog lists a 21.3 mm outer diameter and a 16.3 mm inner diameter. Cap length is 61.4 mm, with a 244.8 mm lanyard assembly.
How should the lanyard ferrule be finished?
The installer positions the adjustable ferrule and crimps it to retain the cap on the cable assembly. This keeps the cap available as soon as the connector is unplugged.
