Product Description
Overview

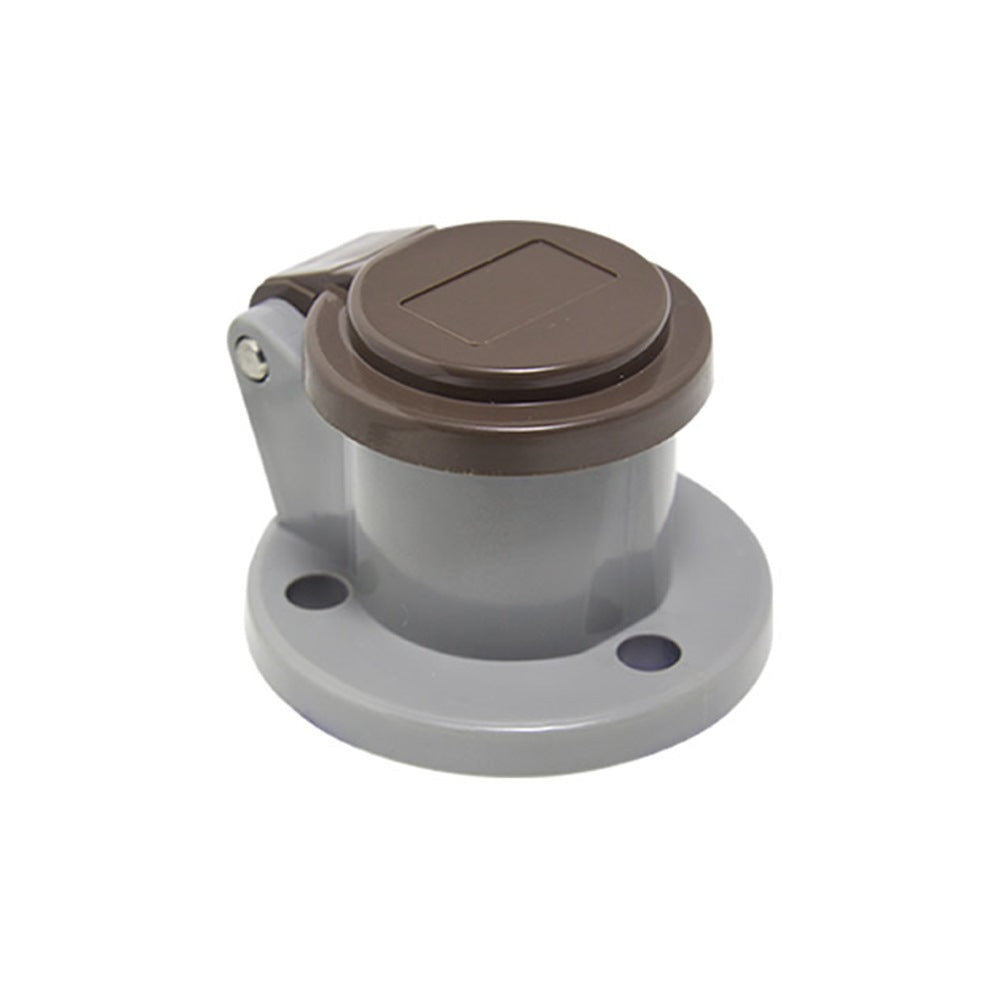

KL-DCBN2 is the brown snap-back dust cover for a 150 A cam-type receptacle. Its high-impact, flame-retardant ABS body closes over the unused receptacle, while a gasket and corrosion-resistant stainless-steel hardware support NEMA 3R environmental protection. The brown lid complements IEC-oriented circuit color organization.
Why It Matters
An open panel receptacle can collect rain, dust and handling debris long before a cable is connected. This cover gives the 150 A receptacle a dedicated closure that opens with the cable connection and snaps back into place afterward. The brown finish also keeps identification visible at the panel rather than only on the cable.
Key Features
- Snap-Back Protection: The lid remains attached to the panel and returns over the receptacle after cable removal.
- NEMA 3R Seal: A supplied gasket helps protect the unused receptacle from falling rain and environmental exposure.
- Durable Construction: Flame-retardant ABS and stainless-steel hardware suit repeated operation on portable distribution equipment.
- Brown Identification: Matches brown-coded sets commonly used in iec-oriented inventories.
- Listed Performance: UL Enclosure Types 3R environmental rating with HB / UL94 flame class.
Applications
Designed for 150 A cam-type receptacles on touring distros, generator panels, rental power equipment, industrial enclosures and temporary event-power systems.
Compatibility
Fits compatible 150 A cam-type panel receptacles using the listed three-hole, 120° mounting pattern. Verify flange dimensions and panel clearance before installation; it is not interchangeable with the larger 400 A KL-DC cover.
Frequently Asked Questions
Does brown make this cover an IEC Line 1 device?
Brown can support IEC-oriented identification, but the cover itself does not define circuit function. Always follow the panel schedule and electrical markings.
Which hardware is supplied with the cover structure?
The assembly uses corrosion-resistant stainless-steel hardware with a high-impact ABS lid and frame.
Can KL-DCBN2 be used on the 400 A receptacle family?
No. The final 2 identifies the 150 A dust-cover family. The 400 A receptacle cover has a larger rectangular frame and different dimensions.
What does NEMA 3R cover in this application?
With the gasket fitted and the lid closed, the assembly is intended to protect the unused receptacle from falling rain and outdoor environmental exposure.
