Overview

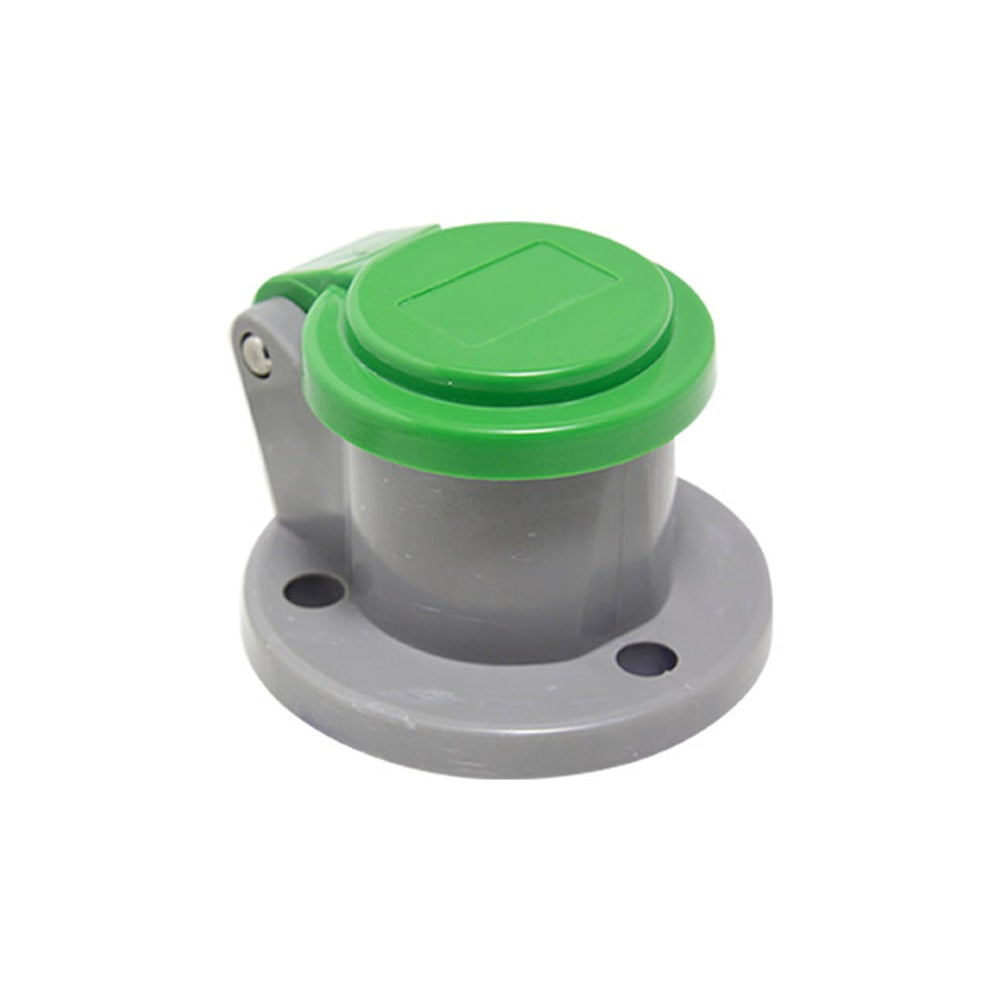

KL-DCG2 is the green snap-back dust cover for a 150 A cam-type receptacle. Its high-impact, flame-retardant ABS body closes over the unused receptacle, while a gasket and corrosion-resistant stainless-steel hardware support NEMA 3R environmental protection. The green lid supports ground or system-specific identification where locally assigned.

Why It Matters

An open panel receptacle can collect rain, dust and handling debris long before a cable is connected. This cover gives the 150 A receptacle a dedicated closure that opens with the cable connection and snaps back into place afterward. The green finish also keeps identification visible at the panel rather than only on the cable.

Key Features

• Snap-Back Protection: The lid remains attached to the panel and returns over the receptacle after cable removal.
• NEMA 3R Seal: A supplied gasket helps protect the unused receptacle from falling rain and environmental exposure.
• Durable Construction: Flame-retardant ABS and stainless-steel hardware suit repeated operation on portable distribution equipment.
• Green Identification: Supports green-coded cable and receptacle identification plans.
• Listed Performance: UL Enclosure Types 3R environmental rating with HB / UL94 flame class.

Applications

Designed for 150 A cam-type receptacles on touring distros, generator panels, rental power equipment, industrial enclosures and temporary event-power systems.

Compatibility

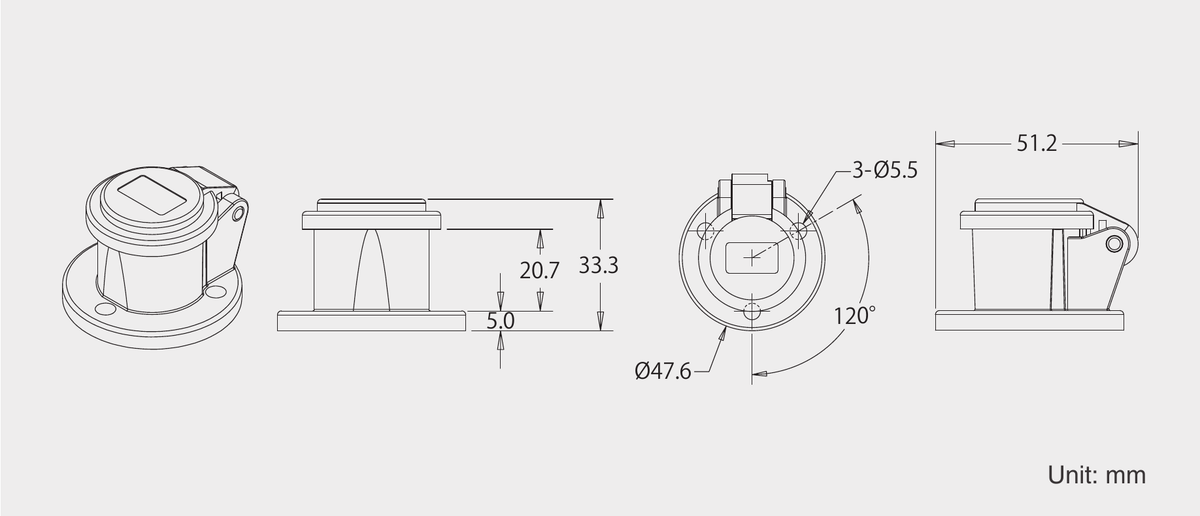

Fits compatible 150 A cam-type panel receptacles using the listed three-hole, 120° mounting pattern. Verify flange dimensions and panel clearance before installation; it is not interchangeable with the larger 400 A KL-DC cover.
