Product Description
Overview

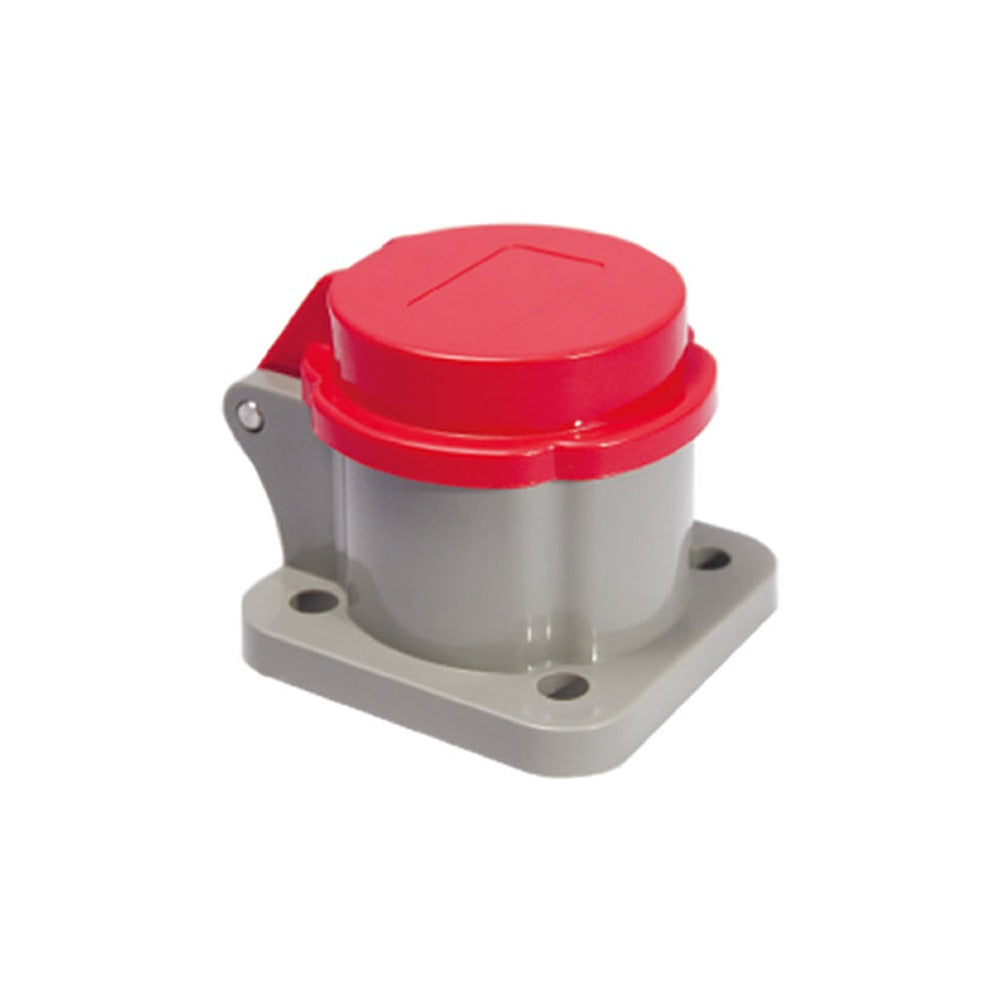

KL-DCR is the red weatherproof snap-back cover for a compatible 400 A cam-type panel receptacle. A high-impact, flame-retardant ABS body, corrosion-resistant stainless-steel hardware and a supplied gasket form a durable closure for the unused receptacle. The standard 57.3 mm square frame supports retrofit installation, and the red lid keeps a red-coded receptacle group visible at the enclosure.
Why It Matters
Panel receptacles may remain exposed through outdoor staging, transport and long periods between connections. The hinged lid stays attached to the enclosure and closes over the receptacle as soon as the feeder is removed, helping exclude falling rain, dust and debris. The red finish keeps the circuit-identification cue visible directly at the connection point.
Key Features
- Snap-Back Closure: The hinged lid remains attached to the panel and covers the receptacle after cable removal.
- Gasketed NEMA 3R Protection: The supplied gasket helps resist falling rain and outdoor exposure when correctly installed.
- Retrofit Frame: The standard 57.3 mm square frame and 38 mm mounting centers suit compatible 400 A cam-type receptacles.
- Red Identification: Provides an immediate marker for red-coded cable or receptacle groups.
- Listed Performance: UL Enclosure Types 3R environmental rating with HB / UL94 flame class.
Applications
Designed for 400 A cam-type receptacles on touring distros, generator panels, rental power equipment, industrial enclosures and temporary event-power systems.
Compatibility
Fits compatible 400 A cam-type panel receptacles using the listed 57.3 mm frame and 38 x 38 mm mounting-center pattern. It is not interchangeable with the smaller circular KL-DCXX2 cover for 150 A receptacles.
Frequently Asked Questions
Does the red lid define the receptacle's electrical phase?
No. Red is an identification color for the cover. Verify phase, voltage and circuit assignment from the receptacle and panel documentation.
Will the red cover fit an existing standard-frame installation?
It uses the catalog's 57.3 mm square frame, four 6.5 mm holes and 38 x 38 mm mounting centers. Compare those dimensions with the existing panel before retrofit.
How does the gasket contribute to the red cover's protection?
The supplied gasket seals the mounted frame against the panel and supports NEMA 3R protection when the lid is correctly closed.
How far does the closed red cover project from the panel?
The listed overall height is 50 mm, with a 48.5 mm body height. Check nearby controls and enclosure edges for lid clearance.
