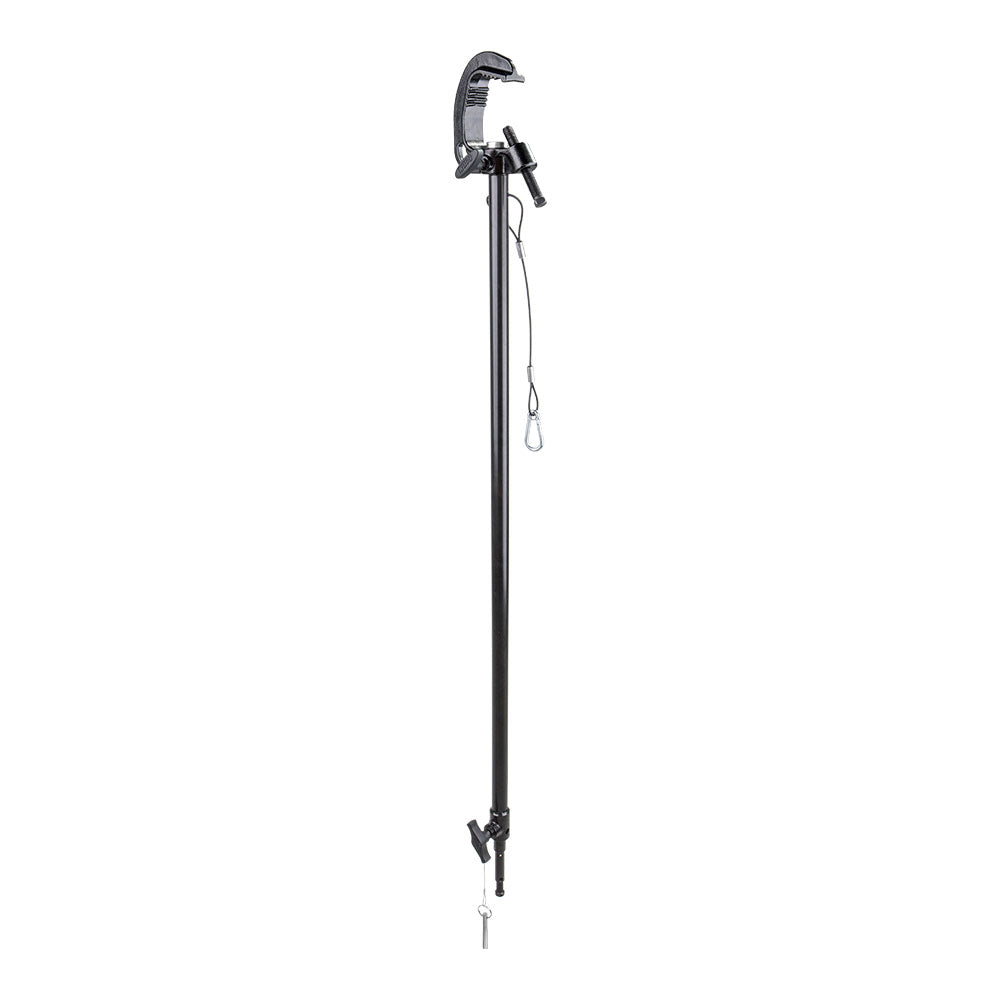

The KLHB-0103 is a short lightweight telescopic hanger for mounting fixtures under 15 kg from overhead pipe. Its matt black powder-coated solid steel body clamps to 35-65 mm pipe, then extends through a controlled telescopic range to place a 5/8" (16 mm) baby pin where the light needs to hang.
Why It Matters
Lightweight fixtures often need a small drop from pipe without bringing in a full-size hanger. This baby pin version gives LED panels, fluorescents, and compact lights a familiar receiver-to-pin workflow.
Key Features
15 kg (33 lb) Working Load Limit (WLL) suits lightweight fluorescent fixtures, LED lights, and compact production loads.
Telescopic length range of 1.5 feet to 3 feet (53.3 cm to 91.4 cm) lets crews set the drop precisely for the room and fixture position.
Integrated iron casting clamp grips 35-65 mm pipe for use on common studio and venue overhead structures.

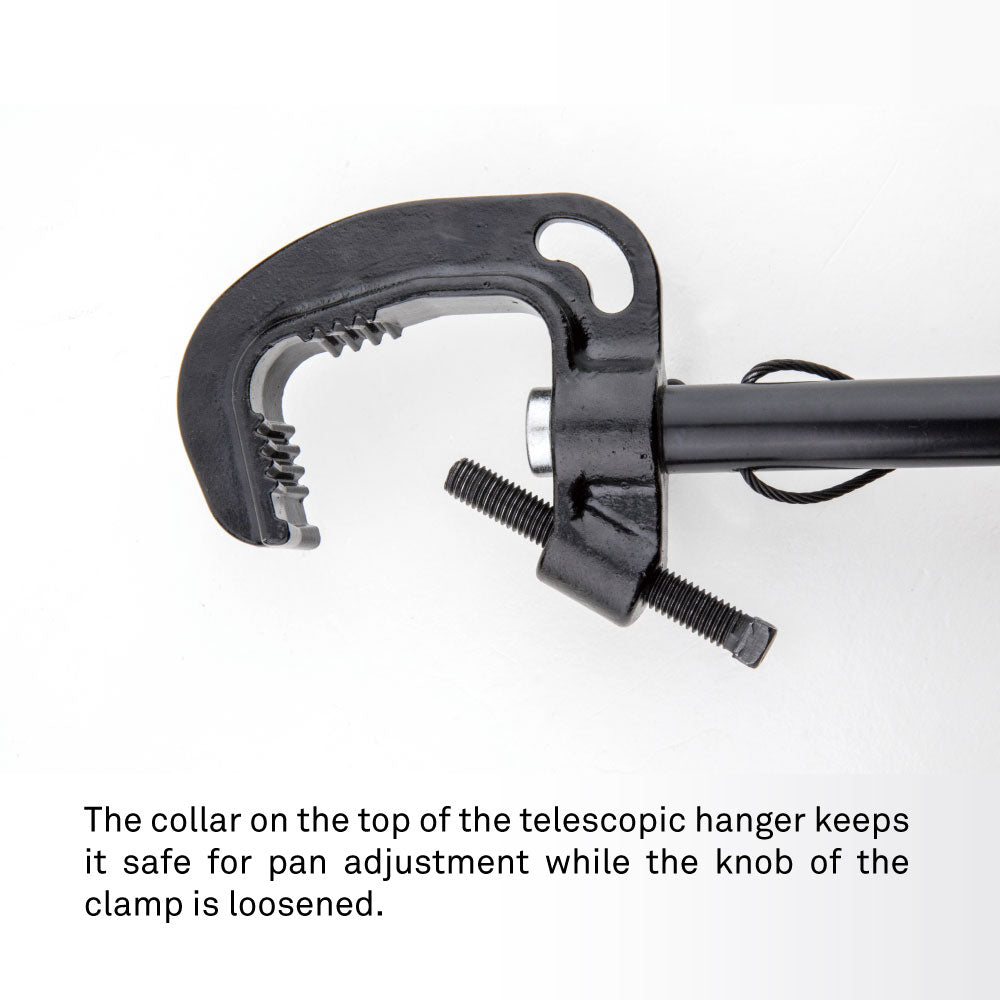

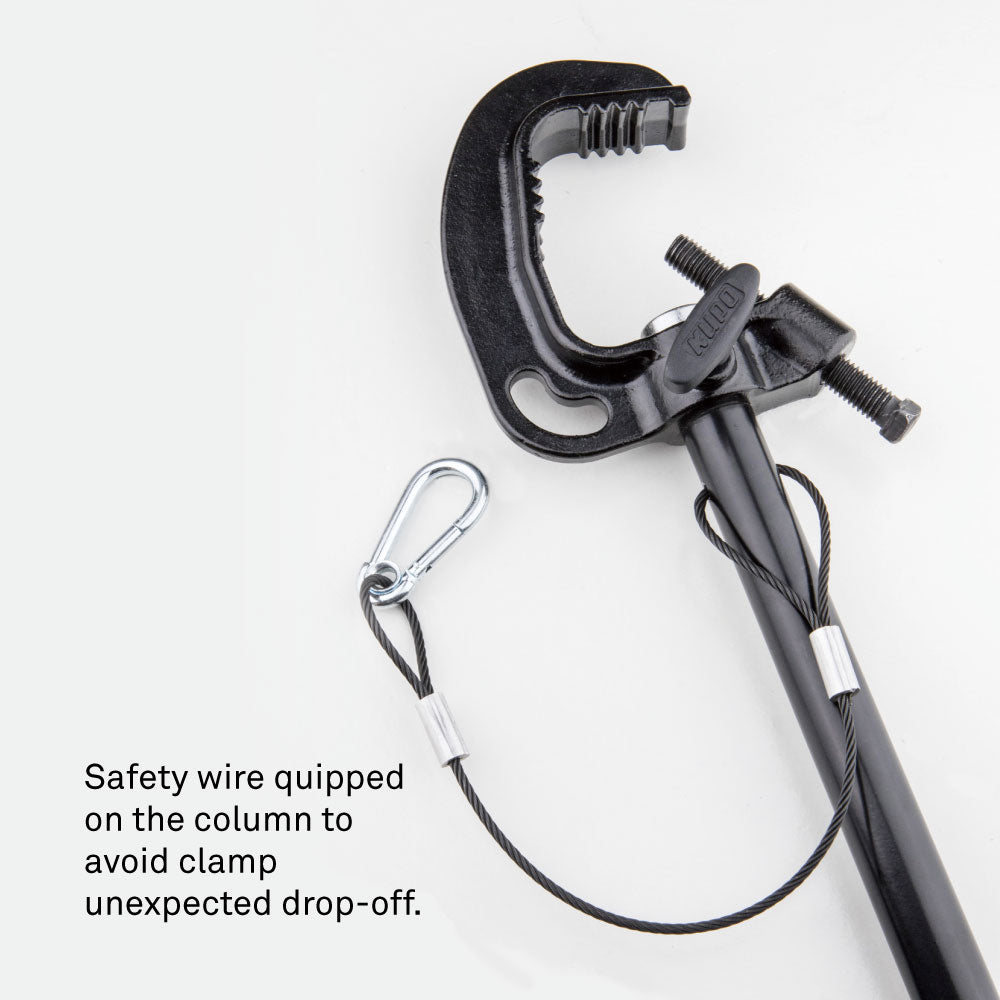

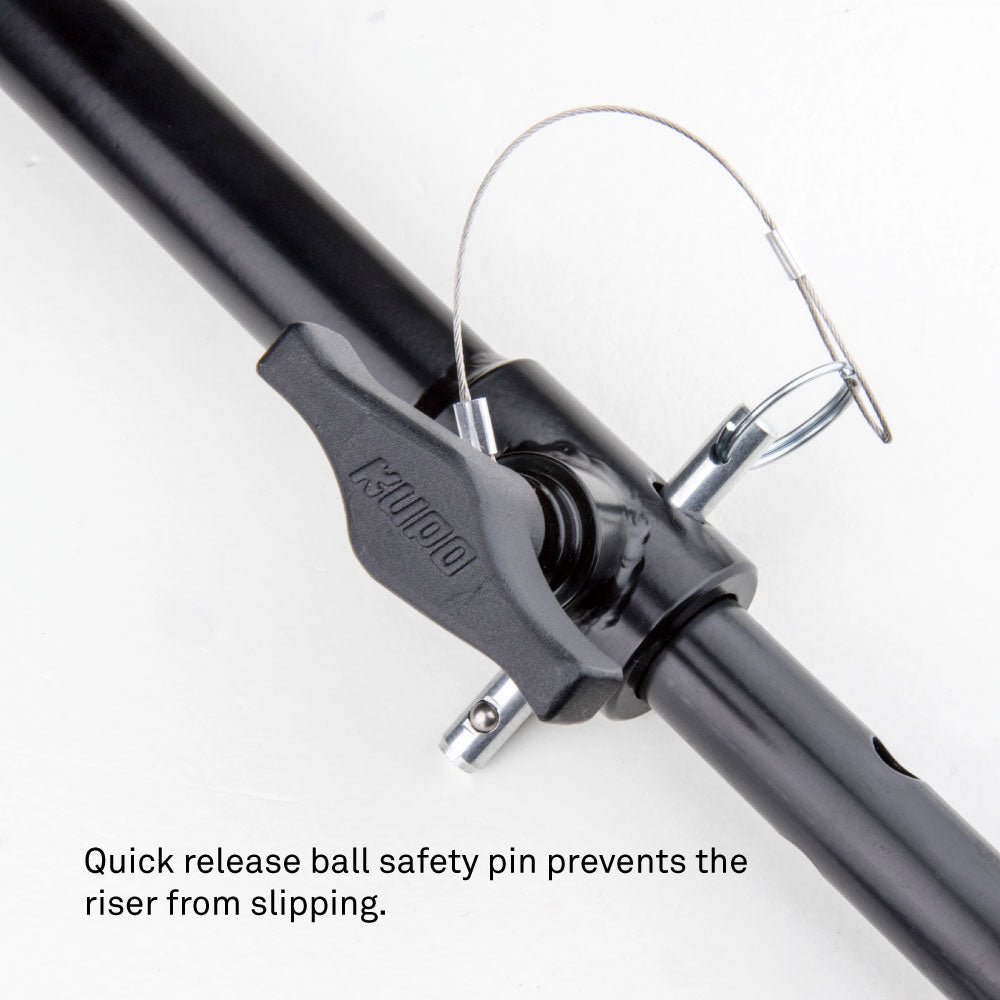

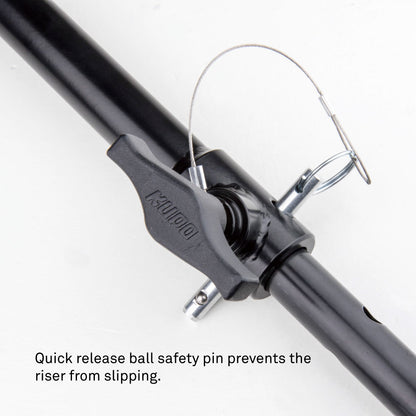

Safety wire on the column and quick-release ball safety pin help control the riser and clamp during adjustment.
Applications
Useful for studio pipe grids, low-profile lighting drops, small LED panels, fluorescent fixtures, theater electrics, broadcast rooms, and location rigs where a light needs to hang below an overhead pipe.
Compatibility

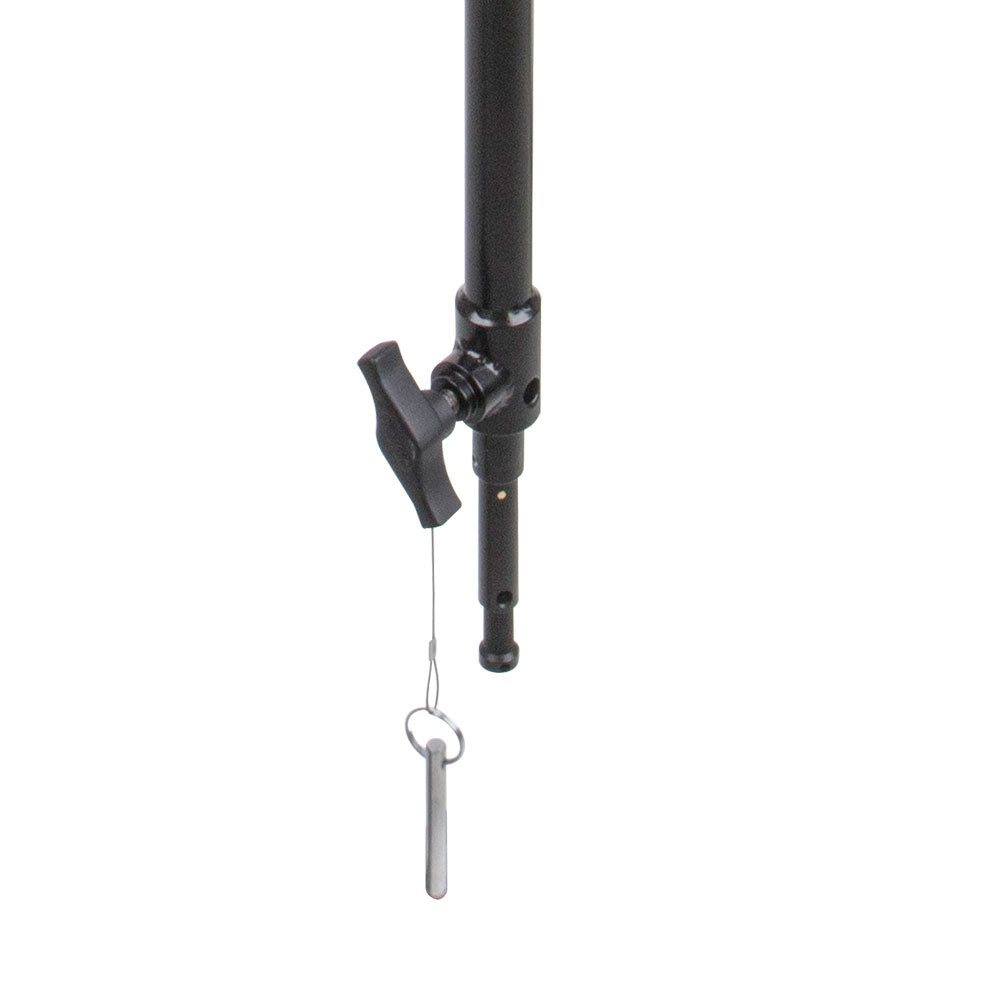

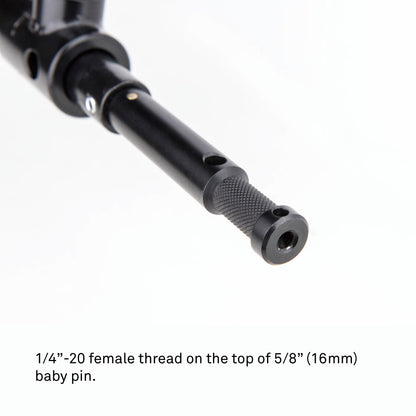

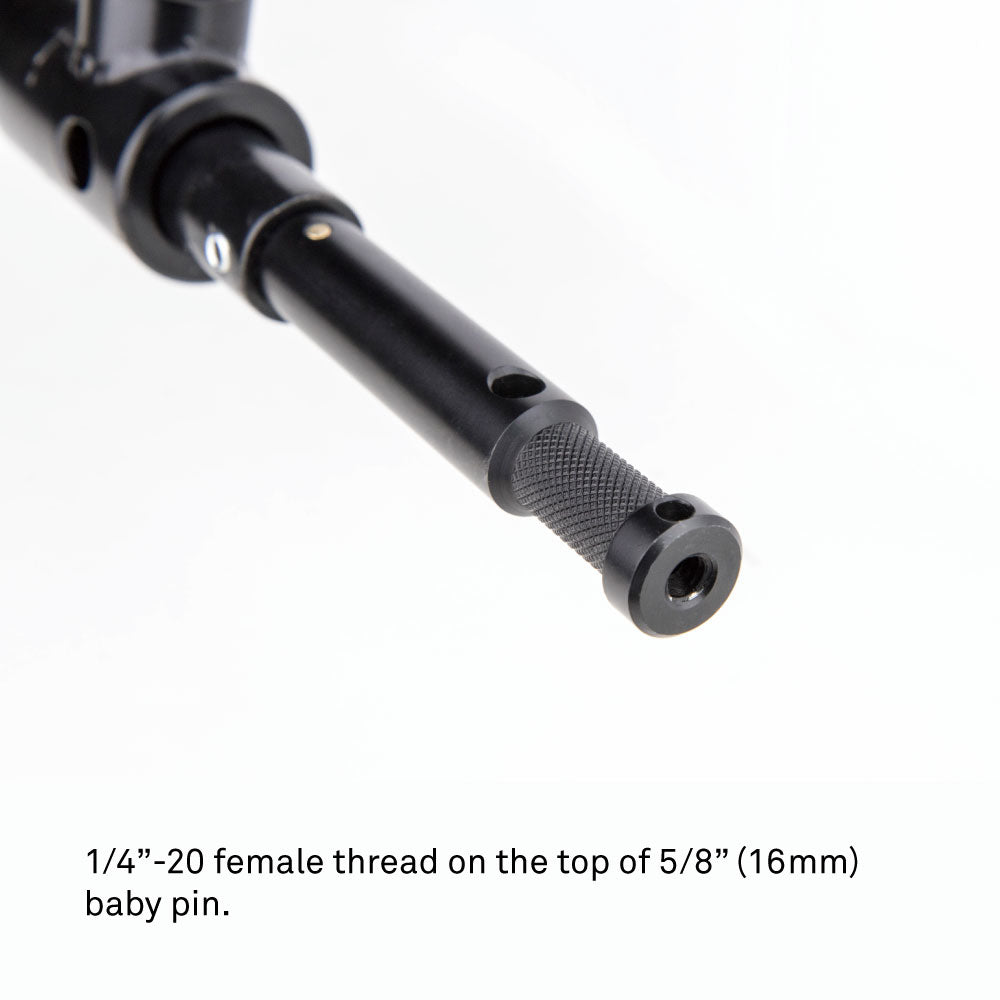

The end uses a 5/8" (16 mm) baby pin with a 1/4-20 female thread on top; choose the KLHS stirrup-head version for fixtures with their own integrated clamp.
Frequently Asked Questions
Will it clamp to standard studio pipe?
It accepts pipe from 35-65 mm outside diameter, covering many common overhead pipe and grid applications.
When should I pick the baby pin version?
Pick the baby pin version when the fixture has a 5/8" receiver or when the accessory stack is built around baby hardware.
What keeps the riser from slipping during adjustment?
The hanger uses a quick-release ball safety pin, plus a safety wire on the column to help keep the clamp from coming free.
