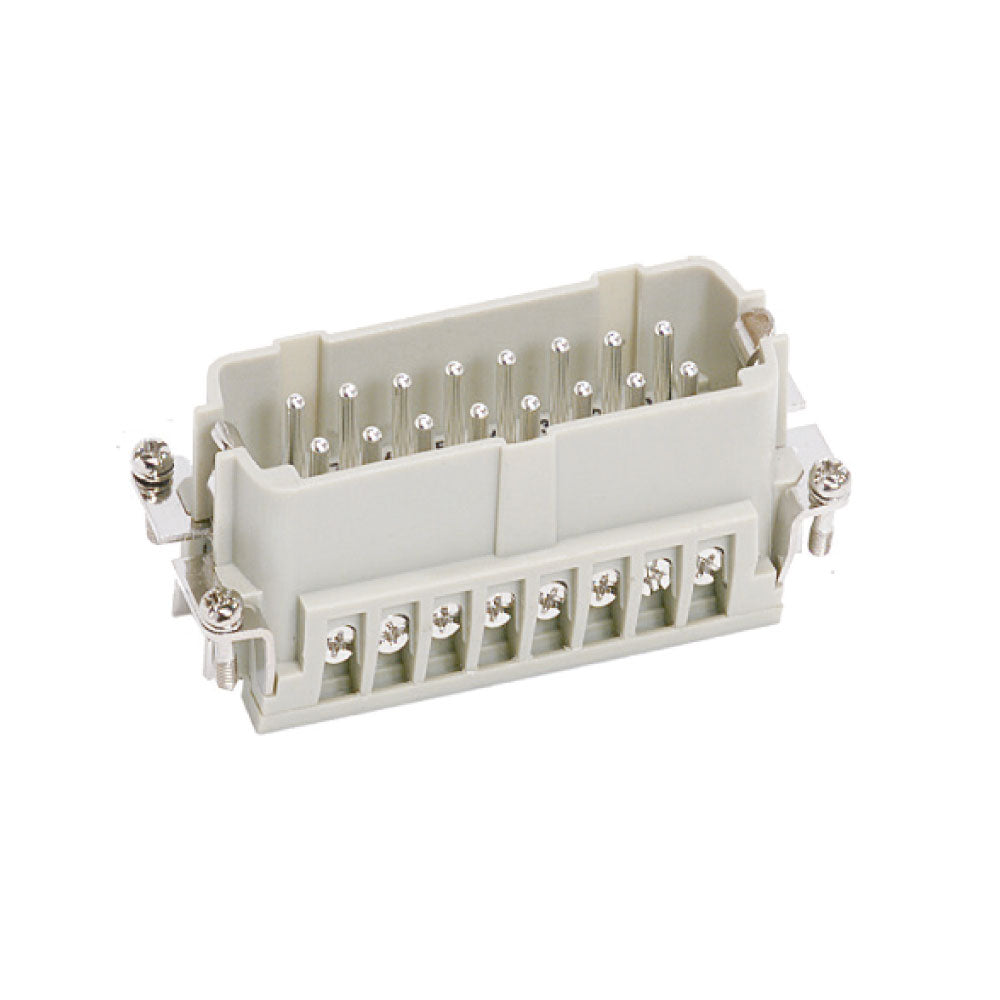

The KUPO KM16M is the plug / male insert for the KM16 Multi-Pin connector system. It provides the defined 16-contact electrical insert used inside the matching housing and hood assembly for rugged multi-circuit power and signal-style interconnect work.
Why It Matters
The insert is where the connector stops being just hardware and becomes a wired assembly. KM16M gives technicians a matched male plug side with hard-silver-plated copper alloy contact surfaces, M3 nickel-plated terminal screws, and 0.5 to 2.5 mm² conductor accommodation.
Key Features
16-pin plug / male insert for KUPO KM16 connector assemblies
Glass-fiber reinforced polycarbonate V-0 insert material supports durability and flame performance
Copper alloy contacts with hard-silver-plated contact surfaces support reliable low-resistance connections
Steel M3 nickel-plated terminal screws provide secure conductor termination
0.5 to 2.5 mm² cross section range supports common multi-pin cable assembly work
Applications
Use it for touring and entertainment multi-pin cable builds, industrial connector assemblies, venue interconnects, rental-house repair work, and equipment cabling that needs a rugged multi-contact plug-and-socket system.
Compatibility
Use with matching KM16 housings and hood components, and mate with the corresponding 16-pin socket insert. Do not mix KM10 and KM16 parts.
Frequently Asked Questions
Is this the male insert?
Yes. KM16M is the plug / male insert for the KM16 16-pin connector family.
Does the insert include the housing and hood?

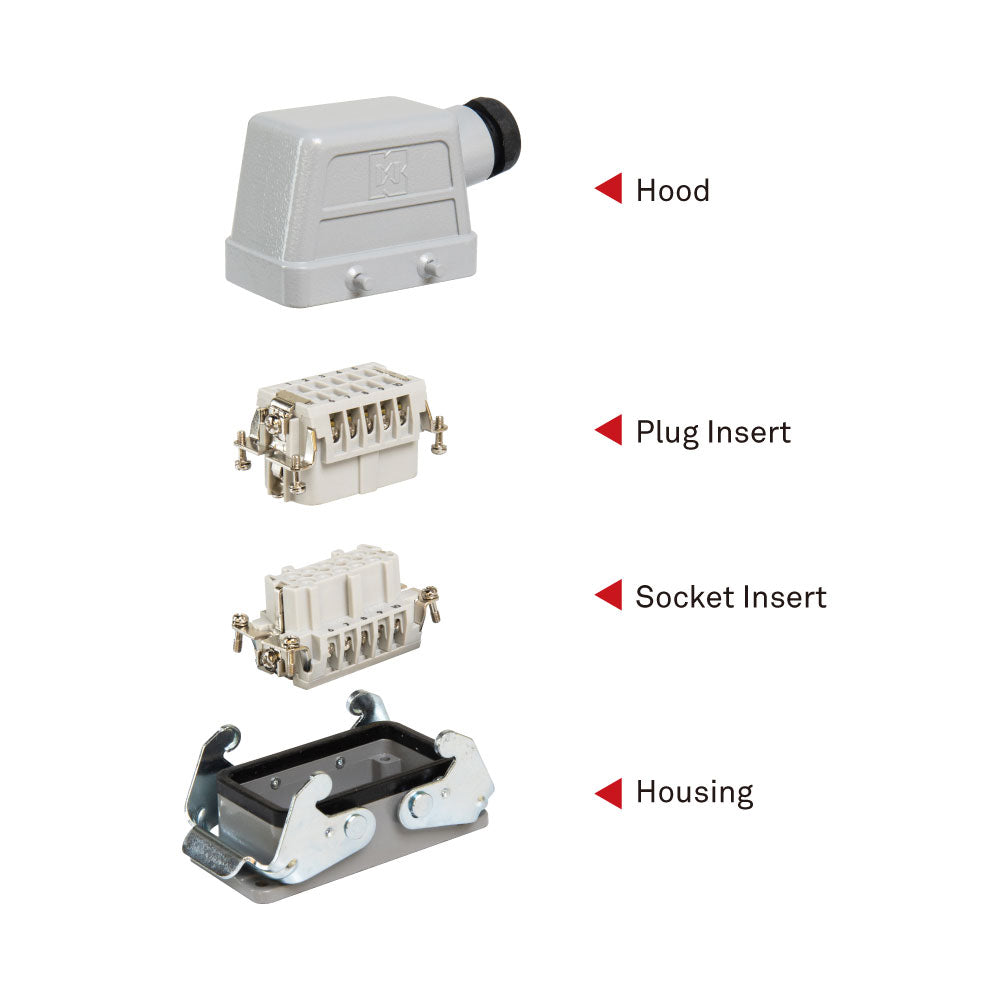

No. The insert is one part of the complete connector. It should be assembled with the matching housing and the hood style required by the cable exit.
What conductor size does it support?
The catalog specification lists a 0.5 to 2.5 mm² cross section range for the insert terminals.
