KPC-019B - Pipe Clamp Two Socket Cross (Black)

Name: KPC-019B - Pipe Clamp Two Socket Cross (Black)
Brand: KUPO Stage

1 2

Product Description

Overview

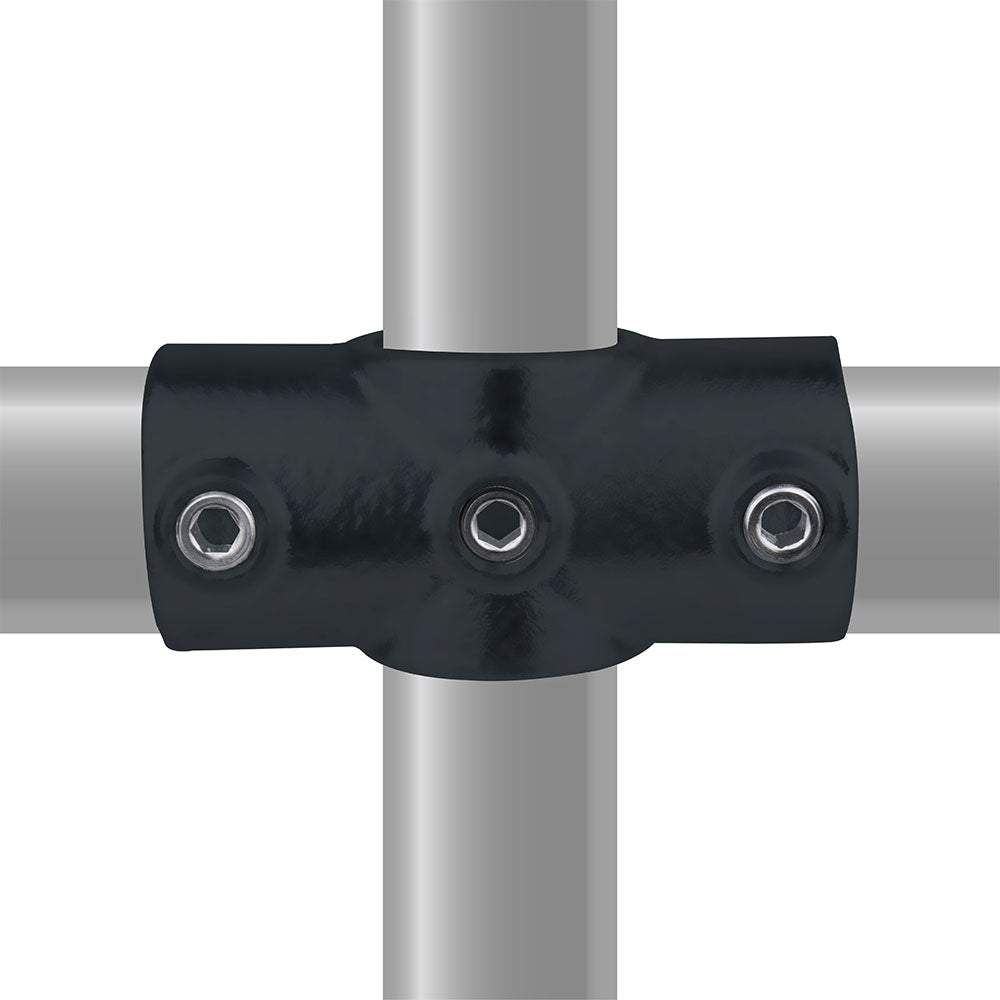

The KPC-019B Pipe Clamp Two Socket Cross is a bolt-on malleable iron fitting for 42.4 mm OD, 1-1/4" Sch. 40 pipe. It creates a four-way intersection with two perpendicular sockets for branch pipes, using stainless steel hex screws to lock the pipe without welding so frames, rails, and structures can be assembled or reconfigured on site.

Why It Matters

The black finish helps visible pipe structures sit quieter in scenic, retail, and event environments. Functionally, this is still a KUPO pipe clamp fitting built for fast bolt-on assembly and reliable rework.

Key Features

Two perpendicular branch sockets create a clean four-way intersection without stacking multiple tee fittings.
Malleable iron casting per ASTM A197 gives the fitting a durable body for tubular structures.
ASTM A153 hot dip galvanized treatment plus zinc plating supports corrosion resistance in real installation environments.
Stainless steel hex screws lock the pipe firmly with no welding required.

Applications

Useful for pipe grids, display frames, guardrail intersections, retail structures, scenic walls, and exhibition builds where branch pipes cross a main run.

Compatibility

Fits 42.4 mm OD, 1-1/4" Sch. 40 pipe; related sister fittings cover the alternate KUPO pipe clamp diameter.

Frequently Asked Questions

Does this fitting need welding?

No. It locks onto the pipe with stainless steel hex screws, which keeps the structure serviceable and easier to revise.

Is this just two tees placed together?

No. It is a single two socket cross fitting, so the perpendicular branch points are held in one defined body rather than built up from multiple fittings.

What pipe size does this version fit?

This version fits 42.4 mm OD, 1-1/4" Sch. 40 pipe, commonly used as 1-1/4" nominal Schedule 40 pipe.
