Overview

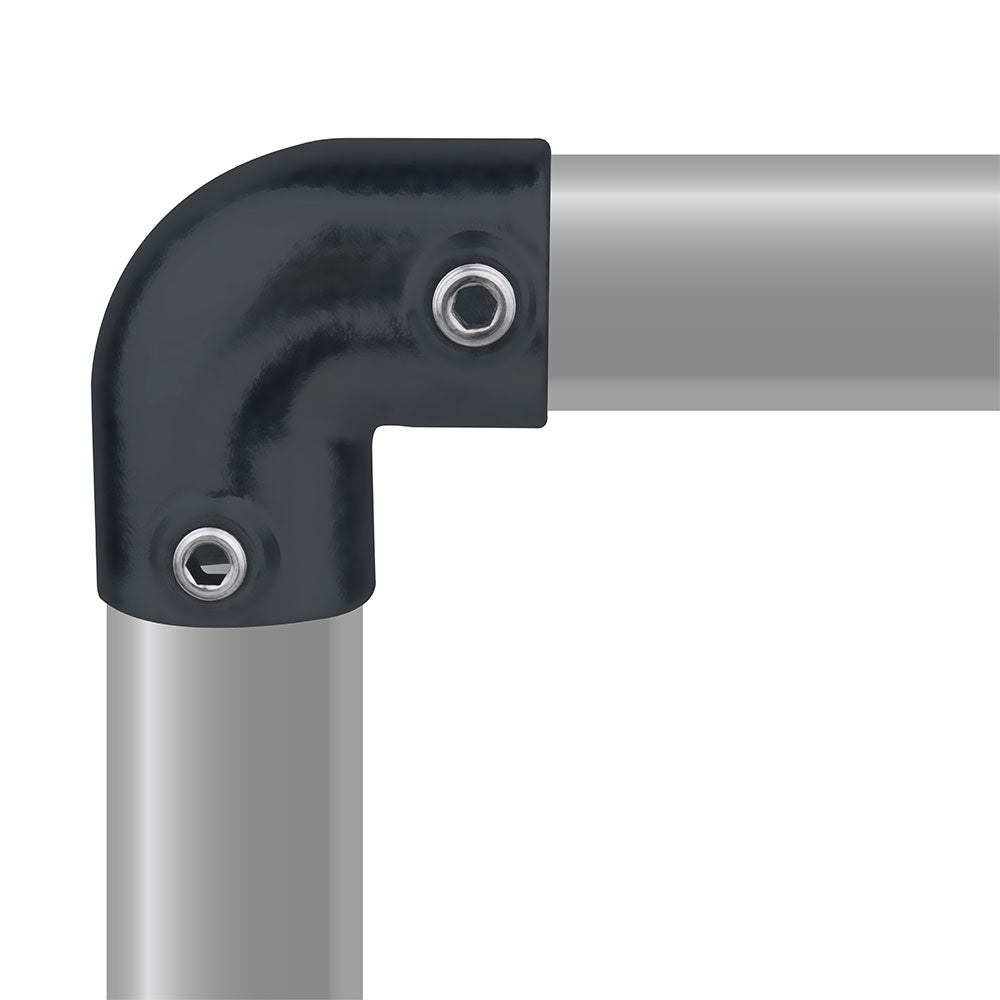

The KPC-025B Pipe Clamp 90° Elbow is a bolt-on malleable iron fitting for 42.4 mm OD, 1-1/4" Sch. 40 pipe. It turns a pipe run cleanly through a right-angle corner, using stainless steel hex screws to lock the pipe without welding so frames, rails, and structures can be assembled or reconfigured on site.
Why It Matters
The black finish helps visible pipe structures sit quieter in scenic, retail, and event environments. Functionally, this is still a KUPO pipe clamp fitting built for fast bolt-on assembly and reliable rework.
Key Features
- Right-angle elbow geometry turns one pipe run into another for clean frame corners.
- Malleable iron casting per ASTM A197 gives the fitting a durable body for tubular structures.
- ASTM A153 hot dip galvanized treatment plus zinc plating supports corrosion resistance in real installation environments.
- Stainless steel hex screws lock the pipe firmly with no welding required.
Applications
A practical choice for rectangular frames, booth structures, handrail corners, display rails, scenic borders, and pipe runs that need a simple 90° turn.
Compatibility
Fits 42.4 mm OD, 1-1/4" Sch. 40 pipe; related sister fittings cover the alternate KUPO pipe clamp diameter.
