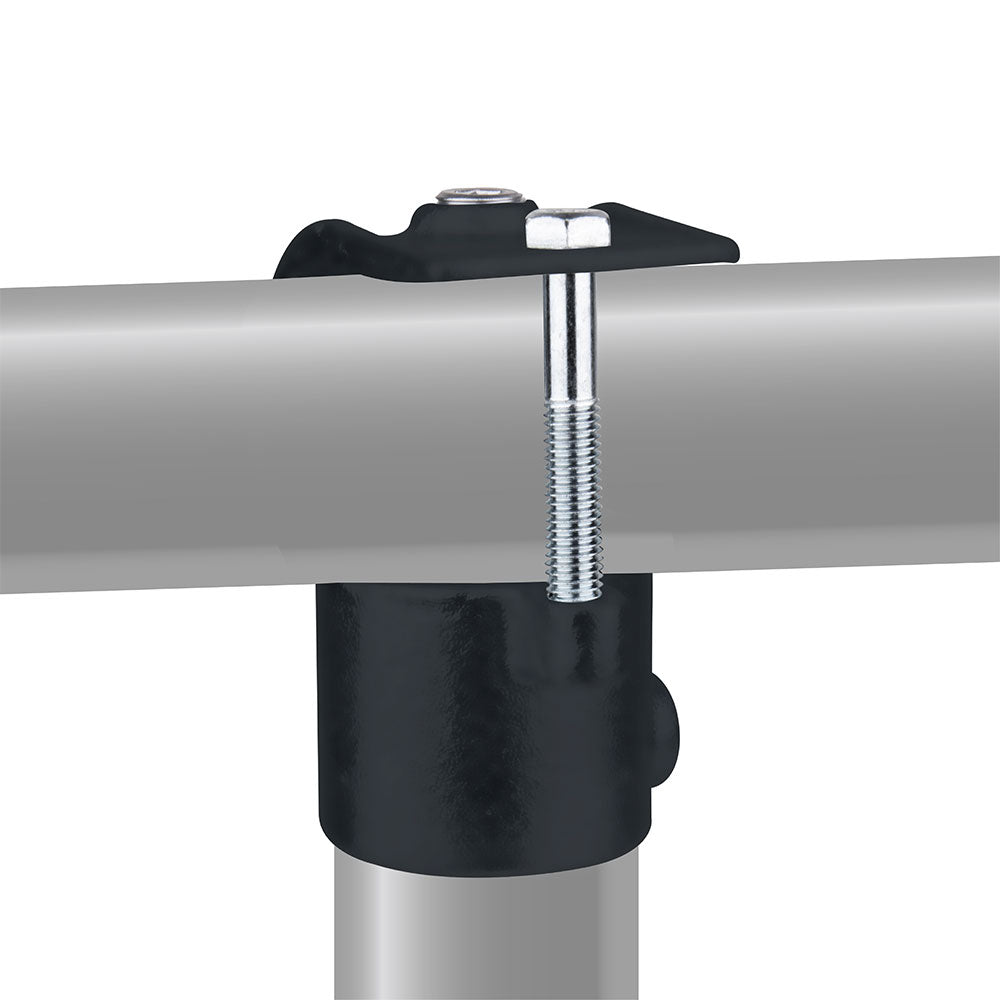

The KPC-035B Pipe Clamp Clamp-On Tee is a bolt-on malleable iron fitting for 42.4 mm OD, 1-1/4" Sch. 40 pipe. It adds a perpendicular branch to an existing pipe without breaking the main run, using stainless steel hex screws to lock the pipe without welding so frames, rails, and structures can be assembled or reconfigured on site.
Why It Matters
The black finish helps visible pipe structures sit quieter in scenic, retail, and event environments. Functionally, this is still a KUPO pipe clamp fitting built for fast bolt-on assembly and reliable rework.
Key Features
Clamp-on design adds a branch pipe to an existing main run without disassembling the full structure.
Malleable iron casting per ASTM A197 gives the fitting a durable body for tubular structures.
ASTM A153 hot dip galvanized treatment plus zinc plating supports corrosion resistance in real installation environments.
Stainless steel hex screws lock the pipe firmly with no welding required.
Applications
Helpful for retrofitting display frames, adding rail branches, revising scenic pipe structures, modifying booth layouts, and creating late-stage attachment points.
Compatibility
Fits 42.4 mm OD, 1-1/4" Sch. 40 pipe; related sister fittings cover the alternate KUPO pipe clamp diameter.
Frequently Asked Questions
Does this fitting need welding?
No. It locks onto the pipe with stainless steel hex screws, which keeps the structure serviceable and easier to revise.
Can I add this after the main pipe is already installed?
Yes. The clamp-on tee is meant to add a perpendicular branch without breaking the existing main run apart.
What pipe size does this version fit?
This version fits 42.4 mm OD, 1-1/4" Sch. 40 pipe, commonly used as 1-1/4" nominal Schedule 40 pipe.
