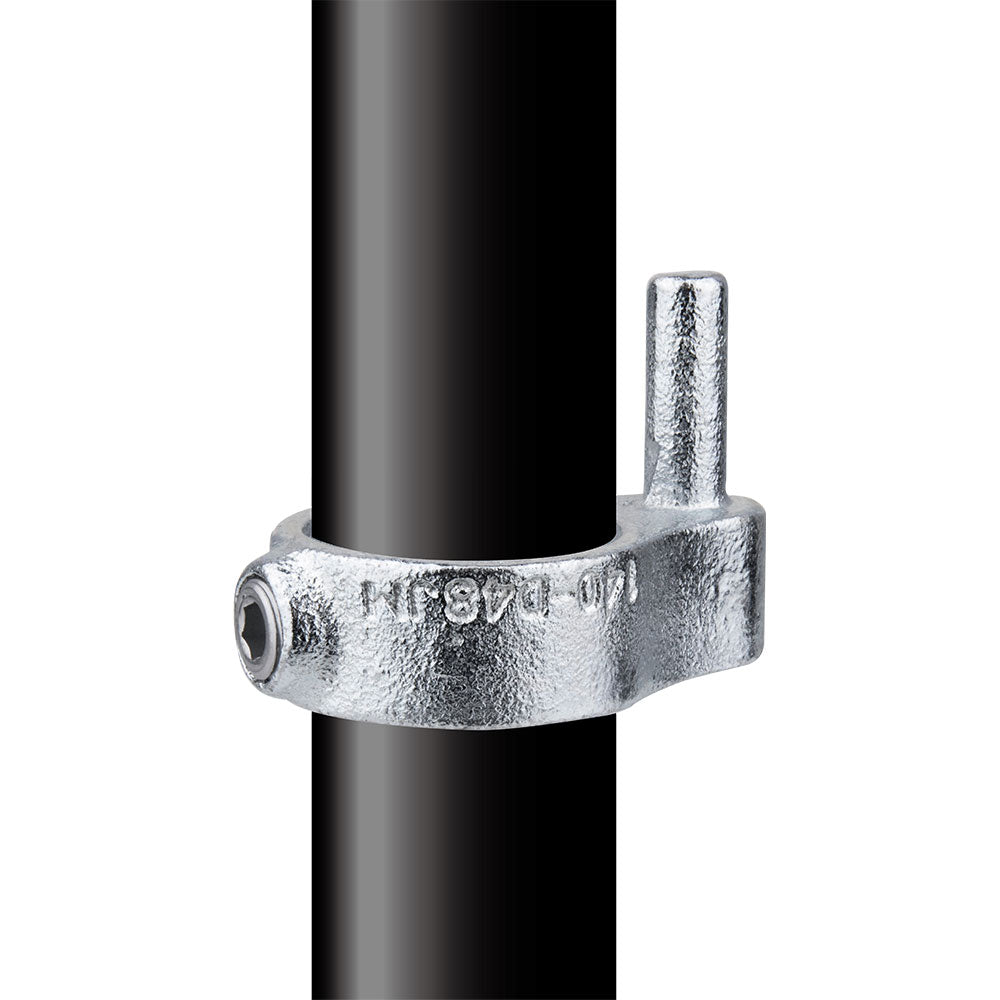

The KPC-040 Pipe Clamp Gate Hinge is a bolt-on malleable iron fitting for 42.4 mm OD, 1-1/4" Sch. 40 pipe. It provides the hinge half that pairs with a Gate Eye to build a swinging pipe gate, using stainless steel hex screws to lock the pipe without welding so frames, rails, and structures can be assembled or reconfigured on site.
Why It Matters
A pipe gate needs a hinge pair that works with the rest of the clamp system. This hinge half keeps the moving side of the gate integrated with bolt-on pipe hardware.
Key Features
Gate hinge fitting pairs with a Gate Eye to create a swinging pipe gate assembly.
Malleable iron casting per ASTM A197 gives the fitting a durable body for tubular structures.
ASTM A153 hot dip galvanized treatment plus zinc plating supports corrosion resistance in real installation environments.
Stainless steel hex screws lock the pipe firmly with no welding required.
Applications
Suitable for access gates, temporary barriers, railing openings, queue lanes, backstage pathways, and pipe-frame gates that need a swinging section.
Compatibility
Fits 42.4 mm OD, 1-1/4" Sch. 40 pipe; related sister fittings cover the alternate KUPO pipe clamp diameter.
Frequently Asked Questions
Does this fitting need welding?
No. It locks onto the pipe with stainless steel hex screws, which keeps the structure serviceable and easier to revise.
What does this pair with?
It pairs with a Gate Eye fitting to make the hinge set for a swinging pipe gate.
What pipe size does this version fit?
This version fits 42.4 mm OD, 1-1/4" Sch. 40 pipe, commonly used as 1-1/4" nominal Schedule 40 pipe.
