Overview

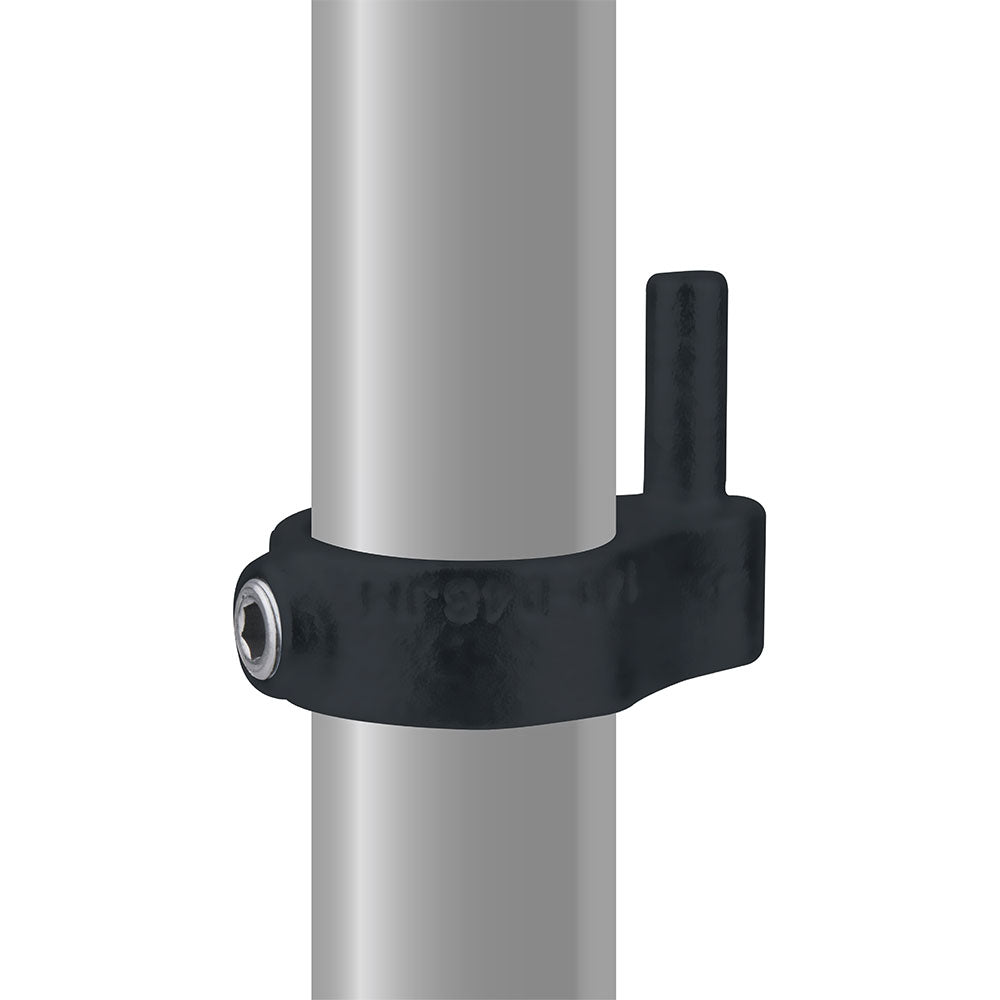

The KPC-040B Pipe Clamp Gate Hinge is a bolt-on malleable iron fitting for 42.4 mm OD, 1-1/4" Sch. 40 pipe. It provides the hinge half that pairs with a Gate Eye to build a swinging pipe gate, using stainless steel hex screws to lock the pipe without welding so frames, rails, and structures can be assembled or reconfigured on site.
Why It Matters
The black finish helps visible pipe structures sit quieter in scenic, retail, and event environments. Functionally, this is still a KUPO pipe clamp fitting built for fast bolt-on assembly and reliable rework.
Key Features
- Gate hinge fitting pairs with a Gate Eye to create a swinging pipe gate assembly.
- Malleable iron casting per ASTM A197 gives the fitting a durable body for tubular structures.
- ASTM A153 hot dip galvanized treatment plus zinc plating supports corrosion resistance in real installation environments.
- Stainless steel hex screws lock the pipe firmly with no welding required.
Applications
Suitable for access gates, temporary barriers, railing openings, queue lanes, backstage pathways, and pipe-frame gates that need a swinging section.
Compatibility
Fits 42.4 mm OD, 1-1/4" Sch. 40 pipe; related sister fittings cover the alternate KUPO pipe clamp diameter.
