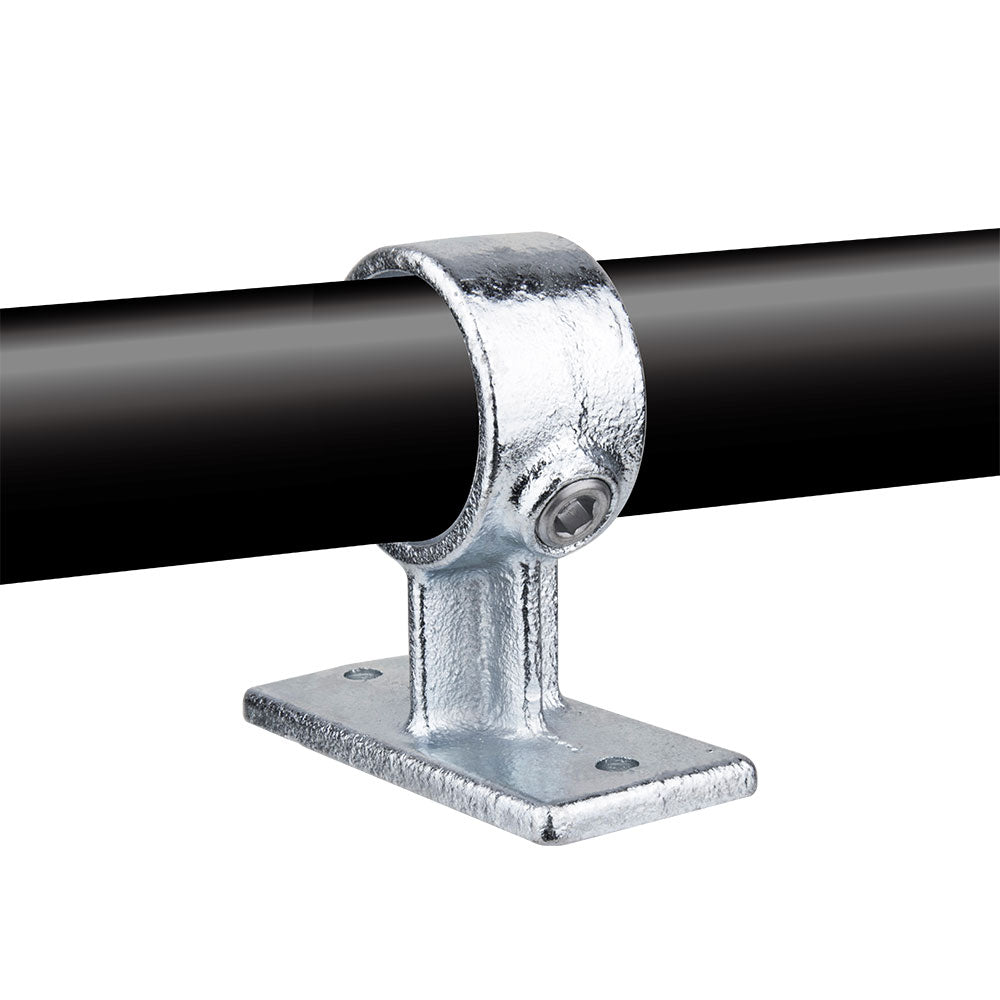

The KPC-043 Pipe Clamp Handrail Bracket is a bolt-on malleable iron fitting for 42.4 mm OD, 1-1/4" Sch. 40 pipe. It mounts a horizontal handrail pipe to a wall or vertical post through a clean wall-side bracket, using stainless steel hex screws to lock the pipe without welding so frame, rail, and display structures can be assembled and revised on site.
Why It Matters
A handrail support needs to look intentional and stay serviceable. This bracket gives the rail a defined wall or post connection without asking the installer to fabricate a welded support.
Key Features
Wall-side bracket geometry supports a horizontal handrail pipe from a vertical surface.
Malleable iron casting per ASTM A197 provides a durable body for tubular structures.
ASTM A153 hot dip galvanized treatment plus zinc plating supports corrosion resistance for demanding environments.
Stainless steel hex screws lock the pipe firmly without welding, helping crews build and rework faster.
Applications
Made for handrail runs, wall-mounted pipe rails, platform edges, access routes, display barriers, and support points in pipe-based railing systems.
Compatibility
Fits 42.4 mm OD, 1-1/4" Sch. 40 pipe; related sister fittings cover the alternate KUPO pipe clamp diameter.
Frequently Asked Questions
Does this fitting require welding?
No. It locks the pipe with stainless steel hex screws, so the structure remains bolt-on and easier to reconfigure.
Is this for the handrail pipe or the post?
It is for mounting a horizontal handrail pipe to a wall, vertical post, or similar side surface.
What pipe size does this version fit?
This version fits 42.4 mm OD, 1-1/4" Sch. 40 pipe, commonly used as 1-1/4" nominal Schedule 40 pipe.
