Overview

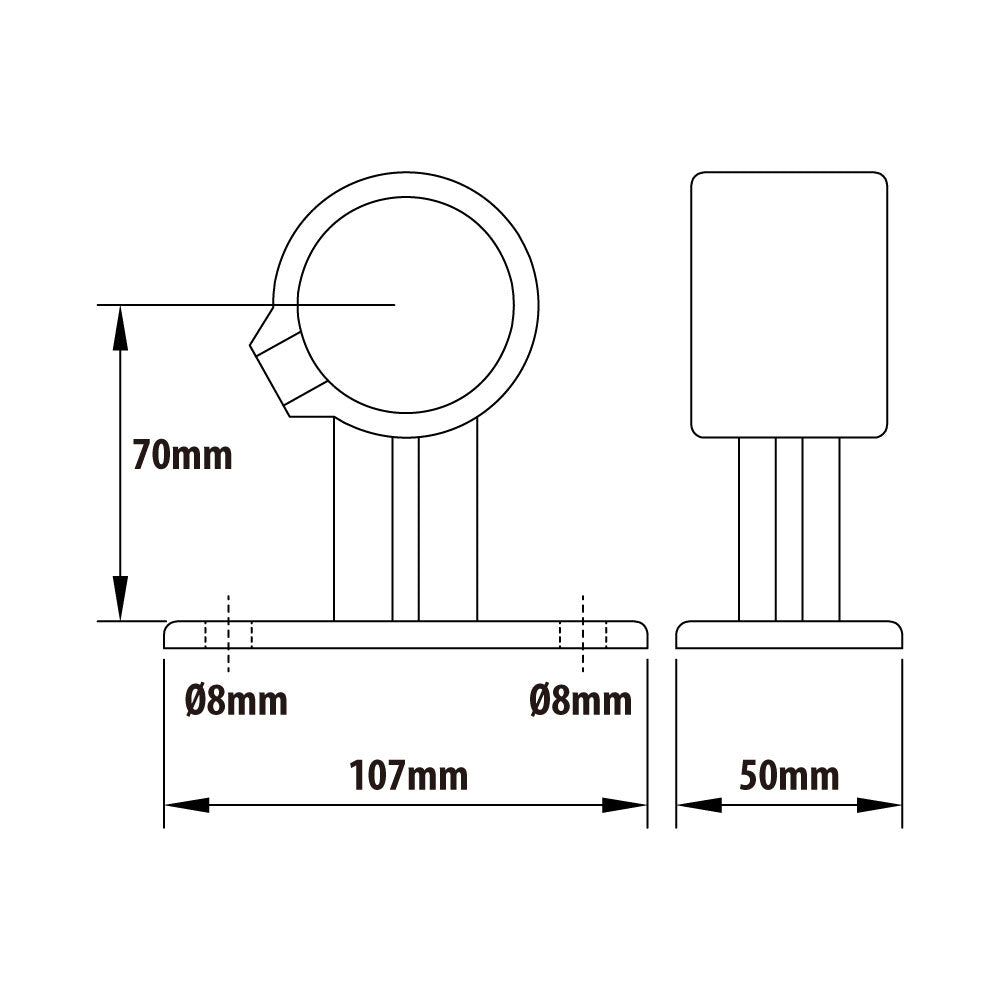

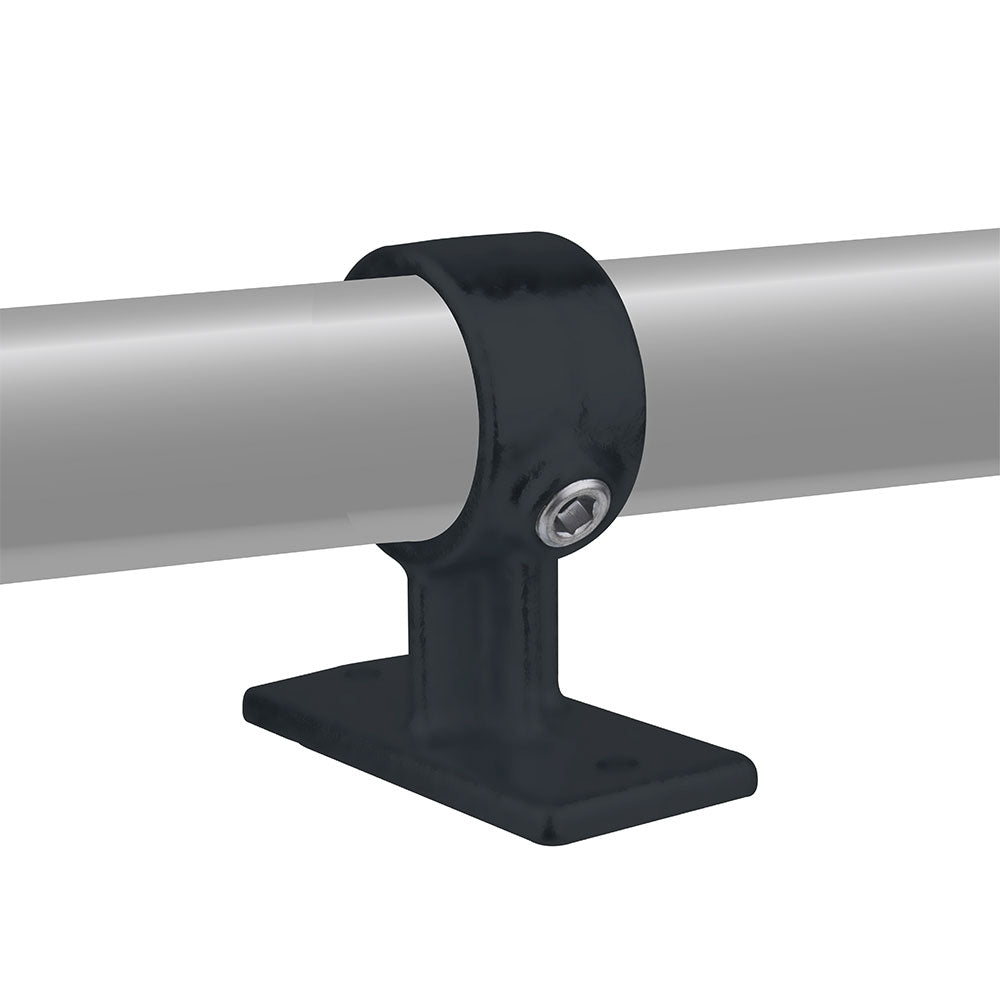

The KPC-043B Pipe Clamp Handrail Bracket is a bolt-on malleable iron fitting for 42.4 mm OD, 1-1/4" Sch. 40 pipe. It mounts a horizontal handrail pipe to a wall or vertical post with a clean wall-side flange, using stainless steel hex screws to lock the pipe without welding so frames, rails, and structures can be assembled or reconfigured on site.
Why It Matters
The black finish helps visible pipe structures sit quieter in scenic, retail, and event environments. Functionally, this is still a KUPO pipe clamp fitting built for fast bolt-on assembly and reliable rework.
Key Features
- Wall-side bracket geometry supports a horizontal handrail pipe from a wall, post, or similar vertical surface.
- Malleable iron casting per ASTM A197 gives the fitting a durable body for tubular structures.
- ASTM A153 hot dip galvanized treatment plus zinc plating supports corrosion resistance in real installation environments.
- Stainless steel hex screws lock the pipe firmly with no welding required.
Applications
Intended for handrail runs, wall-mounted pipe rails, platform edges, access routes, display barriers, and clean support points in pipe-based railing systems.
Compatibility
Fits 42.4 mm OD, 1-1/4" Sch. 40 pipe; related sister fittings cover the alternate KUPO pipe clamp diameter.
