KPC-044B - Pipe Clamp Railing Side (Black)

Name: KPC-044B - Pipe Clamp Railing Side (Black)
Brand: KUPO Stage

1 2

Product Description

Overview

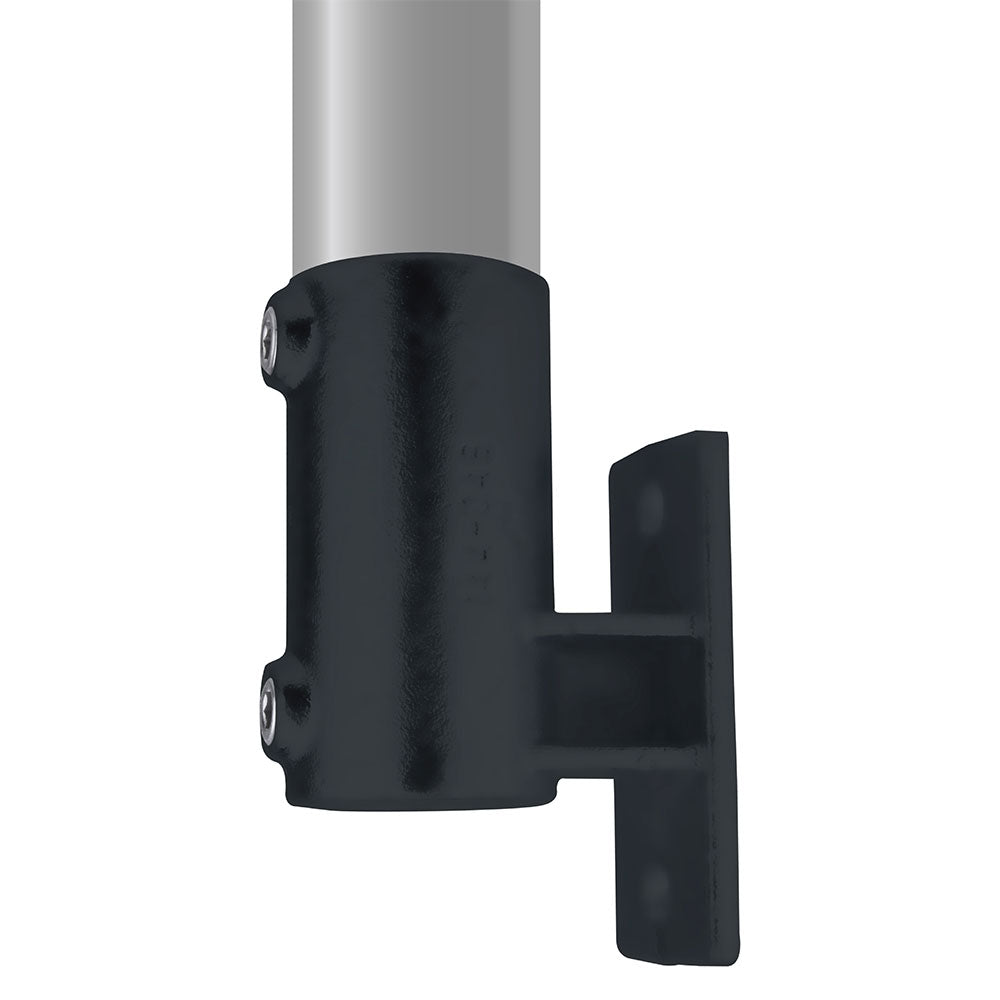

The KPC-044B Pipe Clamp Railing Side is a bolt-on malleable iron fitting for 42.4 mm OD, 1-1/4" Sch. 40 pipe. It joins a railing pipe at a side angle for stair handrails and angled rail runs, using stainless steel hex screws to lock the pipe without welding so frame, rail, and display structures can be assembled and revised on site.

Why It Matters

The black finish helps visible pipe frames sit quieter in scenic, retail, and event environments. Functionally, the fitting still carries the corrosion-resistant pipe clamp construction and bolt-on serviceability crews expect.

Key Features

Side-angle railing geometry helps handrail sections meet posts or supports on sloped runs.
Malleable iron casting per ASTM A197 provides a durable body for tubular structures.
ASTM A153 hot dip galvanized treatment plus zinc plating supports corrosion resistance for demanding environments.
Stainless steel hex screws lock the pipe firmly without welding, helping crews build and rework faster.

Applications

Useful for stair handrails, angled rails, ramp-side pipe, platform access routes, temporary guardrails, and pipe railing layouts that need side-mounted angle transitions.

Compatibility

Fits 42.4 mm OD, 1-1/4" Sch. 40 pipe; related sister fittings cover the alternate KUPO pipe clamp diameter.

Frequently Asked Questions

Does this fitting require welding?

No. It locks the pipe with stainless steel hex screws, so the structure remains bolt-on and easier to reconfigure.

When should I use the railing side fitting?

Use it when a railing pipe needs to meet the support from the side at an angle, especially on stair or ramp-style rail runs.

What pipe size does this version fit?

This version fits 42.4 mm OD, 1-1/4" Sch. 40 pipe, commonly used as 1-1/4" nominal Schedule 40 pipe.
