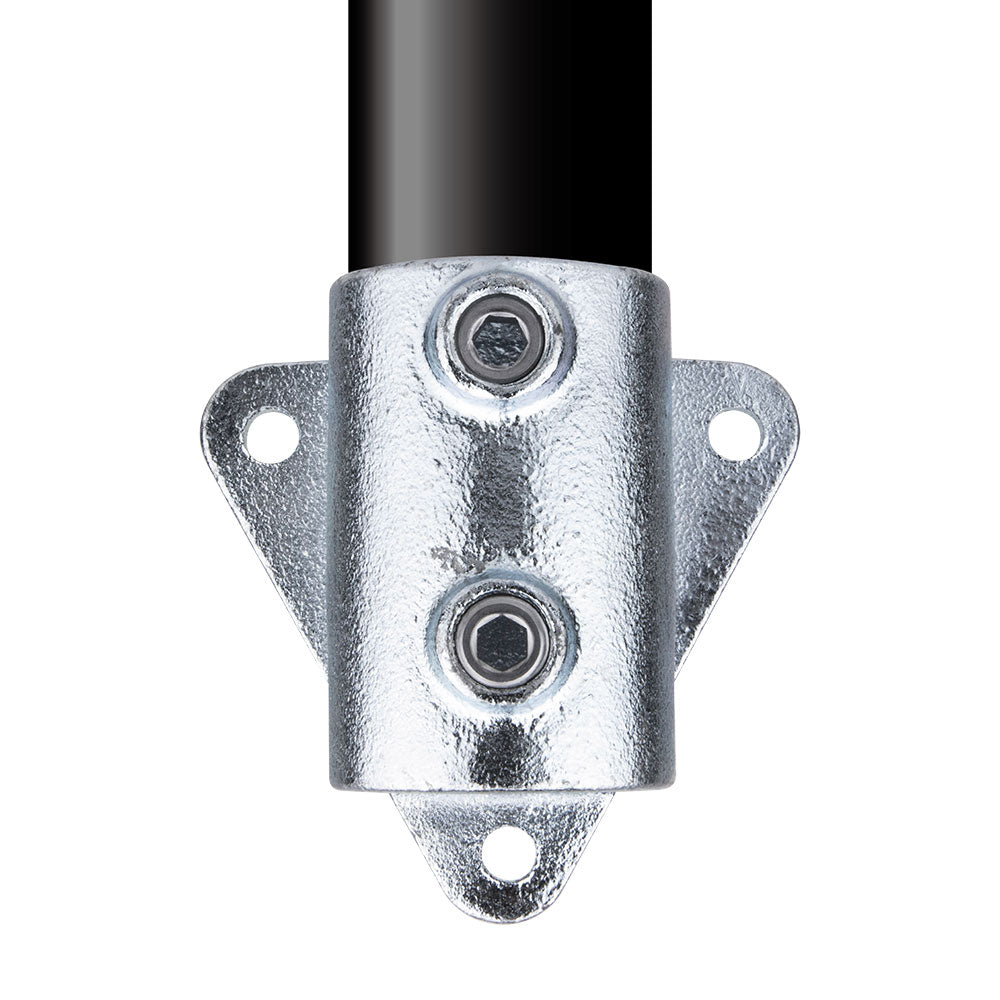

The KPC-046 Pipe Clamp Side Palm Fixing is a bolt-on malleable iron fitting for 42.4 mm OD, 1-1/4" Sch. 40 pipe. It terminates a pipe to a vertical surface using a side-mount palm style flange, using stainless steel hex screws to lock the pipe without welding so frame, rail, and display structures can be assembled and revised on site.
Why It Matters
Not every pipe termination lands on a floor or deck. This fitting gives vertical surfaces a clean side-mount termination point for frames, rails, and wall-supported pipe work.
Key Features
Side palm flange terminates a pipe into a vertical surface instead of a floor-mounted base.
Malleable iron casting per ASTM A197 provides a durable body for tubular structures.
ASTM A153 hot dip galvanized treatment plus zinc plating supports corrosion resistance for demanding environments.
Stainless steel hex screws lock the pipe firmly without welding, helping crews build and rework faster.
Applications
A practical fitting for wall-supported rail sections, side-mounted frames, display returns, guardrail terminations, retail pipe structures, and platform details that end at a vertical face.
Compatibility
Fits 42.4 mm OD, 1-1/4" Sch. 40 pipe; related sister fittings cover the alternate KUPO pipe clamp diameter.
Frequently Asked Questions
Does this fitting require welding?
No. It locks the pipe with stainless steel hex screws, so the structure remains bolt-on and easier to reconfigure.
How is this different from a base flange?
A base flange mounts to a flat floor or deck surface. The side palm fixing is for terminating pipe against a vertical surface.
What pipe size does this version fit?
This version fits 42.4 mm OD, 1-1/4" Sch. 40 pipe, commonly used as 1-1/4" nominal Schedule 40 pipe.
