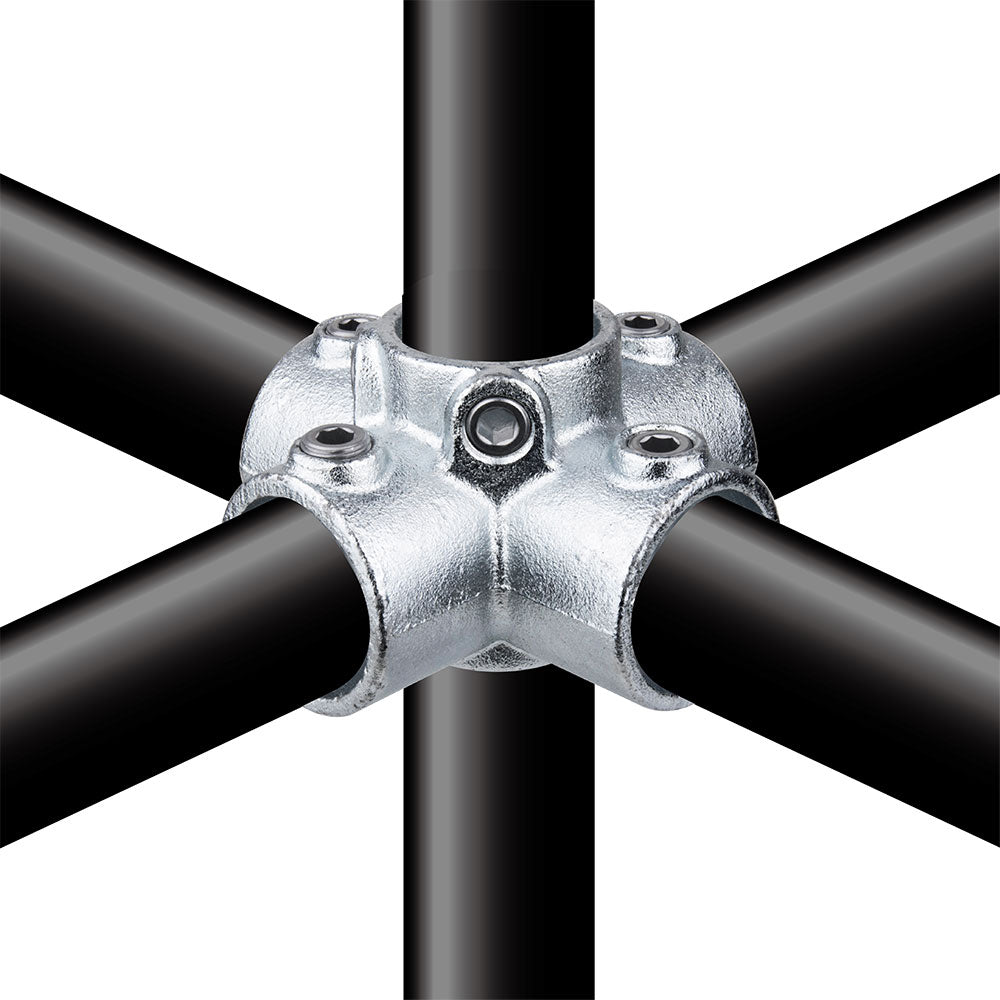

The KPC-058 Pipe Clamp 4 Way Cross is a bolt-on malleable iron fitting for 42.4 mm OD, 1-1/4" Sch. 40 pipe. It joins four pipes meeting at a single right-angle intersection, using stainless steel hex screws to lock the pipe without welding so frame, rail, and display structures can be assembled and revised on site.
Why It Matters
Dense pipe grids need the intersection to stay organized. This four-way cross keeps the meeting point in one fitting rather than stacking several tees around the same location.
Key Features
Four-way right-angle geometry organizes four pipe directions at one intersection.
Malleable iron casting per ASTM A197 provides a durable body for tubular structures.
ASTM A153 hot dip galvanized treatment plus zinc plating supports corrosion resistance for demanding environments.
Stainless steel hex screws lock the pipe firmly without welding, helping crews build and rework faster.
Applications
Built for pipe grids, cube frames, retail displays, scenic wall systems, guardrail intersections, exhibition frames, and structural layouts where four members meet cleanly.
Compatibility
Fits 42.4 mm OD, 1-1/4" Sch. 40 pipe; related sister fittings cover the alternate KUPO pipe clamp diameter.
Frequently Asked Questions
Does this fitting require welding?
No. It locks the pipe with stainless steel hex screws, so the structure remains bolt-on and easier to reconfigure.
When is a four-way cross useful?
Use it when four pipe directions meet at one right-angle intersection and you want that junction handled by one fitting.
What pipe size does this version fit?
This version fits 42.4 mm OD, 1-1/4" Sch. 40 pipe, commonly used as 1-1/4" nominal Schedule 40 pipe.
