KPC-060B - Pipe Clamp Clamp-On Crossover (Black)

Name: KPC-060B - Pipe Clamp Clamp-On Crossover (Black)
Brand: KUPO Stage

1 2

Product Description

Overview

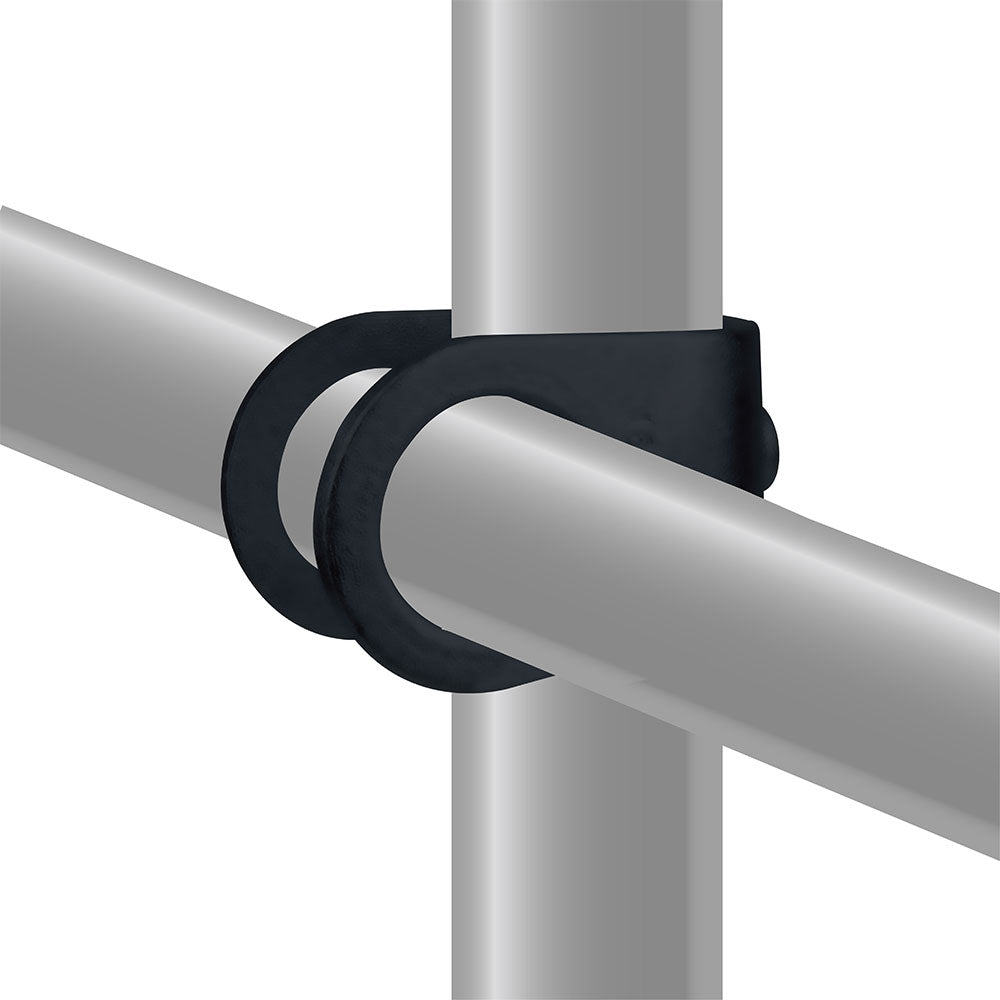

The KPC-060B Pipe Clamp Clamp-On Crossover is a bolt-on malleable iron fitting for 42.4 mm OD, 1-1/4" Sch. 40 pipe. It lets one pipe pass over another at a junction without cutting either run, using stainless steel hex screws to lock the pipe without welding so frame, rail, and display structures can be assembled and revised on site.

Why It Matters

The black finish helps visible pipe frames sit quieter in scenic, retail, and event environments. Functionally, the fitting still carries the corrosion-resistant pipe clamp construction and bolt-on serviceability crews expect.

Key Features

Clamp-on crossover geometry allows one pipe to pass over another while both runs remain continuous.
Malleable iron casting per ASTM A197 provides a durable body for tubular structures.
ASTM A153 hot dip galvanized treatment plus zinc plating supports corrosion resistance for demanding environments.
Stainless steel hex screws lock the pipe firmly without welding, helping crews build and rework faster.

Applications

Useful for retrofitted display frames, crossing guardrail runs, scenic pipe grids, booth structures, overhead support patterns, and late-stage layout changes.

Compatibility

Fits 42.4 mm OD, 1-1/4" Sch. 40 pipe; related sister fittings cover the alternate KUPO pipe clamp diameter.

Frequently Asked Questions

Does this fitting require welding?

No. It locks the pipe with stainless steel hex screws, so the structure remains bolt-on and easier to reconfigure.

Can I add it after the main pipe is already in place?

Yes. The clamp-on crossover is intended for adding a crossing pipe without cutting or disassembling the existing run.

What pipe size does this version fit?

This version fits 42.4 mm OD, 1-1/4" Sch. 40 pipe, commonly used as 1-1/4" nominal Schedule 40 pipe.
