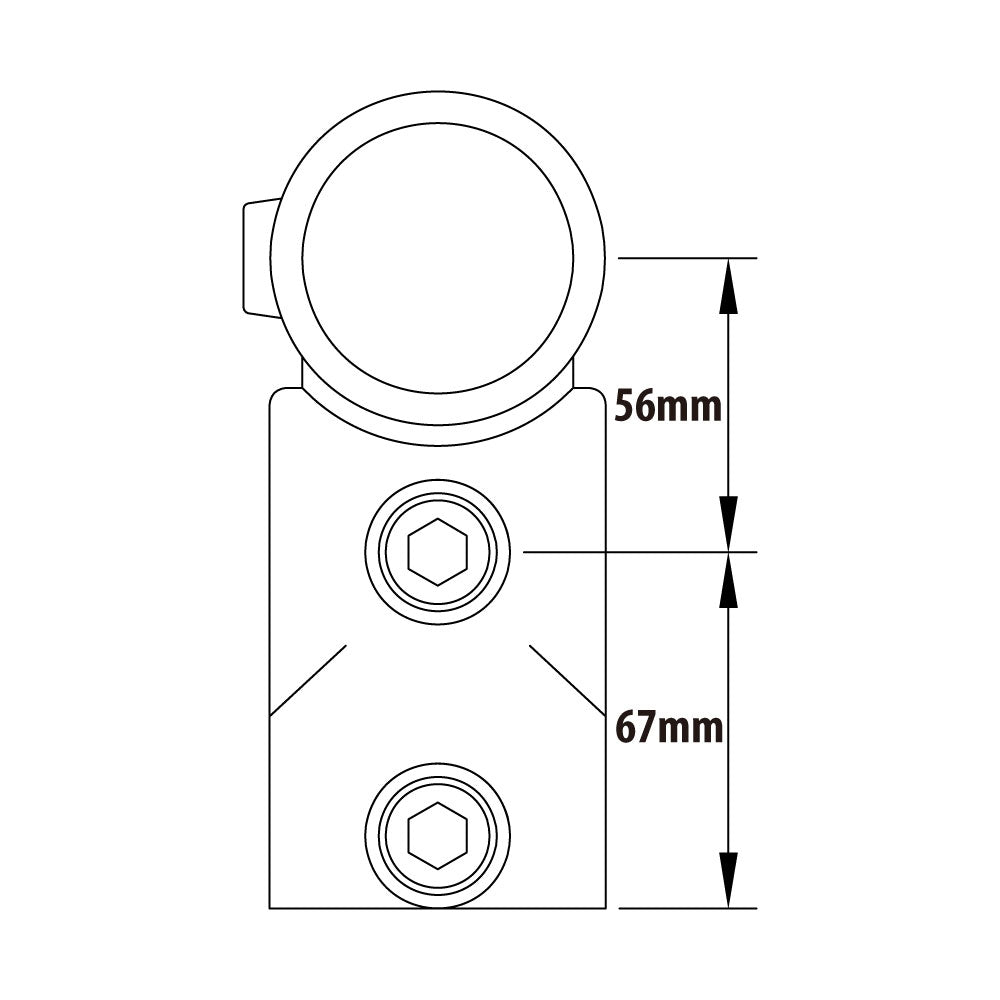

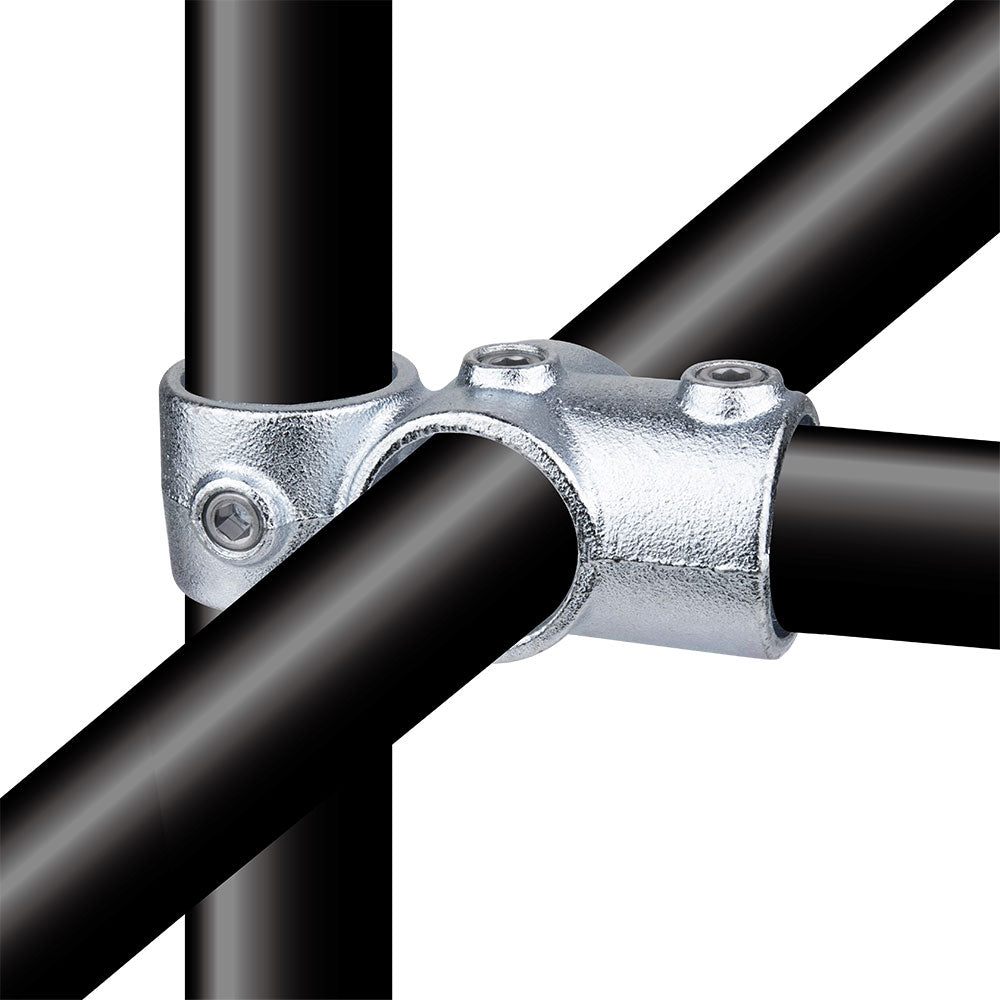

The KPC-065 Combination socket tee / crossover is a bolt-on malleable iron fitting for 42.4 mm OD, 1-1/4" Sch. 40 pipe. It combines a tee branch and crossover bypass in one fitting for multi-pipe intersections, using stainless steel hex screws to lock the pipe without welding so frame, rail, and display structures can be assembled and revised on site.
Why It Matters
Some junctions need more than a simple branch or a simple pass-over. This combination fitting handles both conditions in one part, helping complex pipe frames stay cleaner and easier to inspect.
Key Features
Combination body provides both a socket tee branch and a crossover path in a single fitting.
Malleable iron casting per ASTM A197 provides a durable body for tubular structures.
ASTM A153 hot dip galvanized treatment plus zinc plating supports corrosion resistance for demanding environments.
Stainless steel hex screws lock the pipe firmly without welding, helping crews build and rework faster.
Applications
Designed for complex pipe grids, retail display frameworks, exhibition structures, scenic builds, guardrail details, and multi-run intersections where a tee and crossover meet in the same spot.
Compatibility
Fits 42.4 mm OD, 1-1/4" Sch. 40 pipe; related sister fittings cover the alternate KUPO pipe clamp diameter.
Frequently Asked Questions
Does this fitting require welding?
No. It locks the pipe with stainless steel hex screws, so the structure remains bolt-on and easier to reconfigure.
Why use a combination fitting here?
Use it when the junction needs both a tee branch and a crossover path, so the intersection can stay in one organized fitting.
What pipe size does this version fit?
This version fits 42.4 mm OD, 1-1/4" Sch. 40 pipe, commonly used as 1-1/4" nominal Schedule 40 pipe.
