KPC-065B -Combination socket tee / crossover (Black)

Name: KPC-065B -Combination socket tee / crossover (Black)
Brand: KUPO Stage

1 2

Product Description

Overview

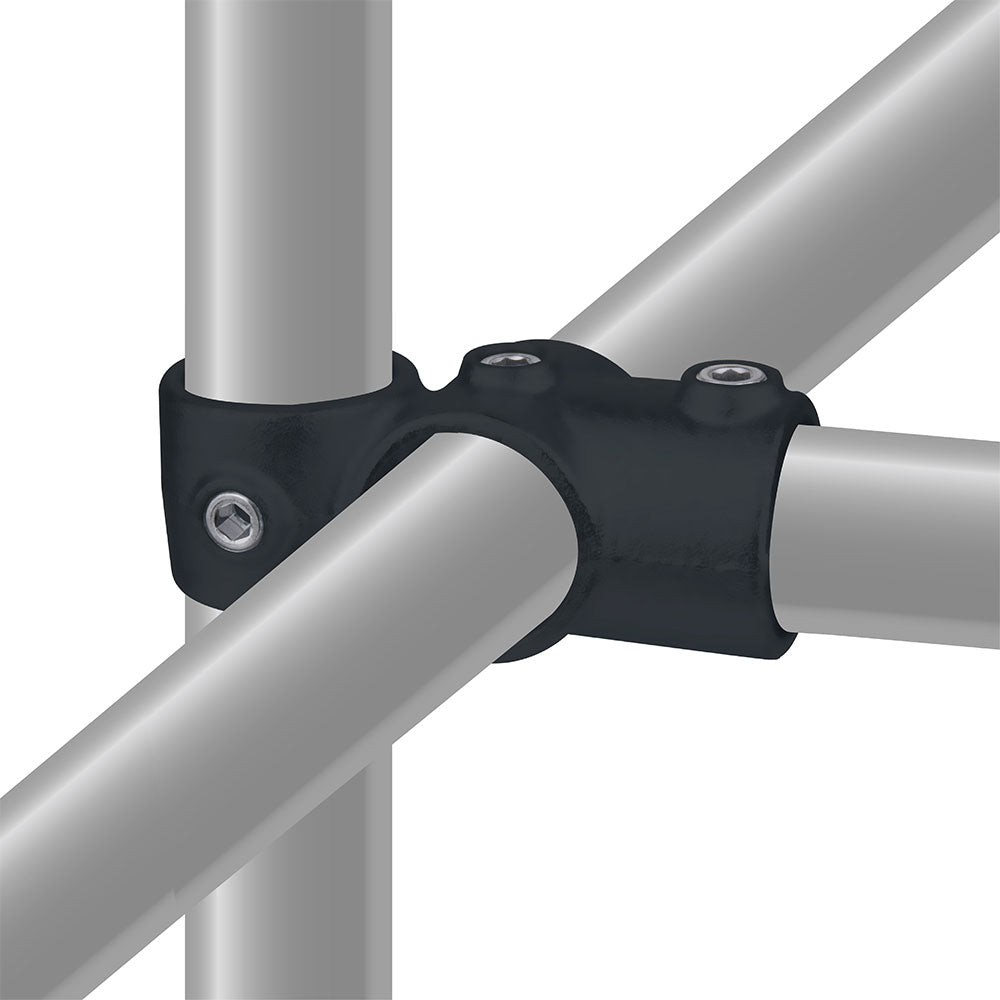

The KPC-065B Combination socket tee / crossover is a bolt-on malleable iron fitting for 42.4 mm OD, 1-1/4" Sch. 40 pipe. It combines a tee branch and crossover bypass in one fitting for multi-pipe intersections, using stainless steel hex screws to lock the pipe without welding so frame, rail, and display structures can be assembled and revised on site.

Why It Matters

The black finish helps visible pipe frames sit quieter in scenic, retail, and event environments. Functionally, the fitting still carries the corrosion-resistant pipe clamp construction and bolt-on serviceability crews expect.

Key Features

Combination body provides both a socket tee branch and a crossover path in a single fitting.
Malleable iron casting per ASTM A197 provides a durable body for tubular structures.
ASTM A153 hot dip galvanized treatment plus zinc plating supports corrosion resistance for demanding environments.
Stainless steel hex screws lock the pipe firmly without welding, helping crews build and rework faster.

Applications

Designed for complex pipe grids, retail display frameworks, exhibition structures, scenic builds, guardrail details, and multi-run intersections where a tee and crossover meet in the same spot.

Compatibility

Fits 42.4 mm OD, 1-1/4" Sch. 40 pipe; related sister fittings cover the alternate KUPO pipe clamp diameter.

Frequently Asked Questions

Does this fitting require welding?

No. It locks the pipe with stainless steel hex screws, so the structure remains bolt-on and easier to reconfigure.

Why use a combination fitting here?

Use it when the junction needs both a tee branch and a crossover path, so the intersection can stay in one organized fitting.

What pipe size does this version fit?

This version fits 42.4 mm OD, 1-1/4" Sch. 40 pipe, commonly used as 1-1/4" nominal Schedule 40 pipe.
