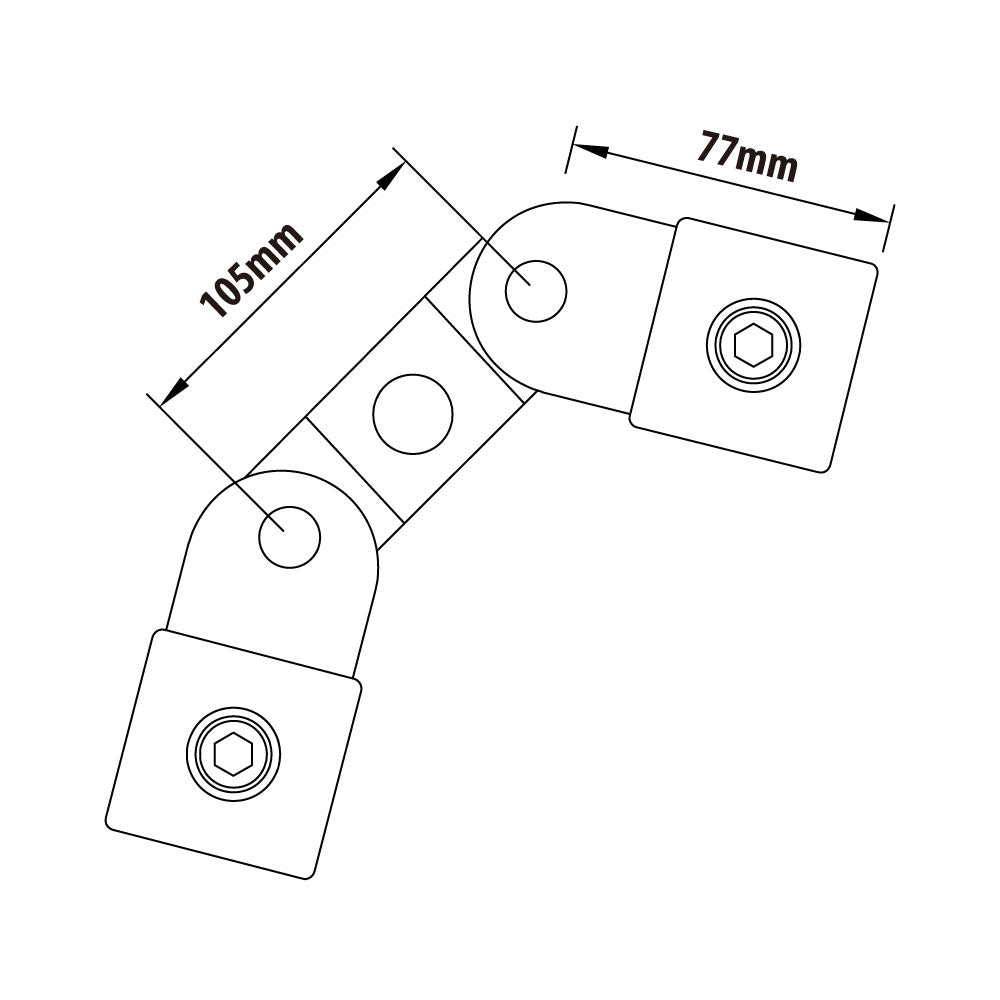

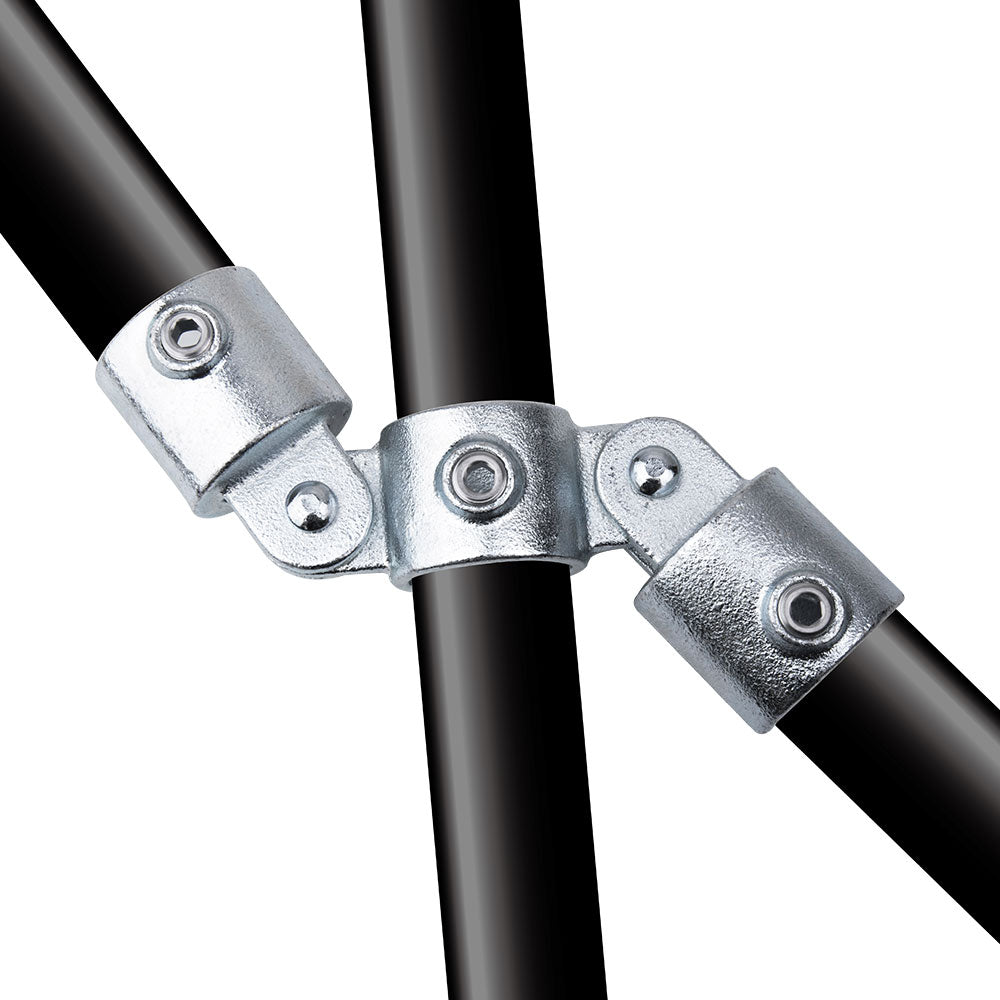

The KPC-067 Pipe Clamp Double Swivel Combination is a bolt-on malleable iron fitting for 42.4 mm OD, 1-1/4" Sch. 40 pipe. It provides two swivel joints in one body for compound-angle bracing, using internal or stainless steel hex screws to lock the pipe without welding so the structure can be assembled, adjusted, and serviced on site.
Why It Matters
Compound bracing rarely lands on a perfect square. This fitting gives two adjustable joints in one part, so irregular frames can be set without custom welded pieces.
Key Features
Two swivel joints handle compound-angle braces and non-square structural geometry.
ASTM A197 casting gives the fitting a durable body for modular tubular structures.
Hot dip galvanized surface treatment supports corrosion resistance for indoor and outdoor service.
No-weld installation lets crews revise frames, rails, and display structures without cutting pipe apart.
Applications
Use for diagonal stays, irregular display frames, scenic pipework, platform supports, and structures where two adjustable pipe angles meet.
Compatibility
Fits 42.4 mm OD, 1-1/4" Sch. 40 pipe; related sister fittings cover the alternate KUPO pipe clamp diameter.
Frequently Asked Questions
Does this fitting need welding?
No. It clamps with hex screws, so the structure remains bolt-on and easier to reconfigure.
What makes this different from a single swivel?
It gives two swivel joints, which helps when the brace needs compound angle adjustment instead of a single pivot.
Which pipe size does this version fit?
This version fits 42.4 mm OD, 1-1/4" Sch. 40 pipe; check the sister size if your structure uses the other KUPO pipe clamp diameter.
