Overview

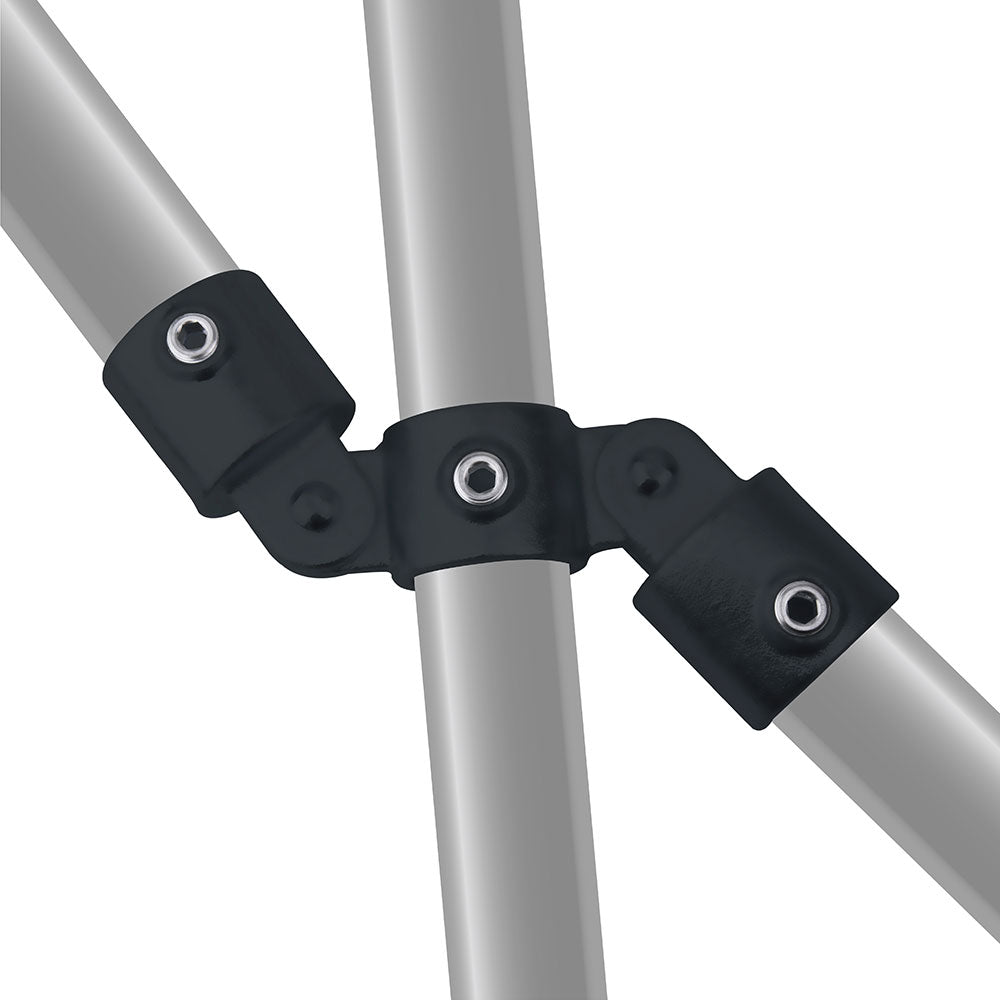

The KPC-067B Pipe Clamp Double Swivel Combination is a bolt-on malleable iron fitting for 42.4 mm OD, 1-1/4" Sch. 40 pipe. It provides two swivel joints in one body for compound-angle bracing, using stainless steel hex screws to lock the pipe without welding so frame, rail, and display structures can be assembled and revised on site.
Why It Matters
The black finish helps visible pipe frames sit quieter in scenic, retail, and event environments. Functionally, the fitting still carries the corrosion-resistant pipe clamp construction and bolt-on serviceability crews expect.
Key Features
- Two swivel joints in one fitting support compound-angle braces and non-square structures.
- Malleable iron casting per ASTM A197 provides a durable body for tubular structures.
- ASTM A153 hot dip galvanized treatment plus zinc plating supports corrosion resistance for demanding environments.
- Stainless steel hex screws lock the pipe firmly without welding, helping crews build and rework faster.
Applications
Useful for diagonal bracing, stays, irregular frames, scenic structures, custom display builds, platform supports, and pipe systems where two adjustable angles meet at one fitting.
Compatibility
Fits 42.4 mm OD, 1-1/4" Sch. 40 pipe; related sister fittings cover the alternate KUPO pipe clamp diameter.
