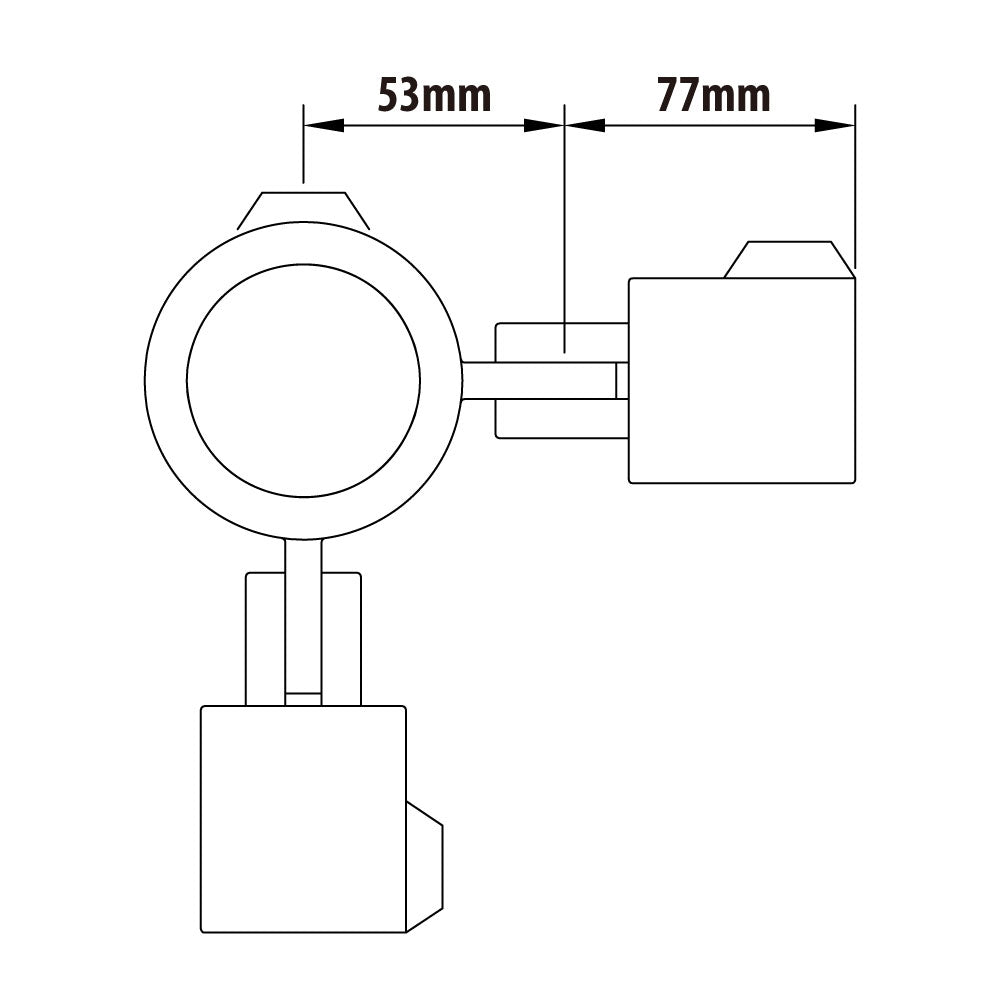

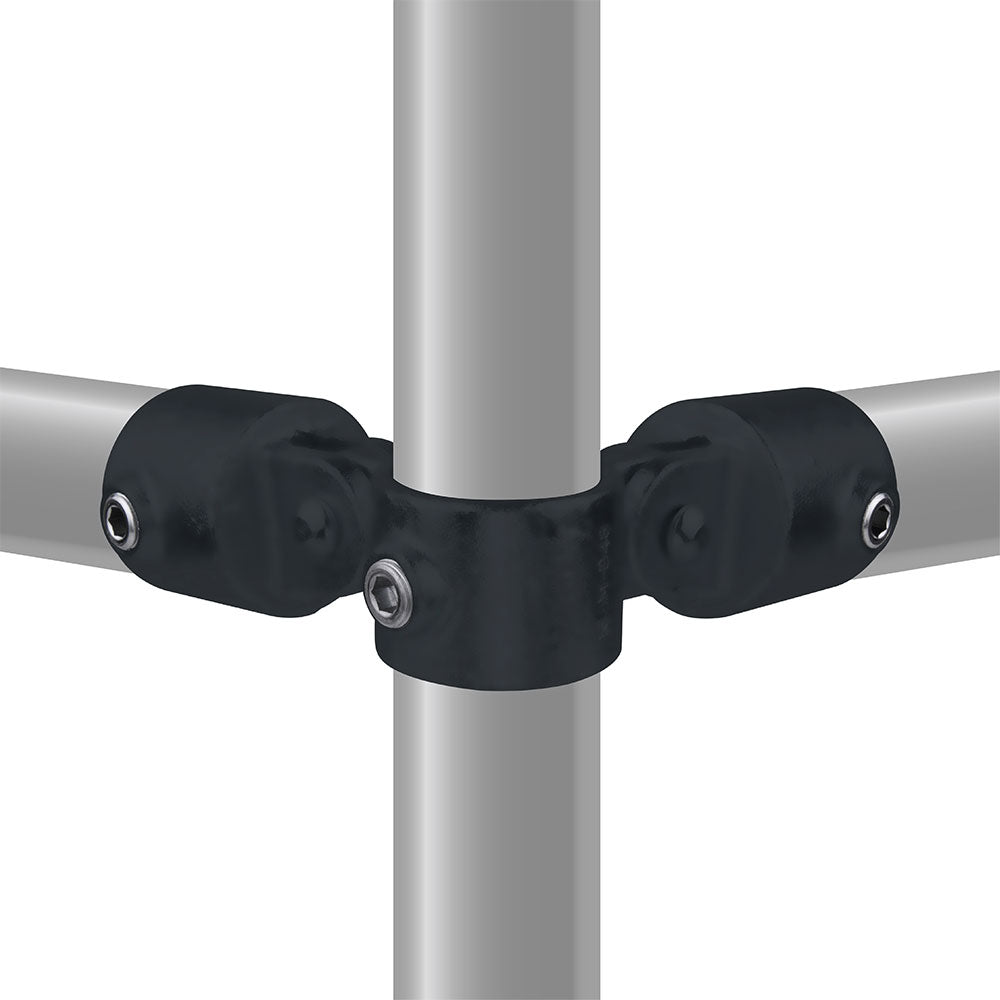

The KPC-068B Pipe Clamp 90? Corner Swivel is a bolt-on malleable iron fitting for 42.4 mm OD, 1-1/4" Sch. 40 pipe. It forms a right-angle corner with a swiveling joint for braced corners, using internal or stainless steel hex screws to lock the pipe without welding so the structure can be assembled, adjusted, and serviced on site.
Why It Matters
The black finish helps visible pipe structures sit quieter in scenic, retail, and event environments while keeping the same bolt-on pipe clamp function.
Key Features
Right-angle corner layout with swivel adjustment supports braced frame corners.
ASTM A197 casting gives the fitting a durable body for modular tubular structures.
Hot dip galvanized surface treatment supports corrosion resistance for indoor and outdoor service.
No-weld installation lets crews revise frames, rails, and display structures without cutting pipe apart.
Applications
Use for braced corners, angled frame returns, scenic structures, guardrails, retail pipe frames, and display builds with square corners plus diagonal support.
Compatibility
Fits 42.4 mm OD, 1-1/4" Sch. 40 pipe; related sister fittings cover the alternate KUPO pipe clamp diameter.
Frequently Asked Questions
Does this fitting need welding?
No. It clamps with hex screws, so the structure remains bolt-on and easier to reconfigure.
Why use a corner swivel instead of a fixed corner?
Use it when the corner needs a right-angle relationship but one connected member must still swivel for bracing or site geometry.
Which pipe size does this version fit?
This version fits 42.4 mm OD, 1-1/4" Sch. 40 pipe; check the sister size if your structure uses the other KUPO pipe clamp diameter.
