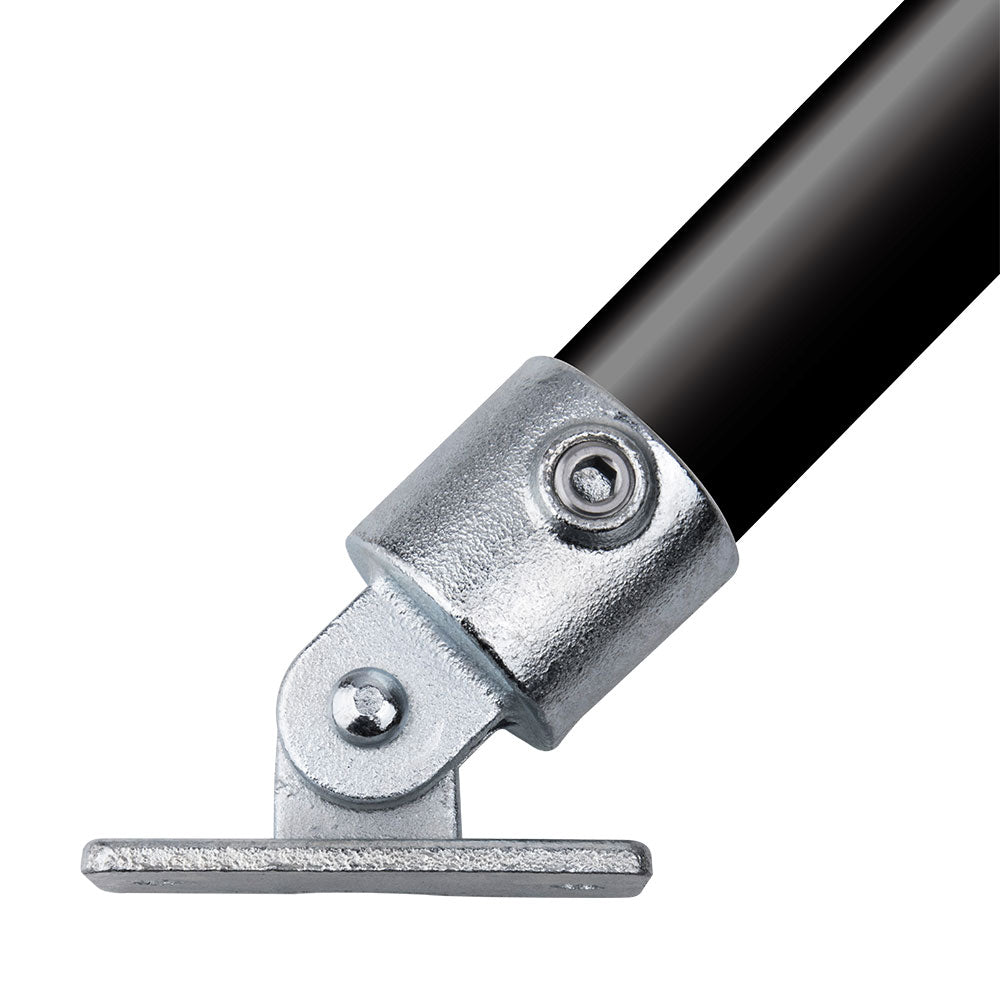

The KPC-069 Pipe Clamp Swivel Base is a bolt-on malleable iron fitting for 42.4 mm OD, 1-1/4" Sch. 40 pipe. It connects 42.4 mm outside diameter pipe to a flat mounting surface with up to 85° of angle adjustment from vertical, using internal or stainless steel hex screws to lock the pipe without welding so the structure can be assembled, adjusted, and serviced on site.
Why It Matters
Flat surfaces are easy until the pipe has to leave at an angle. The swivel base gives the pipe a mounted foot and the freedom to meet the structure where it actually lands.
Key Features
Swivel base supports up to 85° of angle adjustment from vertical for angled pipe starts.
ASTM A197 casting gives the fitting a durable body for modular tubular structures.
Hot dip galvanized surface treatment supports corrosion resistance for indoor and outdoor service.
No-weld installation lets crews revise frames, rails, and display structures without cutting pipe apart.
Applications
Use for angled posts, wall-mounted pipe runs, deck-mounted supports, retail display frames, guardrails, set construction, and modular pipe structures.
Compatibility
Fits 42.4 mm OD, 1-1/4" Sch. 40 pipe; related sister fittings cover the alternate KUPO pipe clamp diameter.
Frequently Asked Questions
Does this fitting need welding?
No. It clamps with hex screws, so the structure remains bolt-on and easier to reconfigure.
Can the pipe leave the base at an angle?
Yes. The swivel base supports up to 85° of adjustment from vertical before it is locked in position.
Which pipe size does this version fit?
This version fits 42.4 mm OD, 1-1/4" Sch. 40 pipe; check the sister size if your structure uses the other KUPO pipe clamp diameter.
