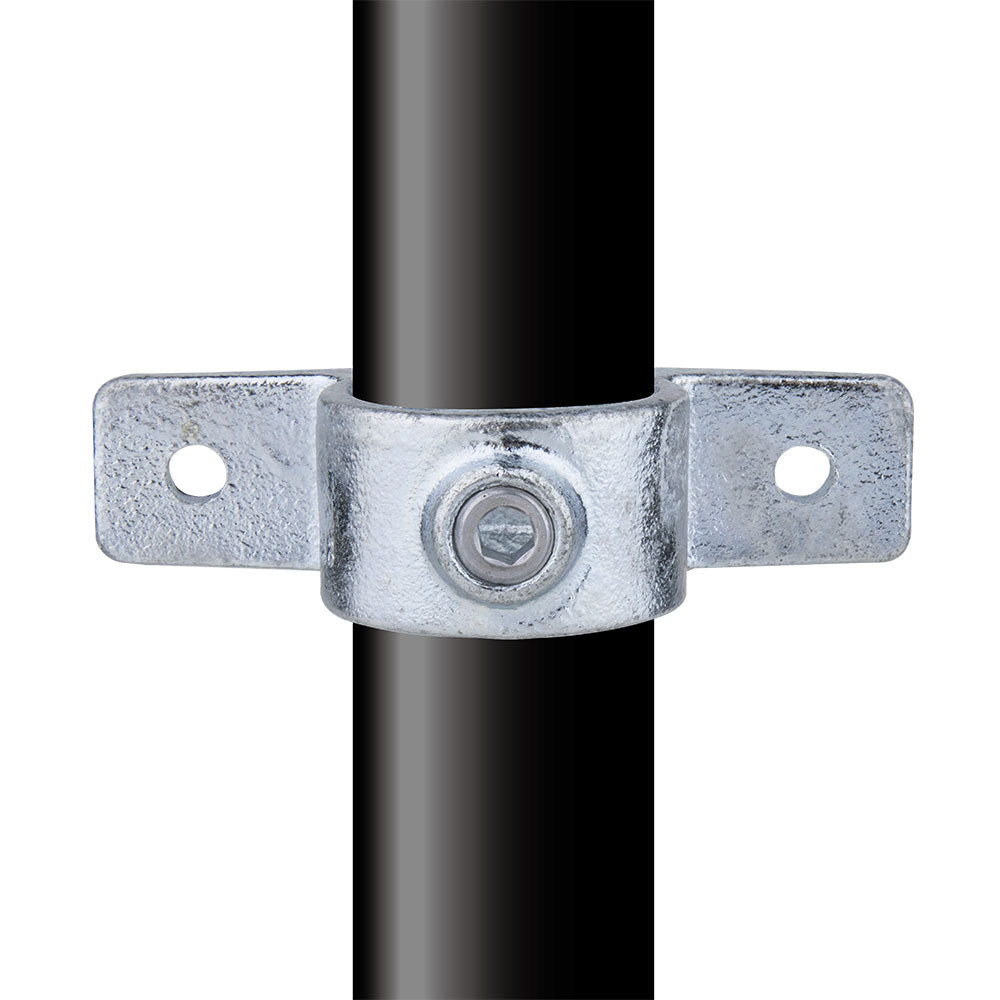

• KPC-098 - Pipe Clamp Double Side Fixing Bracket (Silver) installed pipe clamp view

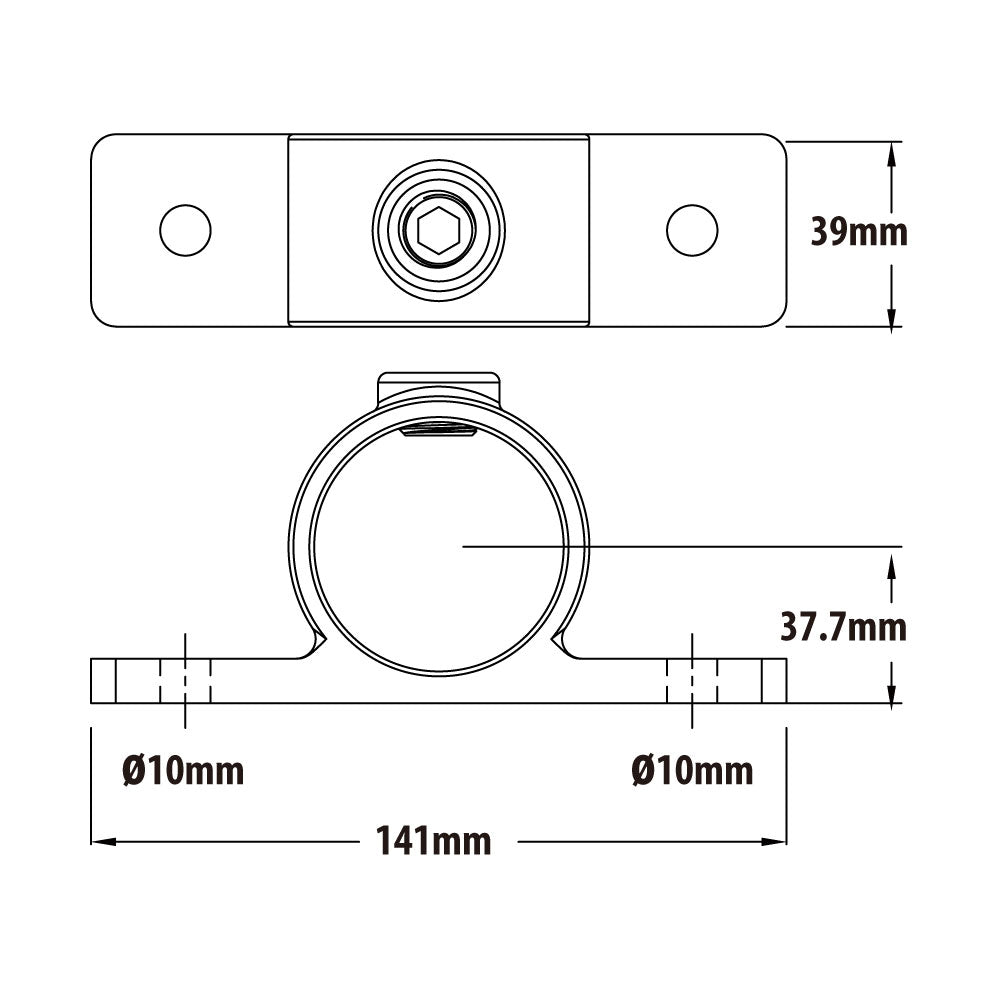

  • KPC-098 - Pipe Clamp Double Side Fixing Bracket (Silver) dimension diagram
1 2
View full details

Product Description

Overview

The KPC-098 Pipe Clamp Double Side Fixing Bracket is a bolt-on malleable iron fitting for 42.4 mm OD, 1-1/4" Sch. 40 pipe. It secures pipe near-flush against a wall, panel, post, or shelf board, using internal or stainless steel hex screws to lock the pipe without welding so the structure can be assembled, adjusted, and serviced on site.

Why It Matters

Sometimes the pipe is the support and sometimes the pipe needs to be supported. This bracket creates a close side fixing point for walls, boards, and panels without fabrication.

Key Features

  • Two side ears anchor the bracket while internal hex screws clamp the pipe in a near-flush mount.
  • ASTM A197 casting gives the fitting a durable body for modular tubular structures.
  • Hot dip galvanized surface treatment supports corrosion resistance for indoor and outdoor service.
  • No-weld installation lets crews revise frames, rails, and display structures without cutting pipe apart.

Applications

Use for wall-mounted pipe, shelf boards, retail display scaffolding, signage frames, industrial guardrails, and modular set construction.

Compatibility

Fits 42.4 mm OD, 1-1/4" Sch. 40 pipe; related sister fittings cover the alternate KUPO pipe clamp diameter.

Frequently Asked Questions

Does this fitting need welding?

No. It clamps with hex screws, so the structure remains bolt-on and easier to reconfigure.

Can it fasten a board or shelf to pipe?

Yes. It can secure a pipe near a surface and can also help fasten wood boards or shelves to a horizontal pipe.

Which pipe size does this version fit?

This version fits 42.4 mm OD, 1-1/4" Sch. 40 pipe; check the sister size if your structure uses the other KUPO pipe clamp diameter.
