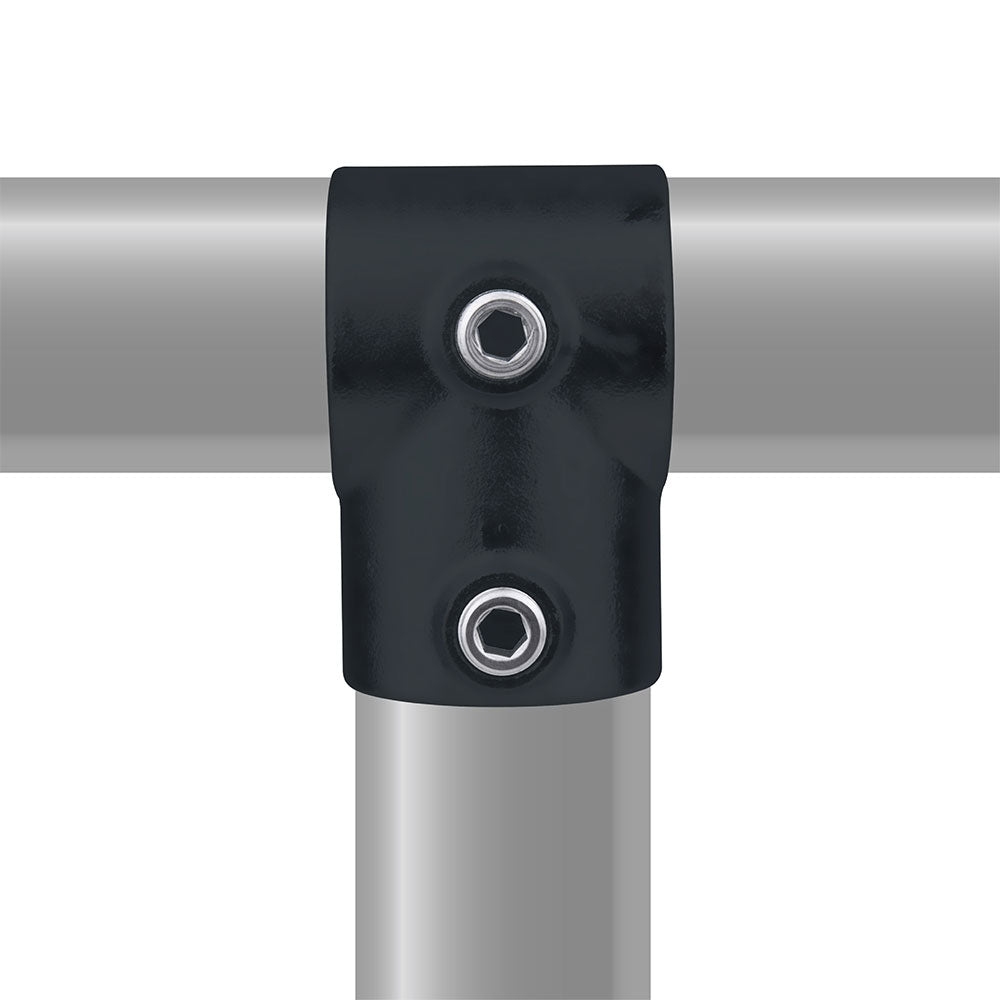

• KPC-101B - Pipe Clamp Short Tee (Black) installed pipe clamp view

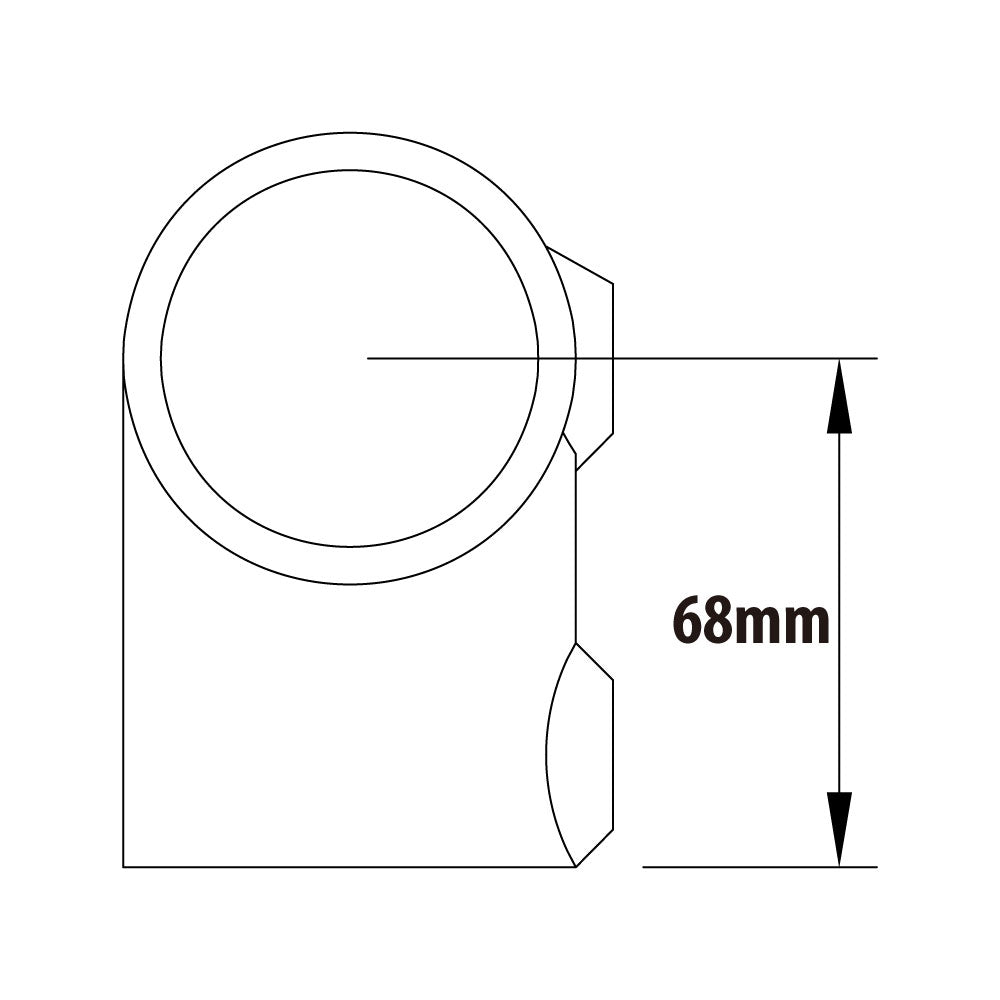

  • KPC-101B - Pipe Clamp Short Tee (Black) dimension diagram
1 2
View full details

Product Description

Overview

The KPC-101B Pipe Clamp Short Tee is a bolt-on malleable iron fitting for 48.3 mm OD, 1-1/2" Sch. 40 pipe. It branches a perpendicular pipe from the main run with a tight, low-profile tee junction, using internal or stainless steel hex screws to lock the pipe without welding so the structure can be assembled, adjusted, and serviced on site.

Why It Matters

The black finish helps visible pipe structures sit quieter in scenic, retail, and event environments while keeping the same bolt-on pipe clamp function.

Key Features

  • Short tee geometry creates a compact perpendicular branch from the main pipe.
  • ASTM A197 casting gives the fitting a durable body for modular tubular structures.
  • Hot dip galvanized surface treatment supports corrosion resistance for indoor and outdoor service.
  • No-weld installation lets crews revise frames, rails, and display structures without cutting pipe apart.

Applications

Use for compact frame branches, rail connections, display structures, retail pipework, scenic builds, and modular pipe systems using 48.3 mm tube.

Compatibility

Fits 48.3 mm OD, 1-1/2" Sch. 40 pipe; related sister fittings cover the alternate KUPO pipe clamp diameter.

Frequently Asked Questions

Does this fitting need welding?

No. It clamps with hex screws, so the structure remains bolt-on and easier to reconfigure.

Why choose the short tee?

Choose it when the branch pipe should sit close to the main run with minimal offset.

Which pipe size does this version fit?

This version fits 48.3 mm OD, 1-1/2" Sch. 40 pipe; check the sister size if your structure uses the other KUPO pipe clamp diameter.
