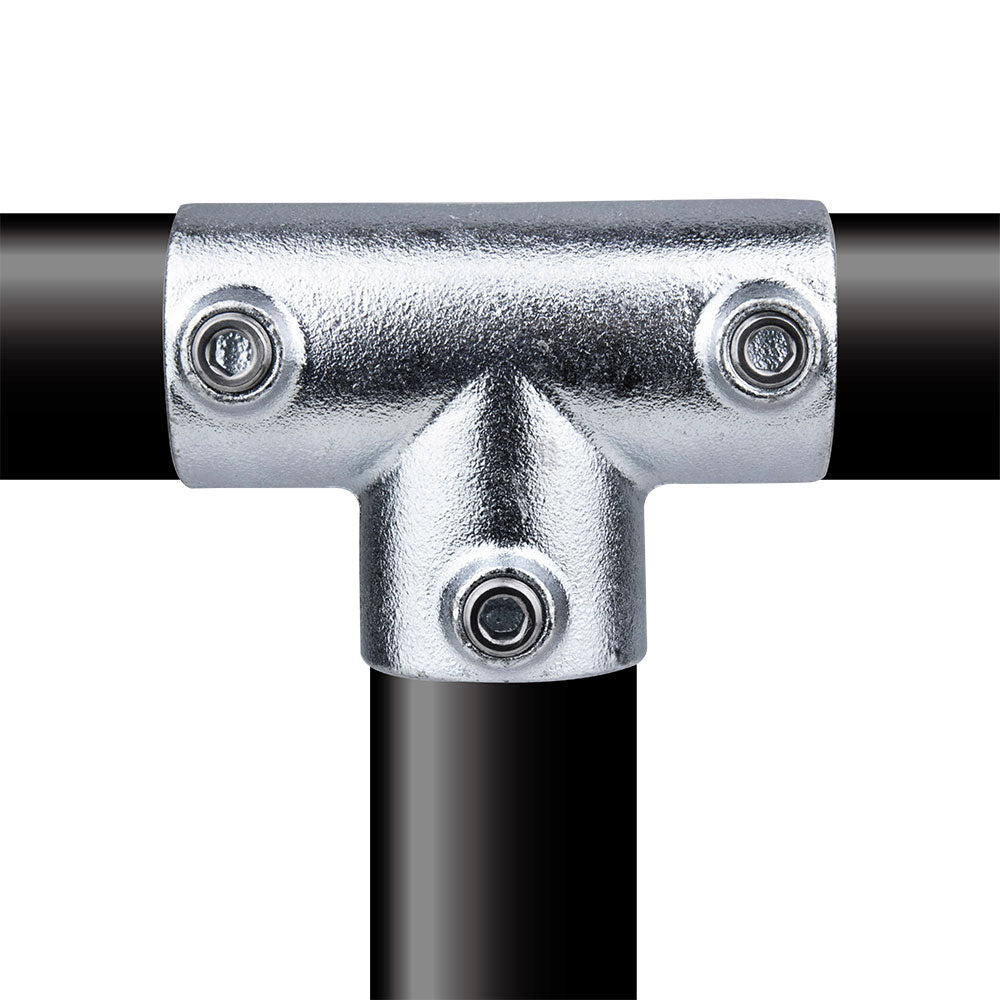

The KPC-104 Pipe Clamp Long Tee is a bolt-on malleable iron fitting for 48.3 mm OD, 1-1/2" Sch. 40 pipe. It branches a perpendicular pipe with extra clearance off the main run, using internal or stainless steel hex screws to lock the pipe without welding so the structure can be assembled, adjusted, and serviced on site.
Why It Matters
Some branches need room for fittings, taps, or adjacent hardware. The long tee gives that offset while keeping the same bolt-on pipe clamp workflow.
Key Features
Long tee geometry provides extra clearance between the main run and perpendicular branch.
ASTM A197 casting gives the fitting a durable body for modular tubular structures.
Hot dip galvanized surface treatment supports corrosion resistance for indoor and outdoor service.
No-weld installation lets crews revise frames, rails, and display structures without cutting pipe apart.
Applications
Use for pipe branches that need extra offset, display frames, rail systems, scenic structures, modular supports, and 48.3 mm tube builds with hardware clearance needs.
Compatibility
Fits 48.3 mm OD, 1-1/2" Sch. 40 pipe; related sister fittings cover the alternate KUPO pipe clamp diameter.
Frequently Asked Questions
Does this fitting need welding?
No. It clamps with hex screws, so the structure remains bolt-on and easier to reconfigure.
Why choose the long tee instead of the short tee?
Choose the long tee when the branch or nearby attachment needs extra clearance from the main run.
Which pipe size does this version fit?
This version fits 48.3 mm OD, 1-1/2" Sch. 40 pipe; check the sister size if your structure uses the other KUPO pipe clamp diameter.
