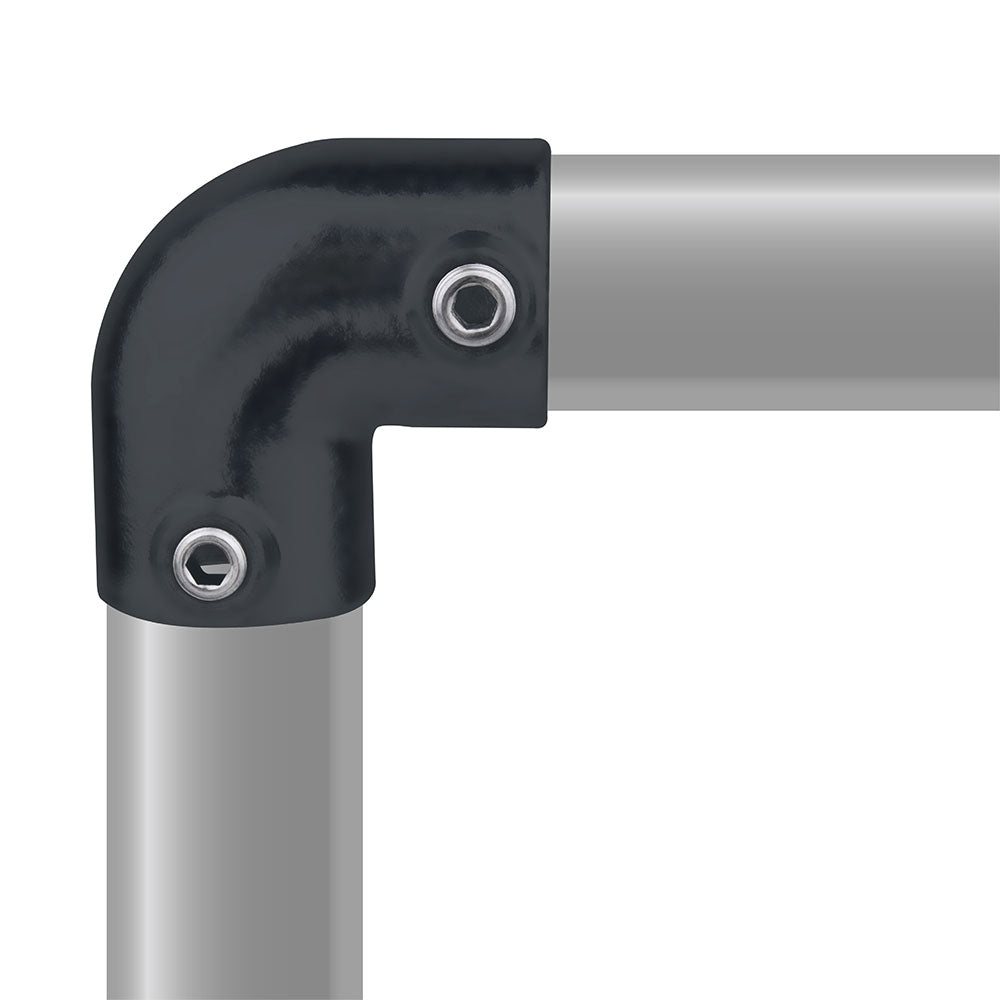

The KPC-125B Pipe Clamp 90° Elbow is a 100-series bolt-on fitting for 48.3 mm OD, 1-1/2" Sch. 40 pipe. It turns a pipe run cleanly through a right-angle corner, using stainless steel hex screws to lock the pipe without welding so smaller-format rail, display, and frame structures can be assembled and reconfigured on site.
Why It Matters
The black finish helps visible pipework settle into scenic, retail, and event environments while keeping the same no-weld pipe clamp workflow.
Key Features
Right-angle elbow geometry turns one 48.3 mm outside diameter pipe run into another for clean frame corners.
Malleable iron casting per ASTM A197 provides a durable body for modular tubular structures.
ASTM A153 hot dip galvanized treatment plus zinc plating supports corrosion resistance in demanding environments.
Stainless steel hex screws lock the pipe without welding, helping crews assemble and revise frames cleanly.
Applications
A practical fitting for rectangular display frames, handrail returns, booth structures, scenic borders, retail pipework, and lighter pipe runs that need a 90° corner.
Compatibility
Fits 48.3 mm OD, 1-1/2" Sch. 40 pipe; related sister fittings cover the alternate KUPO pipe clamp diameter.
Frequently Asked Questions
Does this fitting need welding?
No. It locks the pipe with stainless steel hex screws, keeping the structure bolt-on and easier to revise.
Can this make a rectangular frame corner?
Yes. It is meant for clean 90-degree turns where two 48.3 mm OD, 1-1/2" Sch. 40 pipe ends meet at a corner.
What pipe size does this version fit?
This 100-series version fits 48.3 mm OD, 1-1/2" Sch. 40 pipe, also described as 1-1/2" nominal Schedule 40 pipe.
